Compact three-phase servo drive rated 0.75 kW at 400 V.

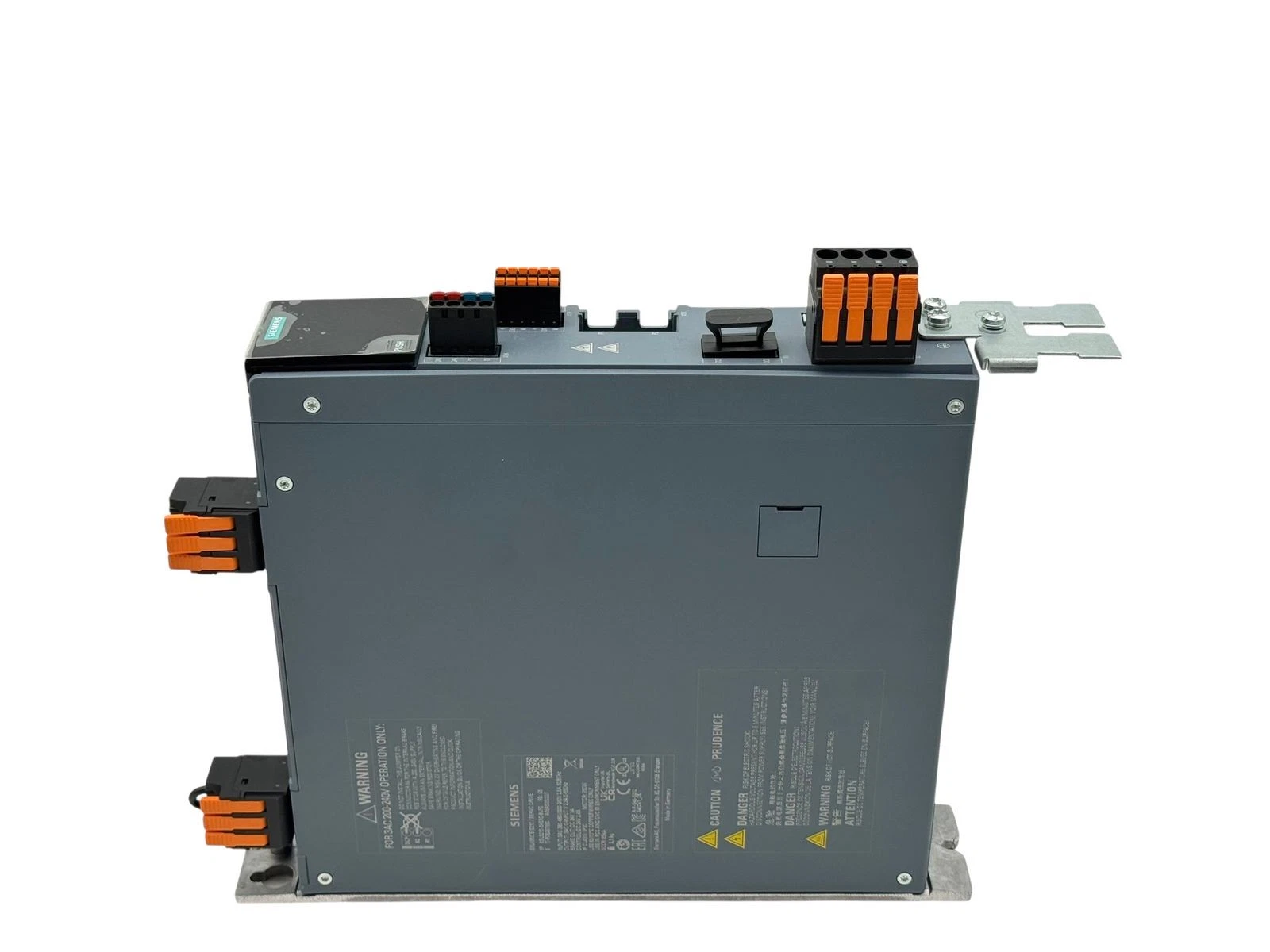

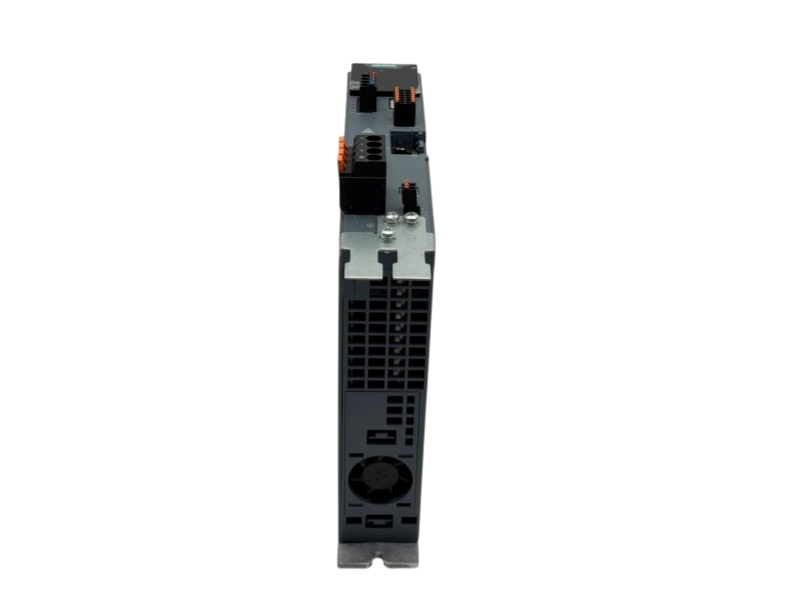

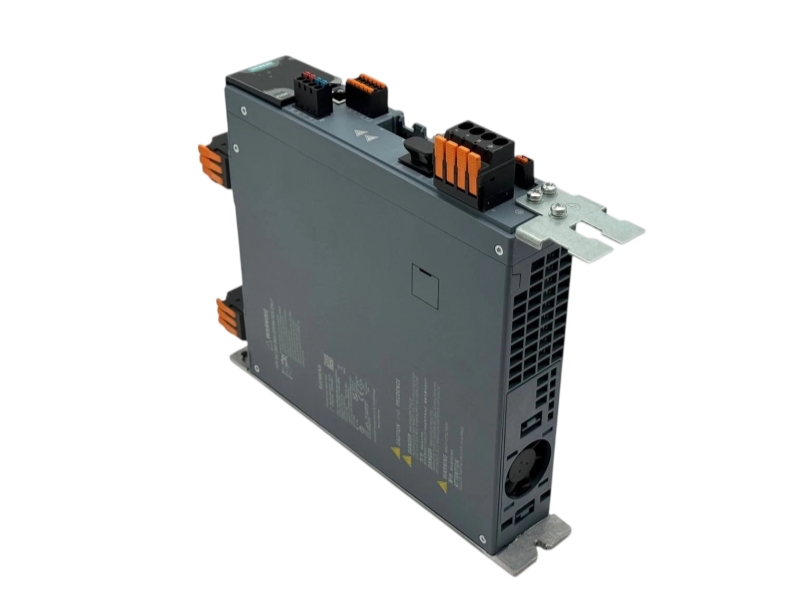

Siemens 6SL3210-5HE10-8UF0 is a SINAMICS S210 servo drive for three-phase motion-control applications. Siemens data identifies a 200 to 480 V AC input, 0.75 kW rated power at 400 V, 2.3 A rated output current, and a 0 to 550 Hz servo-control output frequency. The drive uses frame size FSA, vertical wall mounting, IP20 protection, and push-in spring terminals. It also provides standard and fail-safe digital inputs for control and safety functions. Replacement planning should compare the complete order code, motor data, mains voltage, connectors, braking arrangement, firmware, safety configuration, mounting clearances, and project parameters.
| Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6SL3210-5HE10-8UF0 |
| Product Type | Servo drive |
| Product Family | SINAMICS S210 |
| Input | 3-phase AC, 200 to 480 V ±10% |
| Line Frequency | 45 to 66 Hz |
| Rated Input Current | 2.8 A |
| Rated Power at 400 V | 0.75 kW |
| Rated Power at 240 V | 0.45 kW |
| Rated Output Current | 2.3 A |
| Maximum Output Current | 7.6 A |
| Output Frequency | 0 to 550 Hz for servo control |
| Pulse Frequency | 8 kHz |
| Standard Digital Inputs | 5, including 2 usable for F-DI |
| Fail-Safe Digital Inputs | 1, usable only for STO or SS1 |
| Degree of Protection | IP20 / UL open type |
| Frame Size | FSA |
| Mounting | Vertical wall mounting |
| Connections | Push-in spring-type terminals |
| Net Weight | 2.10 kg |
| Country of Origin | Germany |
| Area | Application Guidance |
|---|---|
| Drive System | SINAMICS S210 servo systems using the exact 6SL3210-5HE10-8UF0 order code. |
| System Role | Controls a compatible servo motor in dynamic positioning, speed and motion-control applications. |
| Typical Applications | Packaging, handling, assembly and machine-axis automation with suitable motor and project configuration. |
| Replacement Guidance | Match mains voltage, motor data, power rating, connectors, braking circuit, firmware, safety settings and mounting. |
It identifies a Siemens SINAMICS S210 servo drive with frame size FSA.
Siemens specifies a 3-phase 200 to 480 V AC input and 0.75 kW rated power at 400 V.
The data sheet lists five standard digital inputs, including two usable for fail-safe input, plus one fail-safe input for STO or SS1.
The official data specifies vertical wall mounting, IP20 protection and push-in spring-type terminals.
The reviewed Siemens data sheet does not state a lifecycle classification for this exact order code.
Compare mains voltage, motor data, connectors, braking arrangement, firmware, safety configuration, mounting and project parameters.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical order review for 6SL3210-5HE10-8UF0, from article verification through shipment follow-up.
| Service Stage | What We Review |
|---|---|
| Identification | Complete model and suffix, manufacturer label, revision details and visible configuration. |
| Condition | Drive housing, Siemens label, line and motor terminals, DC-link area, control connectors and packaging are reviewed visually. |
| Technical Review | Mains supply, motor rating, power data, connectors, braking arrangement, firmware, safety functions and project parameters are compared. |
| Order Documentation | Commercial terms, written warranty terms, packing details and customs documentation. |
| Logistics | Protective packaging, worldwide shipping coordination and shipment tracking. |
| After-Sales | After-sales response, documented issue review and return authorization process. |
We compare the full order code, suffix and label information with the purchasing request.
Condition, technical data and product photographs are reviewed before compatibility decisions.
Protective packing, shipping documents, tracking and after-sales contacts are coordinated after order review.
Product labels and visible identifiers are checked against the requested order code.
Technical documentation and installed system details are compared during compatibility review.
Visible condition and packing readiness are reviewed before protective packaging is arranged.
Look for complete article-code verification, consistent technical descriptions, clear condition evidence, written commercial terms and a documented after-sales process.
Review the quotation, full part number, label photographs, condition statement, packing scope, warranty terms, shipping documents, customs information and return authorization rules.
Engineers should compare the complete suffix, hardware or firmware revision, power arrangement, interfaces, connectors, mounting and installed project details.
Warning signs include an incomplete model, refusal to provide nameplate images, conflicting specifications, unclear condition, unsupported delivery promises or no stated return process.
