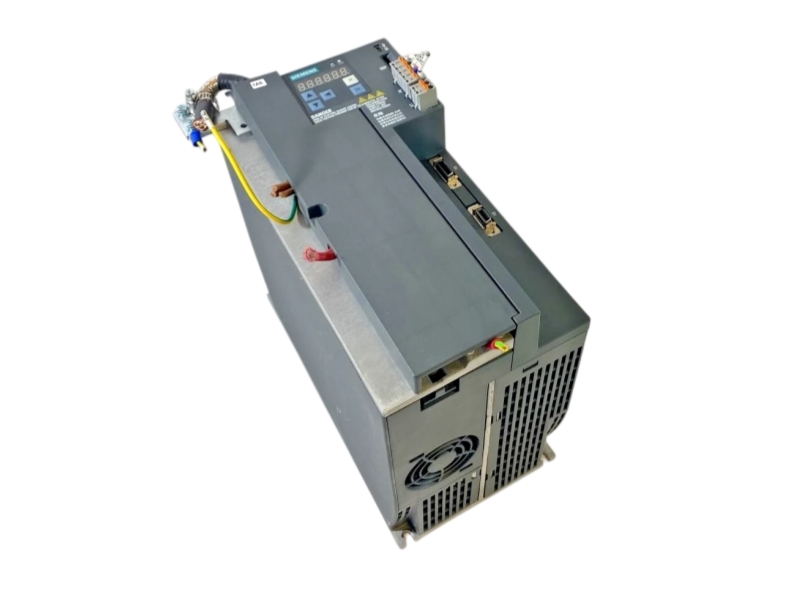

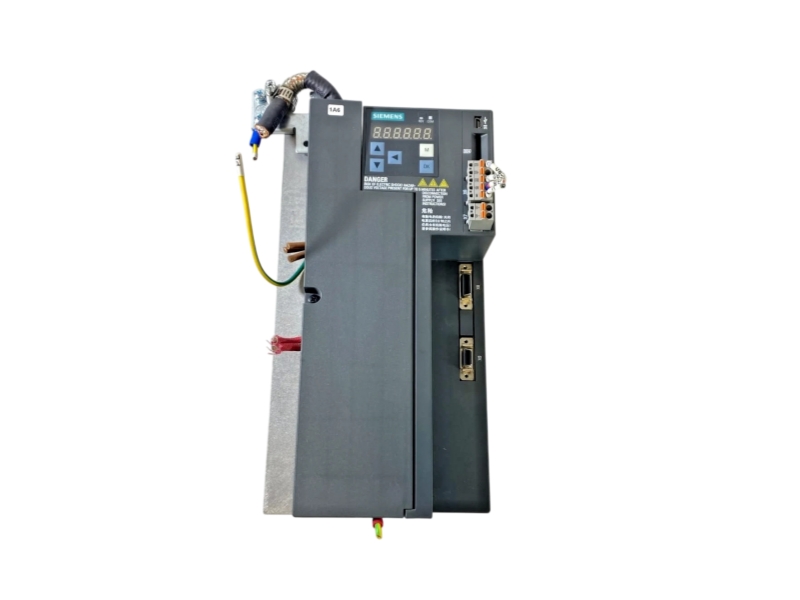

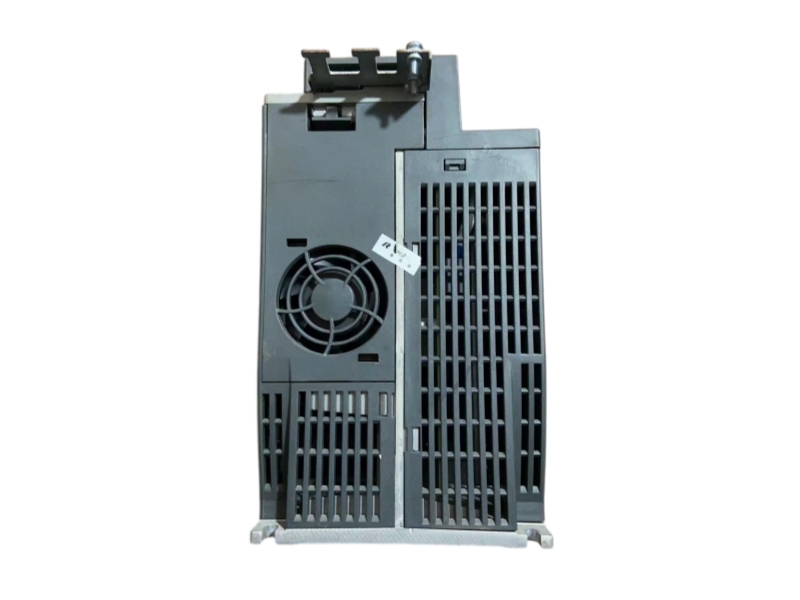

5.0 kW SINAMICS V90 servo drive with PROFINET communication for precise industrial motion-control applications.
Siemens 6SL3210-5FE15-0UF0 is a SINAMICS V90 servo drive with integrated PROFINET communication. It is designed for three-phase 380–480 V AC supply and supports a 5.0 kW motor rating.
The drive provides a rated output current of 12.6 A, a maximum output current of 37.8 A and an output frequency range up to 330 Hz. Its FSC enclosure combines compact cabinet installation with fan cooling and IP20 / UL open-type protection.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6SL3210-5FE15-0UF0 |
| Official designation | SINAMICS V90 servo drive with PROFINET |
| Product family | SINAMICS V90 servo drive |
| Product lifecycle | PM300: Active Product |
| Rated motor power | 5.00 kW |
| Parameter | Specification |
|---|---|
| Input phases | 3 AC |
| Line voltage | 380–480 V, +10% / −15% |
| Rated input current | 15.8 A |
| Line frequency | 45–66 Hz |
| Rated output power | 5.00 kW |
| Rated output current | 12.60 A |
| Maximum output current | 37.80 A |
| Output frequency | 0–330 Hz |
| Communication | PROFINET |
| Standard digital inputs | 4 |
| Digital outputs | 2 |
| Degree of protection | IP20 / UL open type |
| Frame size | FSC |
| Cooling | Fan |
| Operating temperature | 0–45 °C |
| Storage temperature | −40–70 °C |
| Installation altitude | Up to 1,000 m |
| Maximum operating relative humidity | 90% |
| Dimensions (W × H × D) | 140 × 260 × 240 mm |
| Net weight | 5.65 kg |
| Standards | CE, KC, cULus, EAC and RCM |
| Application | Practical use |
|---|---|
| Machine positioning | Provides servo control for repeatable positioning and coordinated machine sequences. |
| Packaging and handling equipment | Supports precise speed and position control for conveyors, feeders and packaging mechanisms. |
| PROFINET automation | Integrates with compatible PROFINET controllers for command, status and diagnostic exchange. |
| Cabinet-mounted motion systems | FSC format and fan cooling support installation in engineered control cabinets. |
Siemens lists 6SL3210-5FE15-0UF0 as PM300: Active Product. Procurement should still confirm the complete order number, required accessories, motor pairing, software compatibility and supplied warranty terms.
It is a 5.0 kW SINAMICS V90 servo drive with PROFINET communication for industrial motion control.
Siemens specifies a three-phase 380–480 V AC supply with a +10% / −15% voltage tolerance and 45–66 Hz line frequency.
The rated output current is 12.60 A and the maximum output current is 37.80 A.
The drive measures 140 × 260 × 240 mm and has a technical-data net weight of 5.65 kg.
Confirm the exact drive code, motor and encoder pairing, power supply, cables, PROFINET configuration, firmware and commissioning parameters.
Send the exact part number, required quantity and destination for availability, compatibility, delivery and warranty checks.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical support from exact-model identification and compatibility review through inspection, packing and international delivery.
Our office team checks the complete order code, quantity, destination and documentation requirements before sourcing begins.
Received items are checked for model marking, housing condition, connector integrity and traceability before packing.
Protective packing is selected for the equipment type, route and delivery method, with shipment tracking arranged for global destinations.
| Stage | What We Check | Customer Value |
|---|---|---|
| 1. Identification | Manufacturer, complete part number, suffix and nameplate details | Reduces incorrect-model risk |
| 2. Compatibility review | Installed power supply, motor rating, PROFINET network, control configuration, firmware and commissioning software | Supports informed replacement decisions |
| 3. Supply verification | Available condition, quantity, lead time and warranty basis | Clarifies commercial expectations |
| 4. Inspection and packing | Markings, visible condition, connectors, packing and dispatch records | Improves delivery traceability |
Share the required quantity, destination, motor data, supply voltage, PROFINET configuration and cable requirements. We will check availability, compatibility, global delivery options and applicable warranty terms.
