Direct DC-link infeed adapter for compatible SINAMICS Booksize line and motor modules.

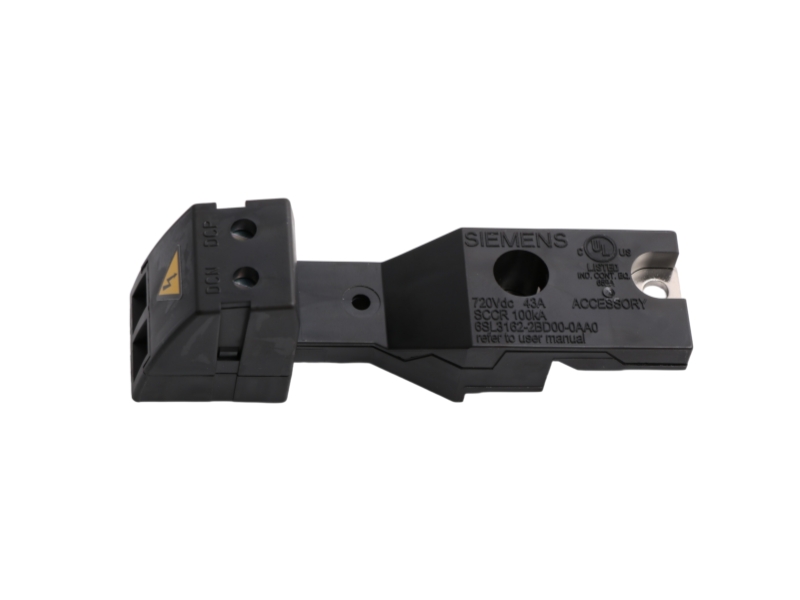

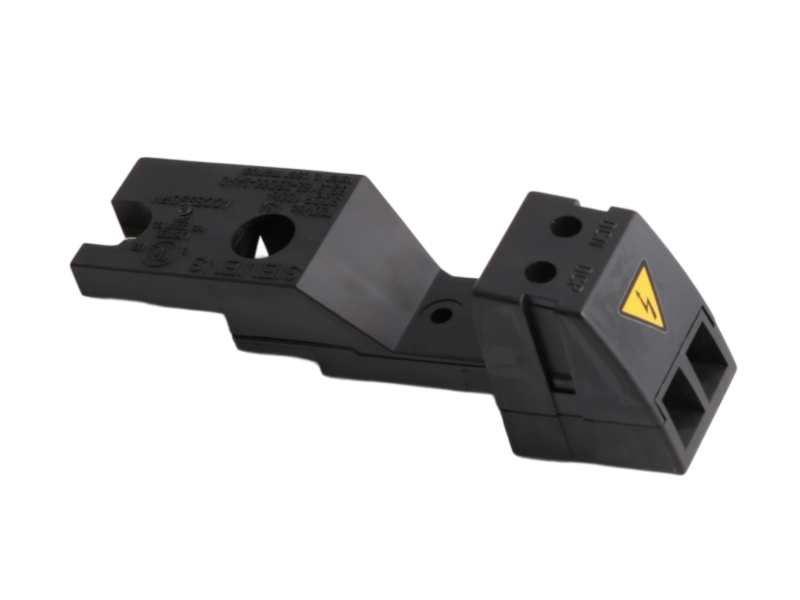

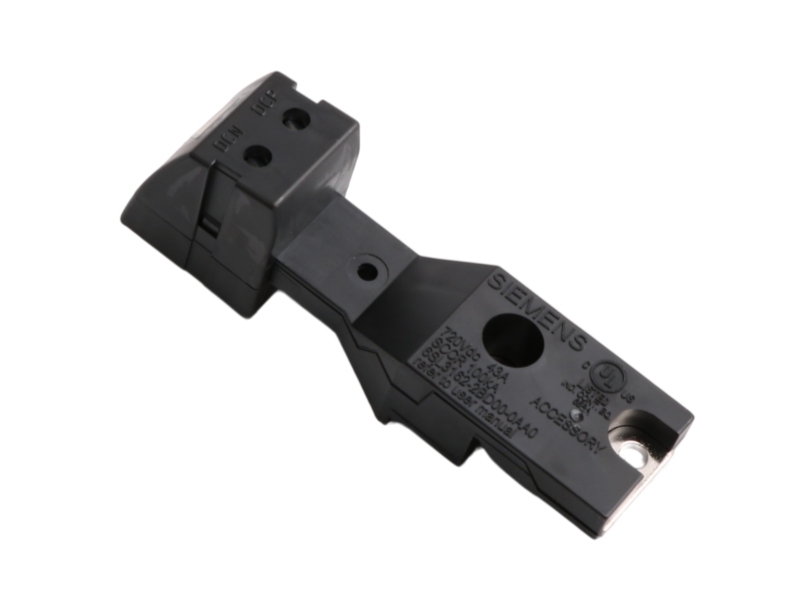

Siemens 6SL3162-2BD00-0AA0 is a SINAMICS DC link rectifier adapter for direct DC-link infeed to compatible Booksize line and motor modules. Siemens technical data specifies 43 A current carrying capacity, screw-type terminals for 0.5 to 10 mm2 conductors and a 495 to 720 V supply range. It is an accessory and must be selected as part of the complete DC-link architecture.
| Commercial Field | Verified Information |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6SL3162-2BD00-0AA0 |
| Product Family | SINAMICS Booksize accessories |
| Official Product Type | DC link rectifier adapter |
| Lifecycle | Not displayed in the accessible official source |
| Parameter | Officially Confirmed Value |
|---|---|
| Application | Direct DC-link infeed |
| Current Carrying Capacity | 43 A at 55 C |
| Supply Voltage Range | 495 to 720 V |
| Connection Design | Screw-type terminals |
| Conductor Cross-Section | 0.5 to 10.0 mm2 (AWG 21 to AWG 8) |
| Tightening Torque | 1.8 Nm |
| Compatible Module Widths | 50 mm and 100 mm Booksize line and motor modules |
| Net Weight | 0.06 kg |
| Supplied Quantity | 1 adapter |
Use this adapter where a validated SINAMICS Booksize configuration requires direct DC-link infeed to compatible line or motor modules.
The exact article number is confirmed by a current Siemens technical data sheet, but the accessible source did not display an official lifecycle phrase. Verify lifecycle and commercial availability with Siemens before ordering.
