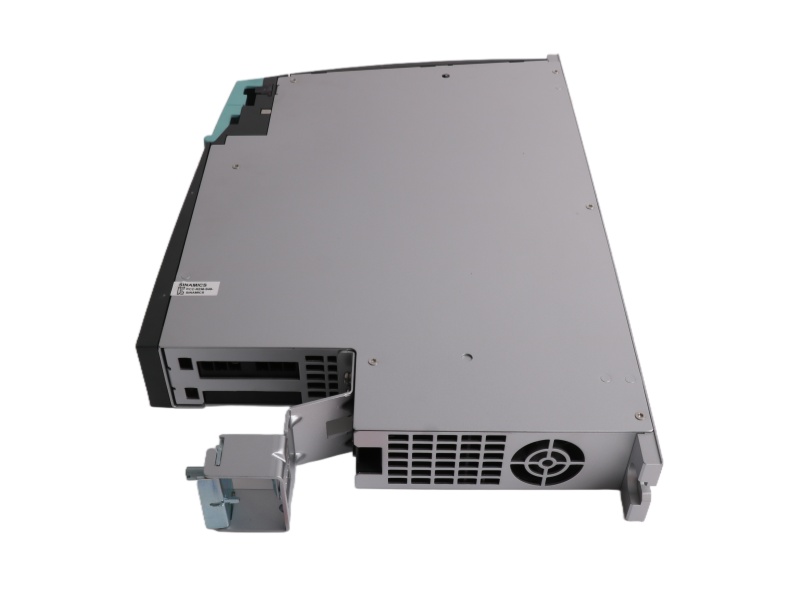

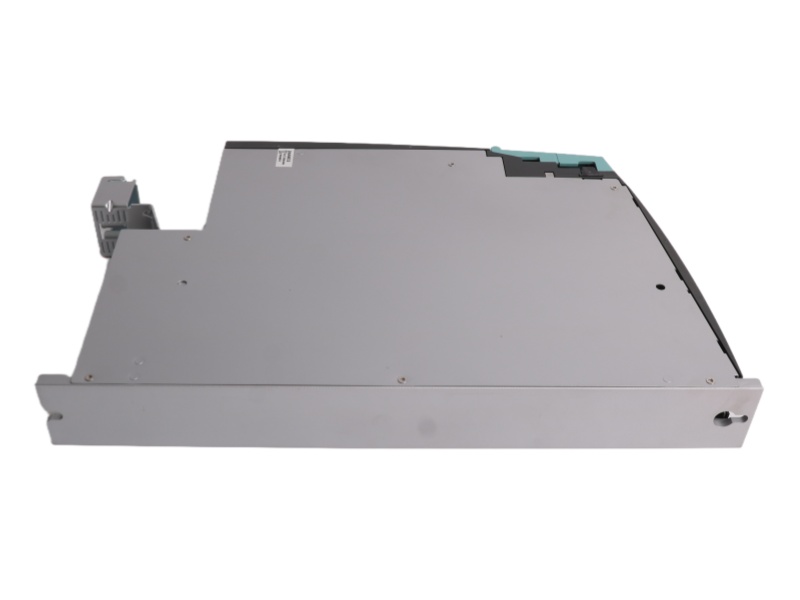

Siemens 6SL3120-1TE21-8AD0 Single Motor Module

Inquiry now

6SL3120-1TE21-8AD0 Product datasheet

Model number:	6SL3120-1TE21-8AD0	Module Type：	Single Motor Module
Manufacture:	Siemens	Condition：	Brand New
Range of Product:	Siemens	Lead time：	In Stock
Weight:	0.95 kg	HS CODE：	8537101190
Dimension:	2.5 cm x 5.1 cm x 83.8 cm	MOQ:	1
Product Origin:	GERMANY	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

6SL3120-1TE21-8AD0 Functional Description

The Single Motor Module Siemens 6SL3120-1TE21-8AD0 is a high-performance single motor module designed for the SINAMICS S120 drive system, delivering 21kW output power with a rated current of 18A. This compact booksize D-type module converts 510-720V DC input to 400V 3-phase AC output, featuring advanced cooling through internal air circulation. The sophisticated design of the 6SL3120-1TE21-8AD0 Siemens AC Drives incorporates optimized pulse patterns and supports extended Safety Integrated functions, meeting SIL 2 and PL d safety standards for critical applications.

Weighing 5kg with dimensions of 33.0x7.6x61.0cm, the Siemens S120 SINGLE MOTOR MODULE 6SL3120-1TE21-8AD0 demonstrates excellent power density in a compact form factor. The module operates within a temperature range of 0°C to 40°C, with derating capability up to 55°C, ensuring reliable performance in various industrial environments. Its robust construction allows storage in extreme temperatures from -40°C to +70°C, making it suitable for demanding manufacturing conditions.

The technical capabilities of the 6SL3120-1TE21-8AD0 Motor Module Siemens include ultra-fast control cycles with 125μs speed control and 62.5μs current control response times. Featuring integrated DRIVE-CLiQ communication, this module enables seamless connectivity and real-time monitoring within automated systems. It represents cutting-edge motor control technology with its 4kHz switching frequency and advanced thermal management system.

Designed for maximum reliability, the Siemens 6SL3120-1TE21-8AD0 Single Motor Module includes comprehensive protection features and supports shielded cable lengths up to 230 feet. This motor module exemplifies Siemens' commitment to precision engineering, offering exceptional dynamic response and energy efficiency for sophisticated motion control applications across various industrial sectors, from manufacturing automation to precision processing equipment.
