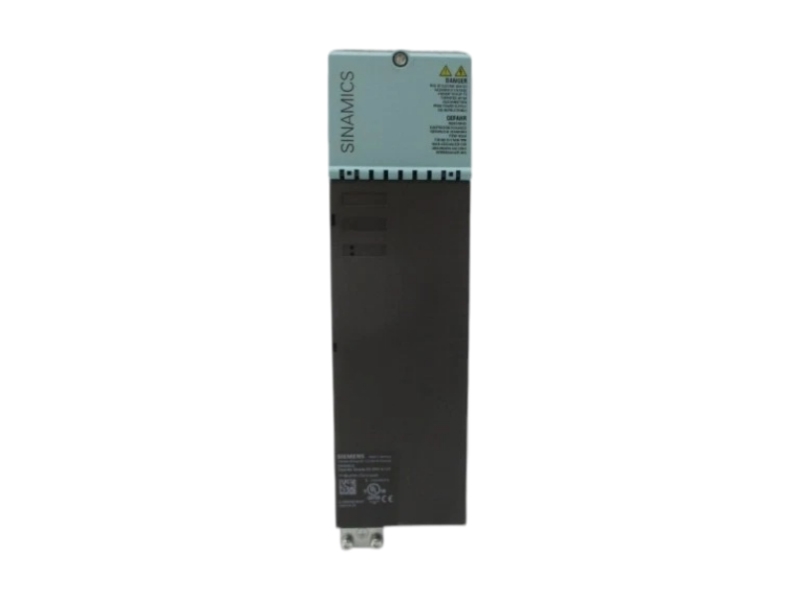

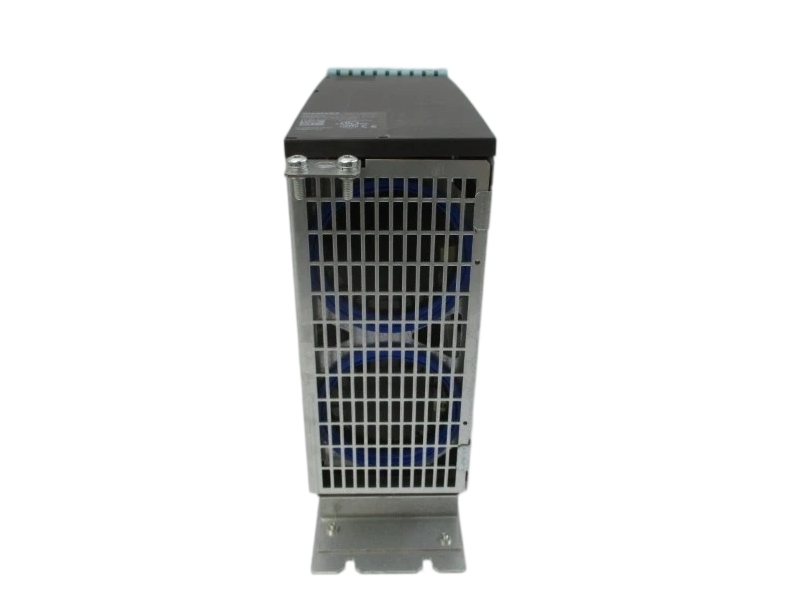

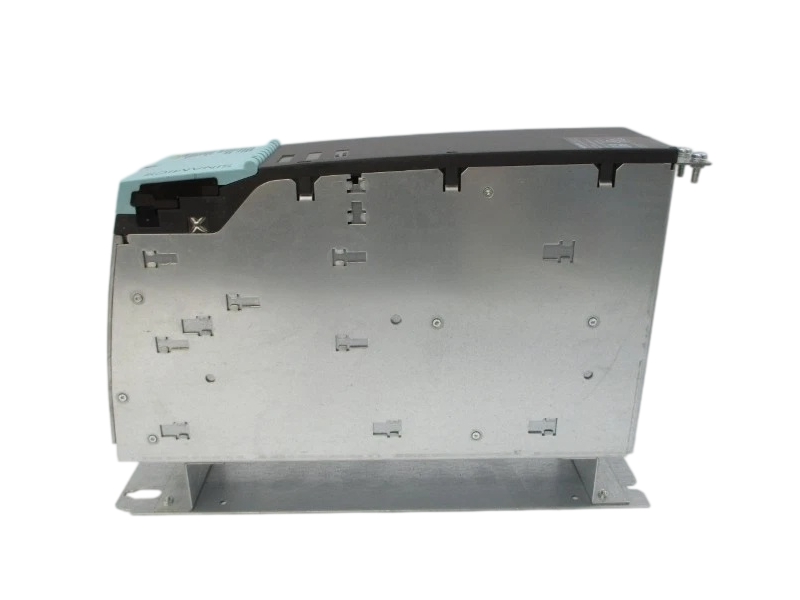

4000 µF Capacitor Module with Internal Air Cooling
The Siemens 6SL3100-1CE14-0AA0 is a SINAMICS S120/S220 booksize Capacitor Module designed to increase DC-link capacitance and bridge momentary power losses in compatible drive systems. It connects through integrated DC-link busbars, operates autonomously and can be used in parallel with additional Capacitor Modules. Siemens specifies internal air cooling, a 510–720 V DC-link range and 4000 µF capacitance. For procurement or replacement, verify the complete suffix, booksize mechanical arrangement, DC-link voltage, busbar current capacity, PE connection, spacer depth, cooling path and cabinet documentation before installation. This module is not a universal substitute for other SINAMICS DC-link components.
| Commercial Item | Current Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Verified Value |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6SL3100-1CE14-0AA0 |
| Product Type | Capacitor Module in booksize format |
| Product Family | SINAMICS S120/S220 drive system |
| Function | Increases DC-link capacitance to bridge momentary power losses |
| Cooling | Internal air cooling |
| DC-Link Voltage | 510–720 V DC |
| Capacitance | 4000 µF |
| 24 V DC Busbar Current Capacity | 20 A |
| DC-Link Busbar Current Capacity | 100 A |
| Standard Connections | 2 DC-link connections via integrated busbars; 2 PE connections |
| PE Connection | M5 screw |
| Parallel Operation | Several Capacitor Modules can be operated in parallel |
| Dimensions | 100 × 380 × 270 mm (W × H × D with supplied spacer) |
| Approximate Weight | 7.2 kg |
| Certificate of Suitability | cULus |
| Country of Origin | Germany |
| Review Area | Application Guidance |
|---|---|
| System Fit | SINAMICS S120/S220 booksize drive systems engineered for the documented DC-link component. |
| System Function | Raises DC-link capacitance to help bridge brief power losses. |
| Typical Applications | Machine tools, production machinery and coordinated drive cabinets requiring DC-link energy buffering. |
| Maintenance Use | Like-for-like maintenance where the installed booksize arrangement, ratings and busbars are documented. |
| Parallel Operation | Multiple Capacitor Modules may operate in parallel when the drive design and current limits are correctly engineered. |
Verify the complete part number and suffix, hardware label, 510–720 V DC-link design, capacitance requirement, 24 V and DC-link busbar current, integrated busbar alignment, M5 PE connections, 100 mm module width, spacer depth, internal cooling clearance, cabinet mounting position, parallel-module arrangement and product-label photographs. Review the drive cabinet documentation before replacement; this component is not guaranteed to replace a different SINAMICS module directly.
Siemens lists 6SL3100-1CE14-0AA0 as PM300: Active Product. This wording is retained exactly and must not be interpreted as Discontinued. Procurement teams should still verify the current hardware label, mechanical arrangement, busbar design and cabinet configuration for the intended installation.
