SIEMENS SINAMICS DRIVE OPERATOR INTERFACE
Language-neutral cabinet operator panel for local SINAMICS drive operation, commissioning, status monitoring and diagnostics.

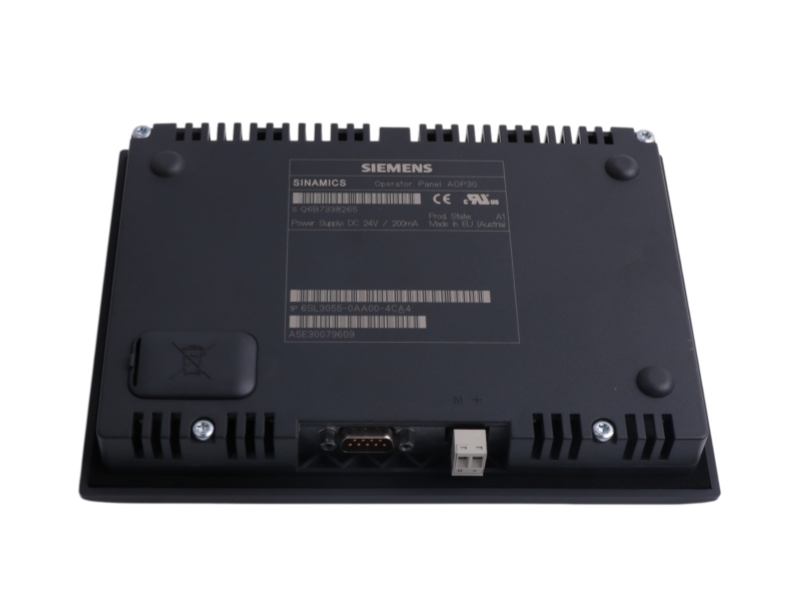

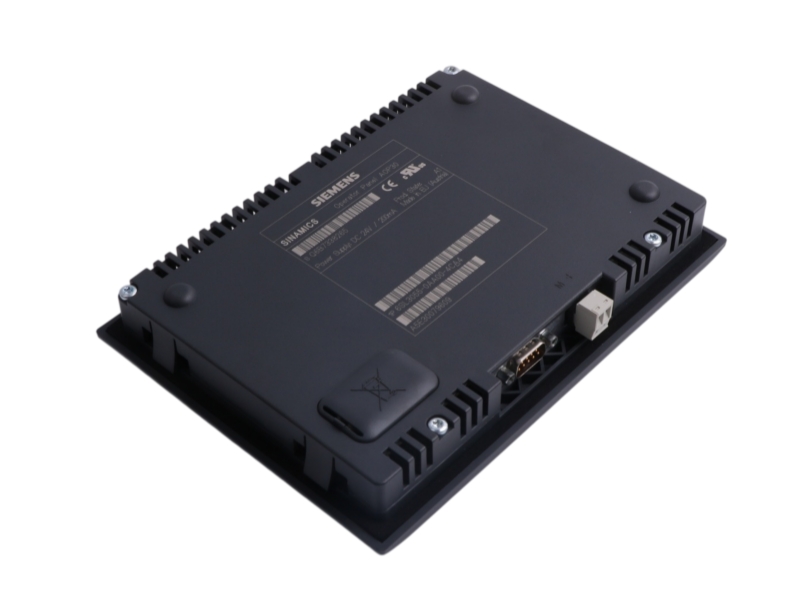

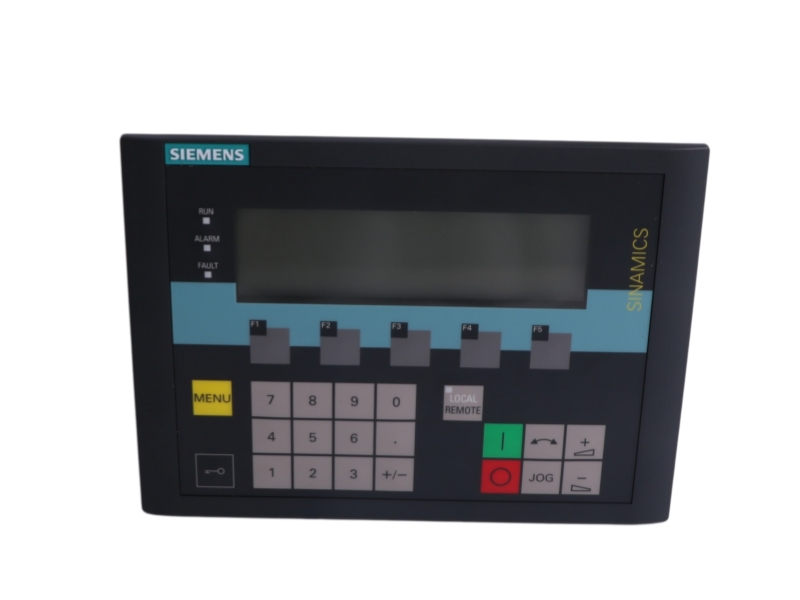

The Siemens 6SL3055-0AA00-4CA4 is a SINAMICS AOP30 Advanced Operator Panel intended primarily for cabinet installation. It provides a local interface for viewing operating states, setpoints, actual values, parameters, indices, faults and alarms.
The official description identifies this language-neutral unit as suitable for firmware V2.4 or higher. Procurement should be based on the complete article number, installed drive platform, firmware level, supply arrangement and required communication cable.
| Manufacturer | Siemens |
|---|---|
| Article number | 6SL3055-0AA00-4CA4 |
| Official description | Spare part — SINAMICS operator panel AOP30, language-neutral, for firmware V2.4 or higher |
| Product lifecycle (PLM) | PM500: Discontinued Product or end of PLM & Support |
| PLM effective date | End of product lifecycle since 2023-05-02 |
| Official successor | 6SL3055-0AA00-4CA5 — substitution requires application-specific verification |
| Parameter | Official value |
|---|---|
| Power supply | 24 V DC (20.4 to 28.8 V DC) |
| Current requirement | Less than 100 mA without backlighting; less than 200 mA at maximum backlighting |
| Data interface | RS232 interface, PPI protocol |
| Backup battery | 3 V lithium CR2032 |
| Operating temperature | 0 to 55 °C |
| Storage and transport temperature | -25 to +70 °C |
| Degree of protection | IP20 inside the cabinet; IP55 outside the cabinet |
| Dimensions (W × H × D) | 212 × 156 × 31 mm |
| Weight, approximate | 0.55 kg |
| Conformity and approval | CE; cULus |
Suitable where operators need cabinet-front access to SINAMICS operating states, setpoints, actual values, parameters, faults and alarms.
Supports local commissioning work and diagnostic review when correctly connected to the intended Siemens drive control hardware.
Designed primarily for cabinet mounting, with different protection ratings applying to the inside and outside faces of the installed panel.
Siemens lists 6SL3055-0AA00-4CA4 as PM500: Discontinued Product or end of PLM & Support, with the end of product lifecycle effective since 2023-05-02. Availability must therefore be checked individually. The listed successor is 6SL3055-0AA00-4CA5, but firmware, communication, memory expansion, mounting and system compatibility should be confirmed before substitution.
It is a language-neutral SINAMICS AOP30 Advanced Operator Panel for firmware V2.4 or higher.
The official technical data specifies an RS232 data interface using the PPI protocol.
The panel requires 24 V DC, with an official operating range of 20.4 to 28.8 V DC.
No. Siemens records PM500: Discontinued Product or end of PLM & Support, effective since 2023-05-02.
It is the official successor, but a technician should confirm firmware, mounting, cabling and system compatibility before replacement.
Send the full article number, nameplate photos, drive or control-unit model, firmware, cable requirements, quantity and delivery destination.
Share your system data, quantity and destination. We will check article-number availability, documentation, condition, compatibility points, global delivery options and applicable warranty terms.
Structured sourcing support for Siemens 6SL3055-0AA00-4CA4, combining article-number review, lifecycle awareness, compatibility checks, documentation control and coordinated global delivery.
A discontinued operator panel requires more than a stock response. Our process begins with the exact Siemens article number and then checks the installed SINAMICS platform, firmware, interface, supply, mounting details and cable requirements. This reduces avoidable substitutions and helps the purchasing, engineering and maintenance teams work from the same verified information.
For every request, we can coordinate availability review, documentation, visual condition records, packing, export preparation, shipment tracking and warranty clarification. The goal is to provide a traceable procurement path for urgent maintenance and planned replacement projects.
A dedicated coordinator organizes the full article number, requested quantity, target equipment, firmware details and delivery destination before sourcing begins. Clear intake improves quotation accuracy and prevents an obsolete, successor or similarly named variant from being mixed into the request.
We compare the visible nameplate and supplied system data with manufacturer documentation. The review highlights lifecycle status, interface and supply details, successor references and open compatibility questions so engineers can make an informed approval decision before shipment.
Industrial electronics are prepared with protective packing appropriate to the route and handling requirements. The service team coordinates export documents, tracking and delivery updates, while warranty scope and after-sales contact points are clarified with the commercial offer.
| Request item | Why it matters |
|---|---|
| Full nameplate and article number | Confirms the exact 6SL3055-0AA00-4CA4 variant and helps prevent suffix errors. |
| Drive, control unit and firmware | Supports interface and compatibility review for the installed SINAMICS system. |
| Cables and mounting details | Clarifies whether connecting cables, brackets or other installation items are required. |
| Quantity, urgency and destination | Enables a realistic supply, packing and global delivery plan. |
Provide the full system context and destination for a focused availability review, compatibility checklist, delivery plan and warranty statement.
