01 Product Overview

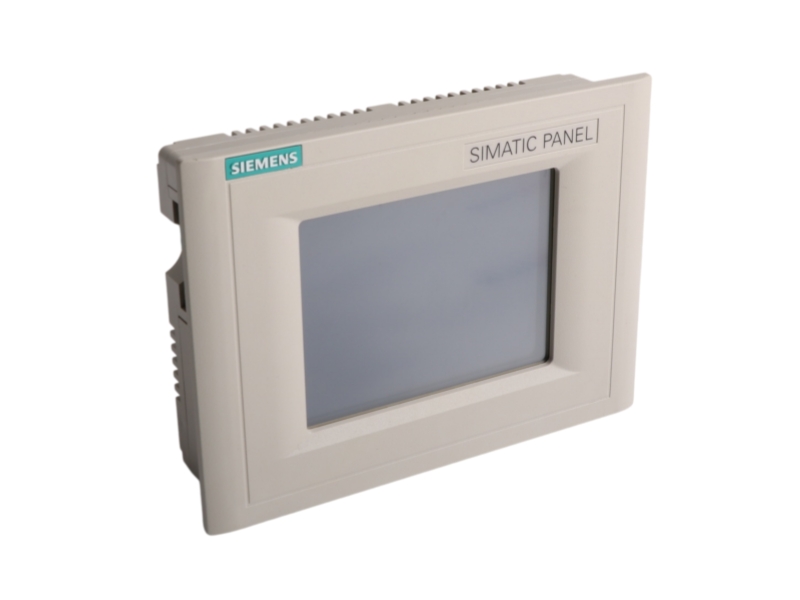

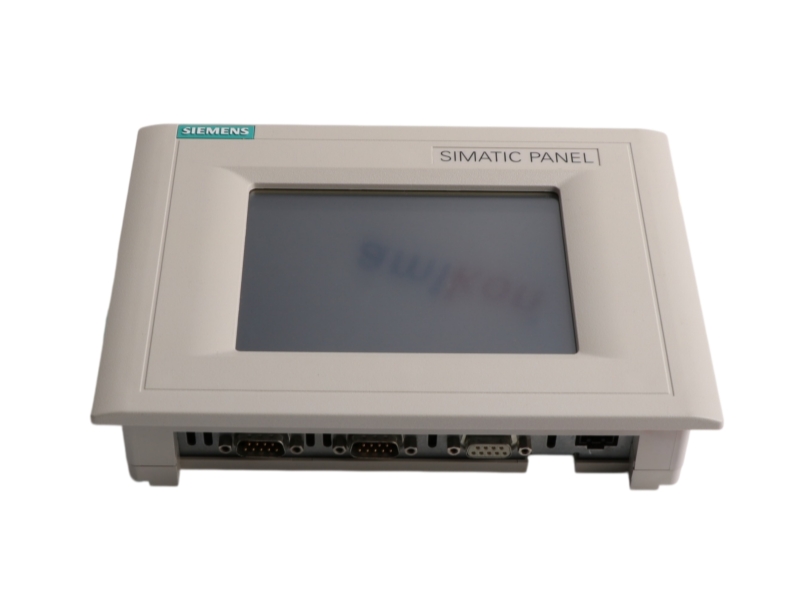

Siemens 6AV6545-0BC15-2AX0 is the SIMATIC HMI TP 170B color Touch Panel. Siemens conformity documentation maps the complete order number to TP 170B, while the official operating instructions provide the hardware, display and interface data used here.
The panel combines a 320 × 240 resistive touch display, Windows CE operating environment, configuration memory and serial/MPI/PROFIBUS communication for local machine operation and visualization.
02 Commercial Status
| Record item |
Verified information |
| Manufacturer |
Siemens |
| Complete part number |
6AV6545-0BC15-2AX0 |
| Official designation |
TP 170B |
| Product family |
SIMATIC HMI |
| Procurement handling |
Exact-code, panel-cutout and project-compatibility review |
03 Verified Technical Data
| Parameter |
Officially supported value |
| Processor |
32-bit RISC |
| Configuration memory |
Up to 768 kB |
| Operating environment |
Microsoft Windows CE |
| Display resolution |
320 × 240 pixels |
| Active display area |
116 × 87 mm |
| Display colors |
4 Blue Mode or 16 colors |
| Touch technology |
Analog resistive touchscreen |

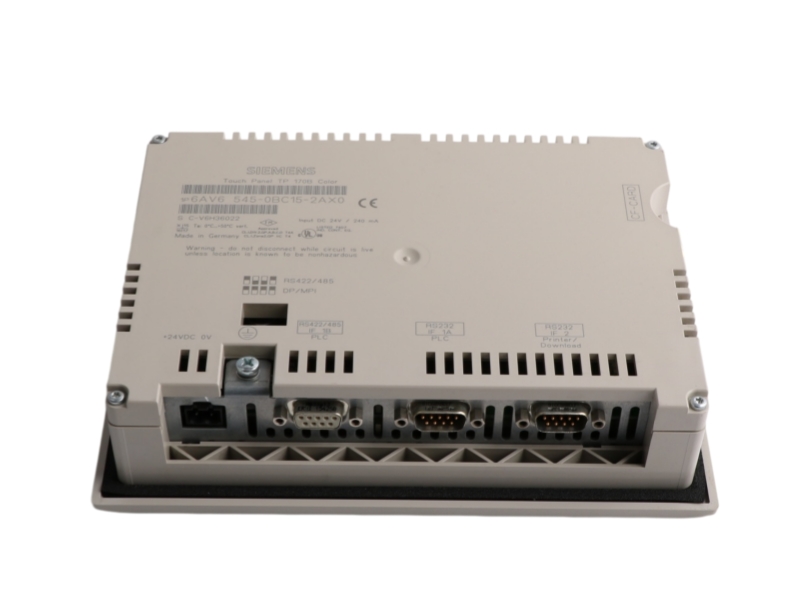

| Serial interface 1 |
RS232 and RS422/RS485, 9-pin |
| S7 communication |
MPI / PROFIBUS DP, up to 12 Mbit/s |
| Serial interface 2 |
RS232 |
| Removable storage |
CompactFlash card slot |
| External dimensions |
212 × 156 mm (W × H) |
| Mounting depth |
45 mm |
| Mounting cutout |
198 × 142 mm |
| Weight |
Approximately 0.7 kg |
| Protection |
Front IP65; rear IP20 |
04 System Fit and Applications
Machine visualization
Display operating states, messages and process values at the machine.
Operator control
Provide touch-based setpoint entry and local command functions.
Installed-base HMI maintenance
Support documented TP 170B replacements where the original project and interface plan are retained.
05 Compatibility and Procurement Checks
1. Order-code identity — Match the full 6AV6545-0BC15-2AX0 code and TP 170B marking.
2. Panel mechanics — Verify cutout, mounting depth, cabinet thickness and connector clearance.
3. Communication — Confirm MPI/PROFIBUS address, baud rate and serial-interface wiring.
4. Project software — Retain the original HMI project, tags, fonts, recipes and communication drivers before replacement.
06 Lifecycle Note
Official Siemens documents identify 6AV6545-0BC15-2AX0 as TP 170B and provide its technical data. The reviewed exact-model sources do not display an official lifecycle term, so no lifecycle label is assigned here.
07 Frequently Asked Questions
What is 6AV6545-0BC15-2AX0?
It is the Siemens SIMATIC HMI TP 170B color Touch Panel.
What display does the TP 170B use?
The official data specify a 320 × 240 display with a 116 × 87 mm active area and analog resistive touch input.
Which S7 network interfaces are supported?
The panel supports MPI and PROFIBUS DP communication at up to 12 Mbit/s.
What must be backed up before replacement?
Preserve the original HMI project, communication settings, recipes, archives and any CompactFlash data.
