The 6SE7035-1TJ60-Z SIMOVERT MASTERDRIVES Vector Control is a powerful SIMOVERT MASTERDRIVES Vector Control inverter, designed to precisely control three-phase drives across a broad power range from 37 kW up to 2200 kW. Operating with a DC link voltage between 510 and 650 V DC, this advanced inverter employs pulse width modulation (PWM) technology to generate variable three-phase output frequencies from 0 Hz to 600 Hz, making it ideal for demanding industrial applications.

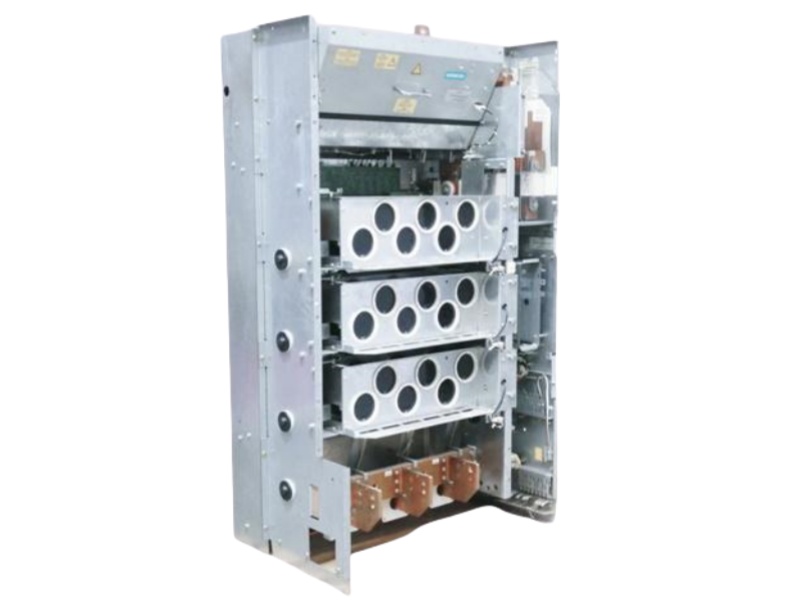

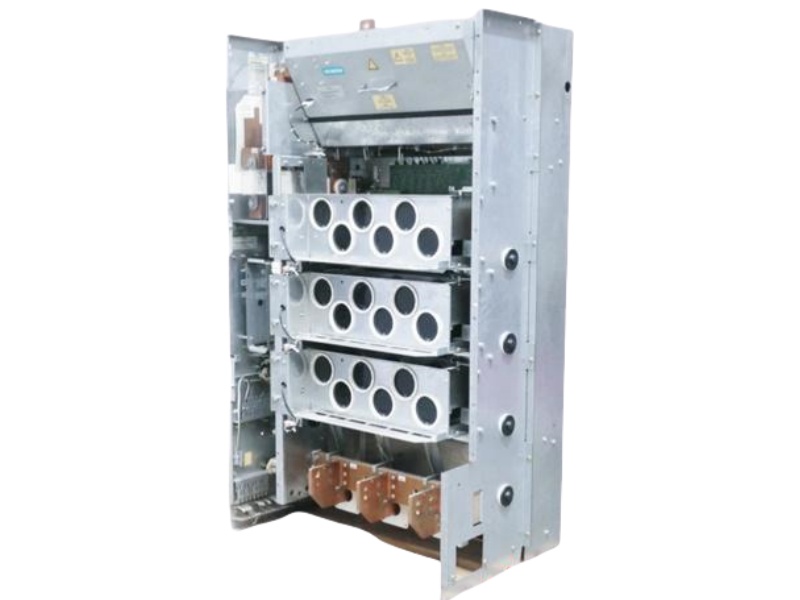

Built as a compact IP00 built-in unit, the Siemens 6SE7035-1TJ60-Z Refurbished SIMOVERT MASTER DRIVES VECTOR CONTROL has a type rating of 250 kW and supports a continuous output current of 510 A. The internal closed-loop electronics manage control functions through dedicated software, with a robust internal 24 V DC power supply ensuring stable operation. The inverter’s versatility is further enhanced by support for pulse encoders and analog tachometers for precise motor feedback.

For seamless operator interaction, the Vector Control 6SE7035-1TJ60-Z Siemens can be controlled via the PMU operator panel, the intuitive OP1S panel, terminal strips, or through serial interfaces connected to a bus system. It includes multiple interfaces and six expansion slots to accommodate various optional boards, tailoring functionality to specific process requirements.

Manufactured by Siemens and shipped from Xiamen, China, the Master Drives Vector Control 6SE7035-1TJ60-Z measures approximately 65.5 x 30 x 3 cm and weighs 0.88 kg. With a rated power of 45 kW (60 HP), an input range of 3-phase AC 380–480V ±10%, and a switching frequency of 2–16 kHz, the Siemens 6SE7035-1TJ60-Z Master Drives Vector Control is a high-performance solution for precision drive control.
