HF industrial identification with integrated antenna and RS232/RS422 communication

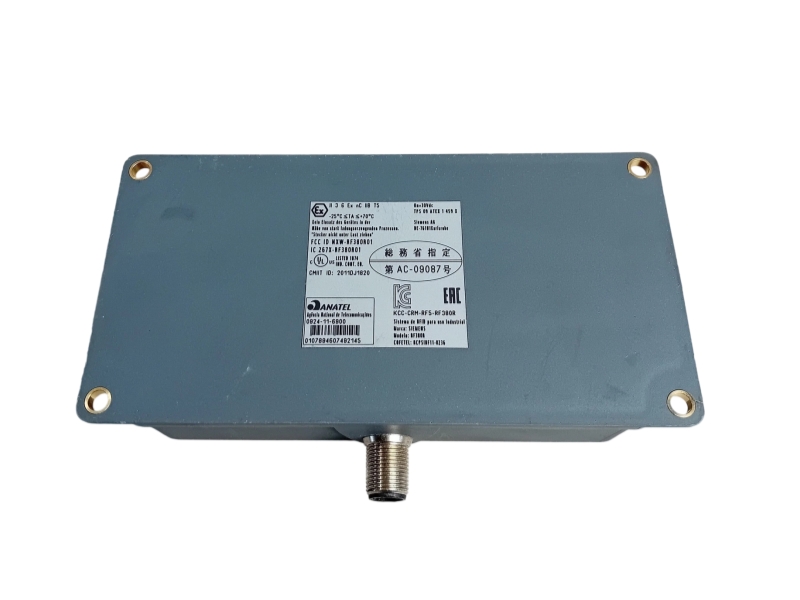

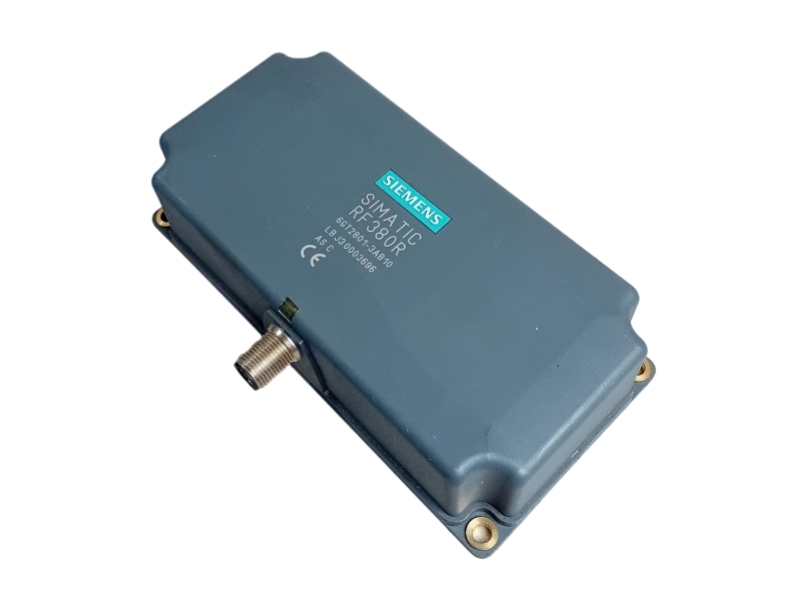

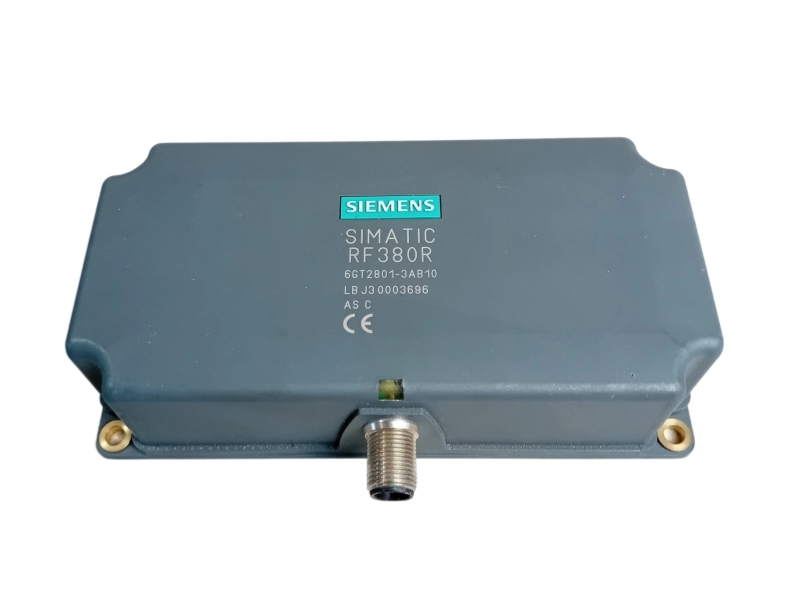

Siemens 6GT2801-3AB10 is a SIMATIC RF380R high-frequency industrial RFID reader designed for reliable identification in demanding material-flow applications. Its integrated antenna supports RF300-specific, ISO 15693 and ISO 18000-3 transponders at 13.56 MHz, with a maximum specified range of 200 mm depending on the transponder and installation. RS232 and RS422 communication through an 8-pin M12 connector enables connection to communication modules and PC-based systems. The compact IP67 enclosure is suited to assembly, automotive bodyshop and paintshop environments, baggage conveyors and other dynamic processes where a transponder may continue moving during read or write operations.
| Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Parameter | Specification |
|---|---|
| Product designation | SIMATIC RF380R reader |
| Operating frequency | 13.56 MHz |
| Supported protocols | RF300-specific, ISO 15693 and ISO 18000-3 |
| Maximum range | 200 mm; transponder-dependent and adjustable through transmit power |
| Maximum RF transfer rate | 106 kbit/s |
| Serial transfer rates | 19.2, 57.6 and 115.2 kBd |
| Communication interfaces | RS232 / RS422, 3964R protocol |
| Electrical connector | M12, 8-pin |
| Antenna | Integrated |
| Supply voltage | 24 V DC |
| Typical current consumption | 160 mA at 24 V DC |
| Degree of protection | IP67 |
| Operating temperature | -25 to +70 °C |
| Dimensions | 160 × 80 × 41 mm |
| Net weight | 0.6 kg |
| Housing and indication | PA 12 anthracite enclosure; 3-color LED |
 |
 |
 |
The RF380R is intended for HF identification tasks that require a compact reader with its own antenna and robust field enclosure.
Match the complete order number, reader hardware version, transponder standard, communication interface and connector assignment before replacement. Confirm that the host system supports the 3964R protocol and that power, cable routing and environmental conditions remain within the documented limits. Siemens specifies maximum cable lengths of 30 m for RS232 and 1,000 m for RS422. Read/write range depends on the selected transponder, mounting geometry, metal surroundings and configured transmit power.
Siemens catalogue and system-manual records identify 6GT2801-3AB10 as the SIMATIC RF380R reader. The reviewed Siemens records do not provide a current PLM designation for this exact article, so no lifecycle status is asserted on this page.
It is a SIMATIC RF380R HF RFID reader with an integrated antenna for industrial identification applications.
The reader supports RF300-specific transponders together with ISO 15693 and ISO 18000-3 devices.
The unit provides RS232 and RS422 communication using the 3964R protocol through an 8-pin M12 connection.
The documented maximum is 200 mm. Actual range depends on the transponder, mounting conditions and configured transmit power.
Compare the complete part number, label data, hardware version, interface, connector, transponder family and host-system requirements.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
