6GK7542-5DX00-0XE0 Overview

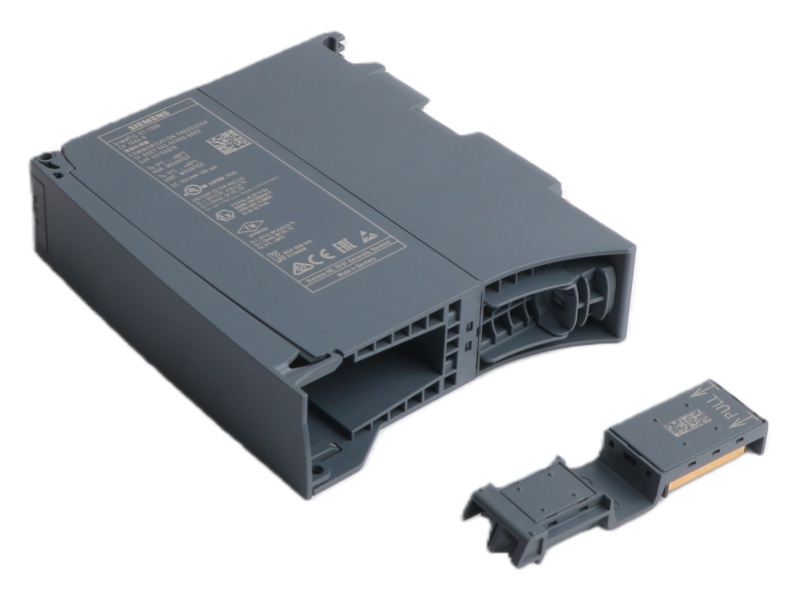

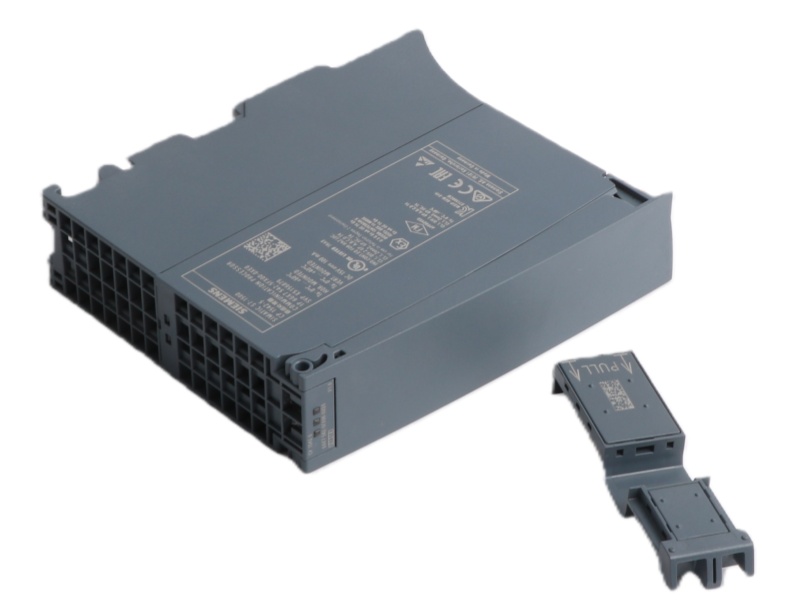

The Siemens Simatic S7 6GK7542-5DX00-0XE0 is a communications module enabling S7-1500 PLCs to connect to PROFIBUS DP networks as a master or device. It supports S7/PG/OP communication, data routing, and diagnostics, measuring 74x60x117mm and weighing 0.379kg.

Features and Benefits

Comprehensive Protocol Support: Enables S7-1500 connectivity as a PROFIBUS DP master or device, supporting DP-V1, S7, and PG/OP communication.

Enhanced Functionality: Facilitates data record routing, time synchronization, and integrated network diagnostics.

Compact & Lightweight Design: Features a compact footprint (74x60x117 mm) and low weight (0.379 kg) for easy integration.

Standard Availability: Classified as a standard stock product, ensuring reliable supply and straightforward returns.

FAQ

Q: What is the primary function of the Siemens 6GK7542-5DX00-0XE0 module?

A: It is a communication module that connects S7-1500 PLCs to PROFIBUS DP networks, functioning as a DP-V1 master or device.

Q: What communication functions does it support beyond basic PROFIBUS?

A: It supports S7 communication, PG/OP communication, data record routing, time synchronization, and integrated diagnostics.

Q: What is its physical size and weight?

A: The module is compact, measuring 74 x 60 x 117 mm, and weighs 0.379 kg.

Q: What does the Product Class 'A' designation mean?

A: It indicates this is a standard stock product, typically available for order and returnable within standard guidelines.

Q: Is this module a spare part for existing systems?

A: Yes, it is listed and functions as a spare part for integrating S7-1500 controllers into PROFIBUS DP systems.
