SIMATIC NET / AS-INTERFACE
AS-Interface master communication processor for S7-300 and ET 200M

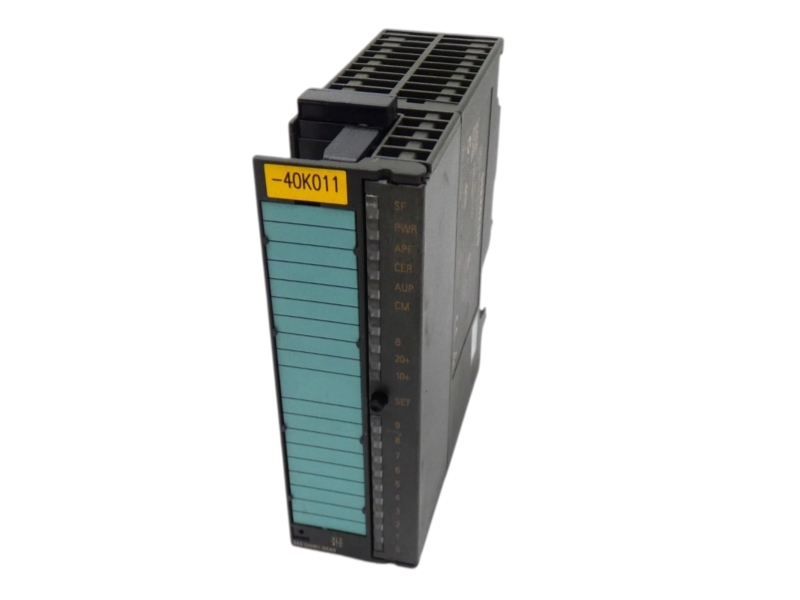

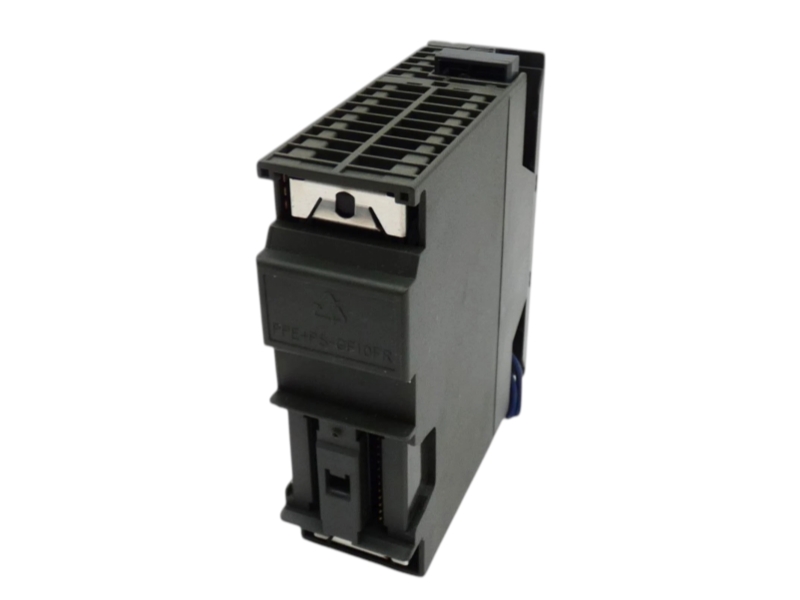

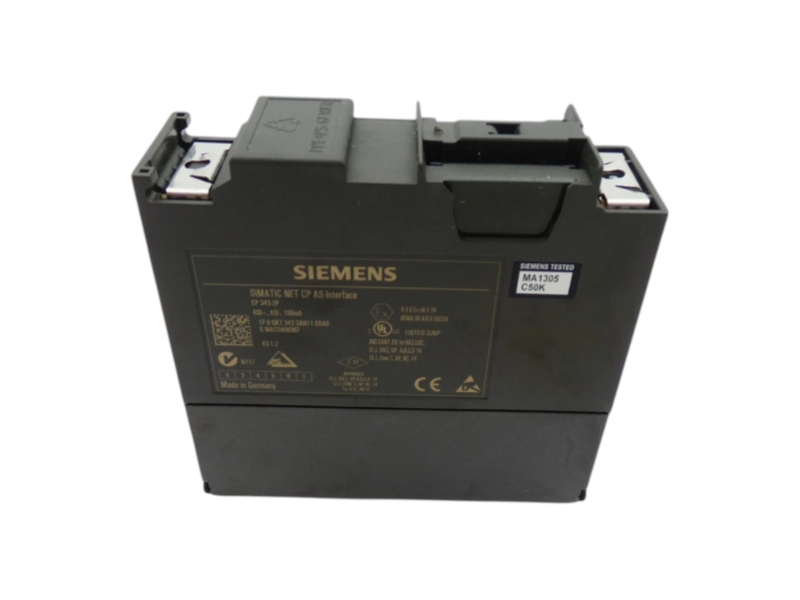

Siemens 6GK7343-2AH11-0XA0 is the SIMATIC NET CP 343-2P communications processor for connecting SIMATIC S7-300 and ET 200M stations to AS-Interface. The P version adds expanded configuration options while retaining the CP 343-2 functionality. Siemens documents configuration through the SET key or STEP 7 and conformity with AS-Interface Specification V3.0. Exact rack fit, front-connector choice, addressing and the AS-i device plan must be reviewed before replacement.
| Commercial item | Procurement statement |
|---|---|
| Condition | Original new industrial product, subject to exact-label and configuration verification |
| Availability | Stock and supply verification before quotation |
| Warranty | One-year warranty, subject to written quotation terms |
| Verified item | Official Siemens data |
|---|---|
| Manufacturer | Siemens |
| Complete article number | 6GK7343-2AH11-0XA0 |
| Product family | SIMATIC NET CP 343-2P |
| Product type | AS-Interface communication processor |
| Host systems | SIMATIC S7-300 and ET 200M |
| AS-Interface specification | V3.0 |
| Configuration | SET key or STEP 7 |
| Digital capacity | Up to 248 DI / 248 DQ per CP with 62 A/B slaves |
| Analog integration | Up to 62 A/B-address analog slaves or 31 standard-address analog slaves |
| Dimensions | 40 x 125 x 120 mm (W x H x D) |
The CP 343-2P provides the AS-i master connection between an S7-300 or ET 200M station and field-level sensors and actuators. It is suitable for compact machine I/O, conveyor devices and distributed actuator-sensor networks that use AS-Interface addressing.
The module is configured differently from the basic CP 343-2 in STEP 7. Confirm hardware configuration, AS-i addressing, slave profile and the 20-pole front connector before exchange.
Siemens documentation states that phase-out was announced on October 1, 2023 and Product Cancellation is from October 1, 2025 for CP 343-2P / CP 343-2 AS-i modules. Siemens identifies CM AS-i Master ST for ET 200SP as the successor direction.
It is a CP 343-2P AS-Interface master communication processor for S7-300 and ET 200M.
Siemens documents configuration using the SET key or STEP 7.
The documented maximum is 248 DI and 248 DQ using 62 A/B slaves with four inputs and outputs each.
Siemens ordering data states that the module is supplied without a front connector.
Siemens points to migration toward the CM AS-i Master ST for ET 200SP.
Send the exact order code, installed system details, quantity and destination for availability and compatibility review.
