SIMATIC S7-300 POSITIONING
Single-axis positioning control for stepper-drive applications

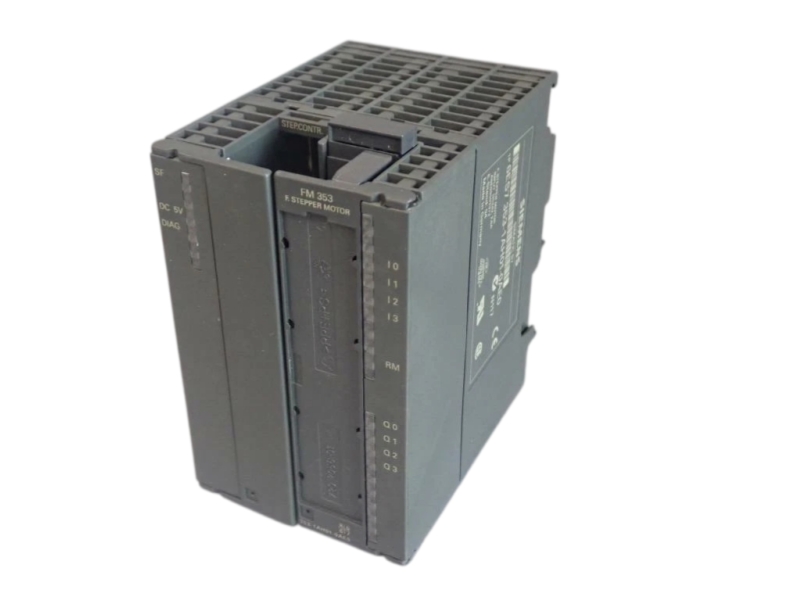

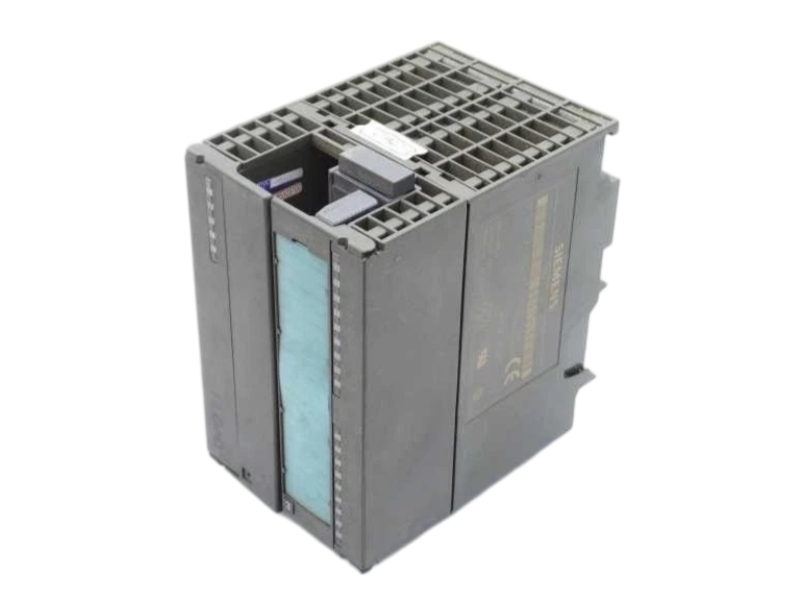

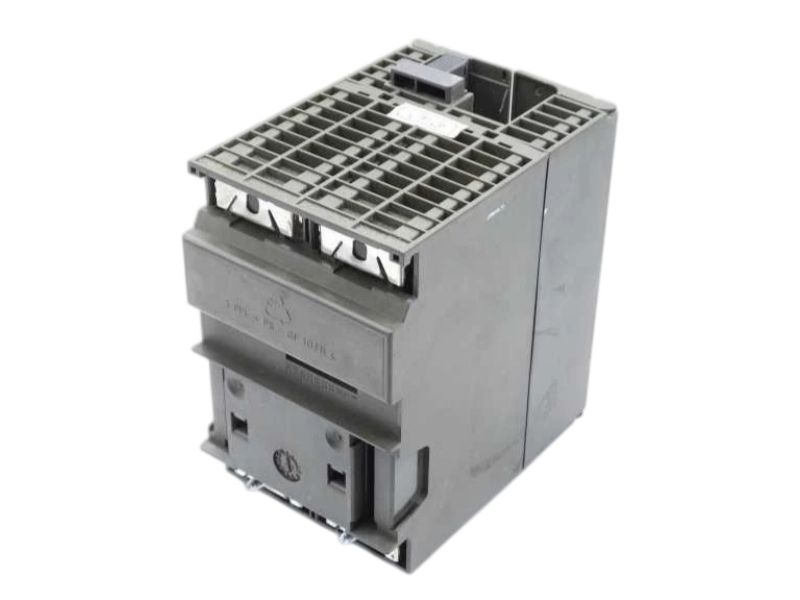

Siemens 6ES7353-1AH01-0AE0 is the SIMATIC S7-300 FM 353 positioning module. Siemens documentation identifies it for positioning tasks and describes commissioning through the FM parameterization tool, with communication from the programming device or PC through MPI to the S7 CPU. It is intended for single-axis positioning with a stepper drive in an S7-300 or supported ET 200M configuration. Procurement must retain the complete order code and verify module version, front connector, parameterization package and the machine safety concept.
| Commercial item | Procurement statement |
|---|---|
| Condition | Original new industrial product, subject to exact-label and configuration verification |
| Availability | Stock and supply verification before quotation |
| Warranty | One-year warranty, subject to written quotation terms |
| Verified item | Official Siemens data |
|---|---|
| Manufacturer | Siemens |
| Complete article number | 6ES7353-1AH01-0AE0 |
| Product family | SIMATIC S7-300 |
| Module designation | FM 353 |
| Product type | Positioning module |
| Axis scope | Single-axis positioning |
| Drive type | Stepper drive control |
| Engineering path | FM parameterization tool |
| Programming communication | MPI through the S7 CPU |
| Distributed use | Supported ET 200M configurations require documented module and interface versions |
The FM 353 coordinates positioning sequences for a stepper-driven machine axis. Typical uses include indexing, feed, transfer and format-adjustment mechanisms where the S7 program exchanges commands and status with a dedicated positioning module.
Siemens warns that an axis can continue moving if MPI communication to the commissioning interface is interrupted. Direct stop capability, limit switches and machine safeguards must be provided independently.
The consulted exact-model Siemens product information confirms FM 353 order number 6ES7353-1AH01-0AE0 but does not state a current lifecycle category. No lifecycle label is inferred; availability and support status require an exact-article Siemens check at quotation time.
It is the SIMATIC S7-300 FM 353 positioning module for a stepper-driven axis.
Siemens documents distributed use in supported ET 200M configurations; verify the IM, CPU and module versions.
Commissioning and parameter entry use the FM 353 parameterization tool within the documented STEP 7 environment.
No. Independent emergency stops, limit switches and protective measures remain necessary.
The exact-model Siemens documents consulted do not state one, so no status is inferred.
Send the exact order code, installed system details, quantity and destination for availability and compatibility review.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured support for Siemens 6ES7353-1AH01-0AE0 and FM 353 positioning-module sourcing, with exact-order-code control and documented checks before dispatch.
Exact Model & System ContextOur team checks module revision, connector scope, parameter data and supported S7 configuration before commercial confirmation. |
Package & Label EvidenceAvailable packaging, labels, accessories and included documentation are reviewed against the full Siemens order code. |
Condition & Document ReviewCommercial condition, document completeness and dispatch records are checked for a traceable procurement package. |
Exact-Code ControlThe complete 6ES7353-1AH01-0AE0 identifier is retained through inquiry, quotation and packing review. |
Evidence Before DispatchBuyers may request available label, connector, package and document evidence before shipment. |
Compatibility QuestionsWe capture system, firmware, wiring and configuration questions instead of assuming interchangeability. |
Global CoordinationCommercial documents, export packing and shipment details can be coordinated for international teams. |
| Step | Stage | What We Check |
|---|---|---|
| 01 | Requirement Capture | Exact MLFB, quantity, destination and the installed automation-system context. |
| 02 | Evidence Review | Available label, connector, packaging and included-material evidence. |
| 03 | Compatibility Checkpoints | Hardware revision, software, wiring and replacement constraints for buyer confirmation. |
| 04 | Dispatch & Traceability | Packing, shipping documents and after-sales communication references. |
Send the exact order code, quantity, destination and installed-system details for an availability and compatibility review.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
