Verified product identity and procurement-focused technical information

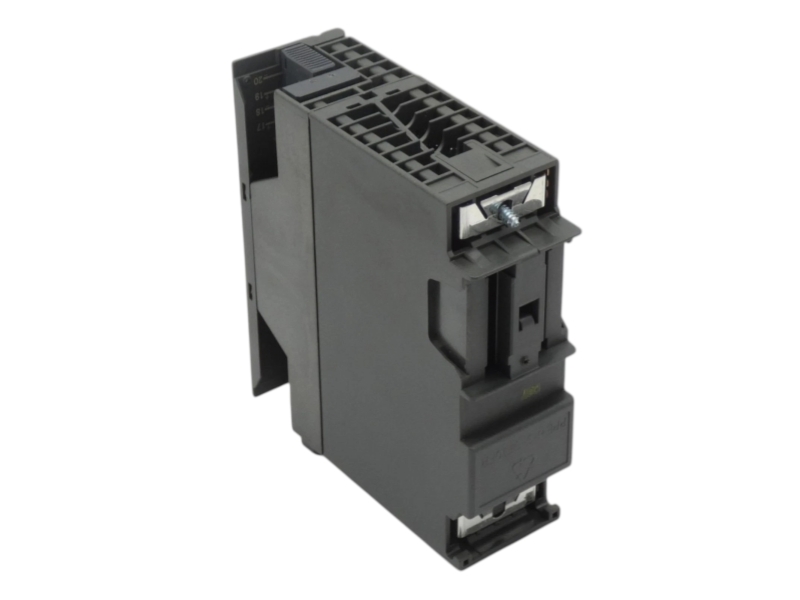

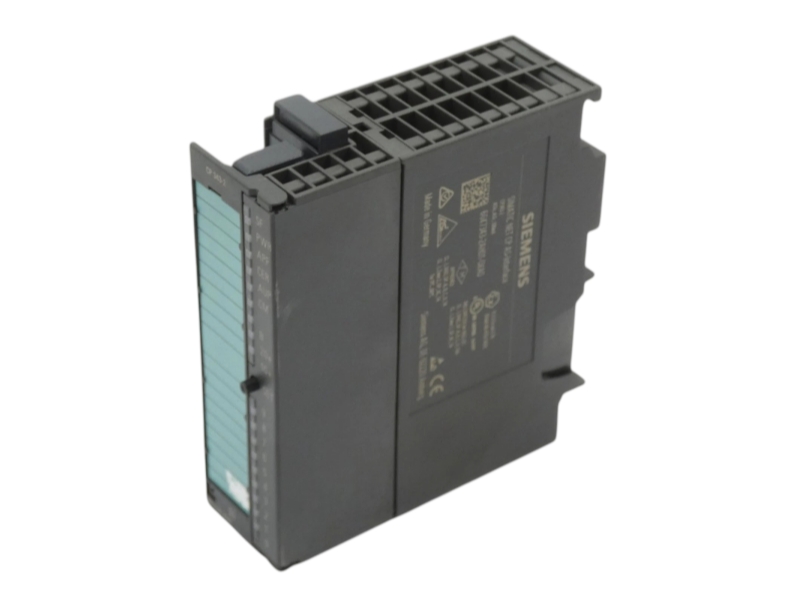

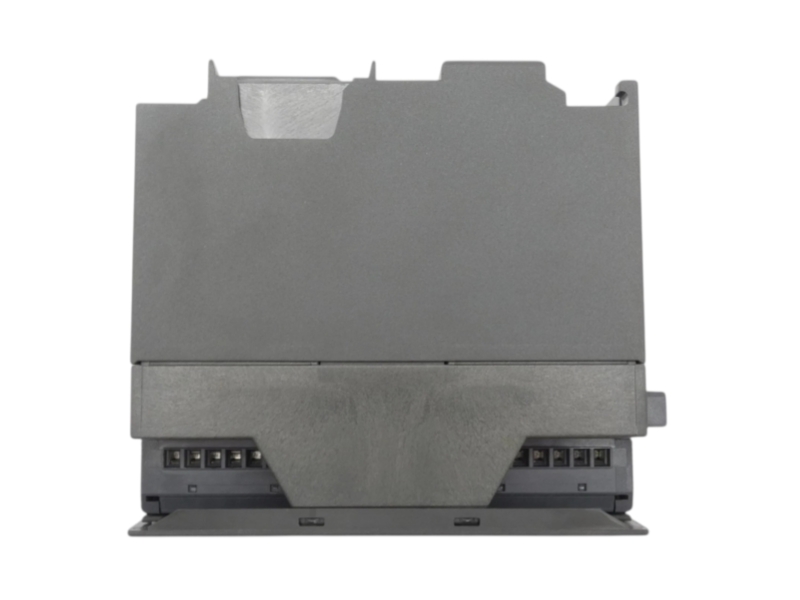

Siemens 6GK7343-2AH01-0XA0 is the SIMATIC NET CP 343-2 communication processor for connecting SIMATIC S7-300 and ET 200M stations to AS-Interface networks. Siemens specifies AS-i version 3.0, master profile M4, one AS-i interface and configuration through the SET pushbutton, STEP 7 or the command interface. The module uses an S7-300 20-pin front connector and can support redundant operation with a redundant IM 153 arrangement. Replacement planning should verify the complete suffix, front connector, firmware, AS-i power concept and project configuration. Siemens lists this article under PM400 product phase-out.
| Item | Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM400:Announcement of product phase-out; product phase-out since 01.10.2023 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Technical Field | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK7343-2AH01-0XA0 |
| Product Type | CP 343-2 AS-Interface Master |
| System Fit | SIMATIC S7-300 and ET 200M |
| AS-Interface Specification | Version 3.0 |
| Master Profile | M4 |
| AS-i Interfaces | 1 |
| Front Connector | S7-300 20-pin; not included |
| Supply | Via S7-300 backplane bus |
| Backplane Current | Maximum 200 mA |
| AS-i Current at 30 V | Maximum 100 mA |
| Power Loss | 4 W |
| Galvanic Isolation | Yes |
| Redundant Operation | Yes, with redundant IM 153 |
| Protection Rating | IP20 |
| Dimensions | 40 × 125 × 120 mm |
| Net Weight | 0.250 kg |
| Country of Origin | GERMANY |
| Application | Engineering Relevance |
|---|---|
| S7-300 AS-i Integration | Connect an S7-300 station to an AS-Interface network using the documented master profile. |
| ET 200M Remote I/O | Use with a correctly engineered ET 200M station and matching front connector. |
| Maintenance Replacement | Verify firmware, project data, AS-i power concept and redundant IM 153 requirements. |
Siemens lists 6GK7343-2AH01-0XA0 as PM400: Announcement of product phase-out, with product phase-out since 01.10.2023. This wording is retained without converting it to Discontinued.
It identifies the Siemens SIMATIC NET CP 343-2 AS-Interface Master for S7-300 and ET 200M.
Siemens specifies AS-Interface version 3.0 with master profile M4.
No. Siemens lists the 20-pin S7-300 front connector as required but not included.
Yes, Siemens documents redundant operation with a redundant IM 153 arrangement.
PM400: Announcement of product phase-out; product phase-out since 01.10.2023.
Check the full suffix, connector, AS-i power concept, firmware, STEP 7 project and redundancy design.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Practical checks for Siemens SIMATIC NET CP 343-2 sourcing, inspection and delivery.
We compare the supplied model label, complete suffix and packaging information with the requested 6GK7343-2AH01-0XA0.
Clear front, nameplate and packaging photos can be prepared so visible condition and identifying marks can be reviewed.
Industrial modules are handled with attention to connector protection, antistatic precautions and suitable protective packing for shipment.
| Stage | What We Check |
|---|---|
| 1. Request Review | Complete part number, quantity, destination and requested documentation. |
| 2. Product Verification | Label identity, visible condition, packaging and supplied items. |
| 3. Packing Preparation | Connector protection, antistatic handling and shipment-ready packing. |
| 4. Dispatch Coordination | Shipping options, documentation and delivery details are reviewed. |
