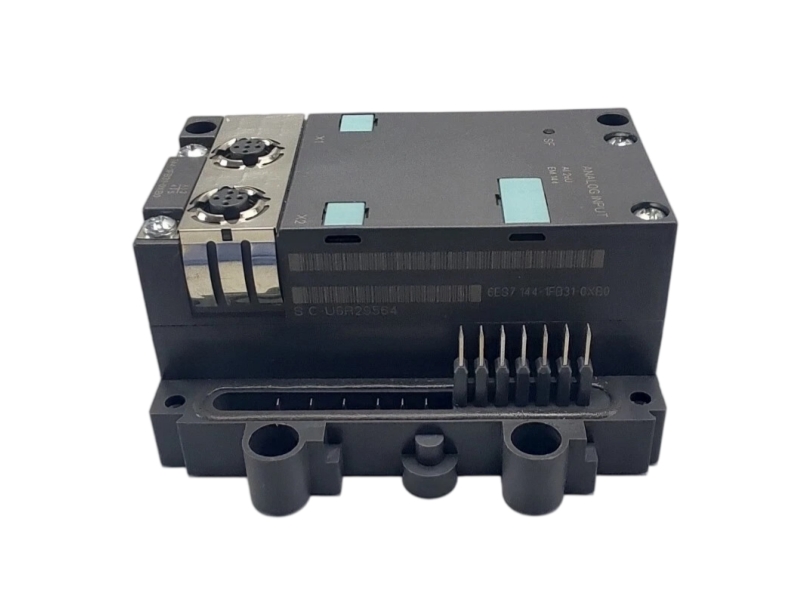

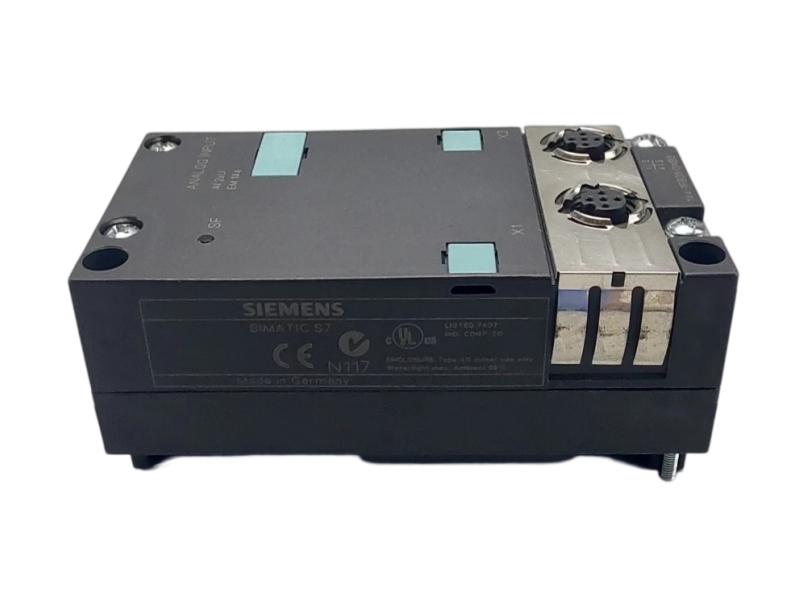

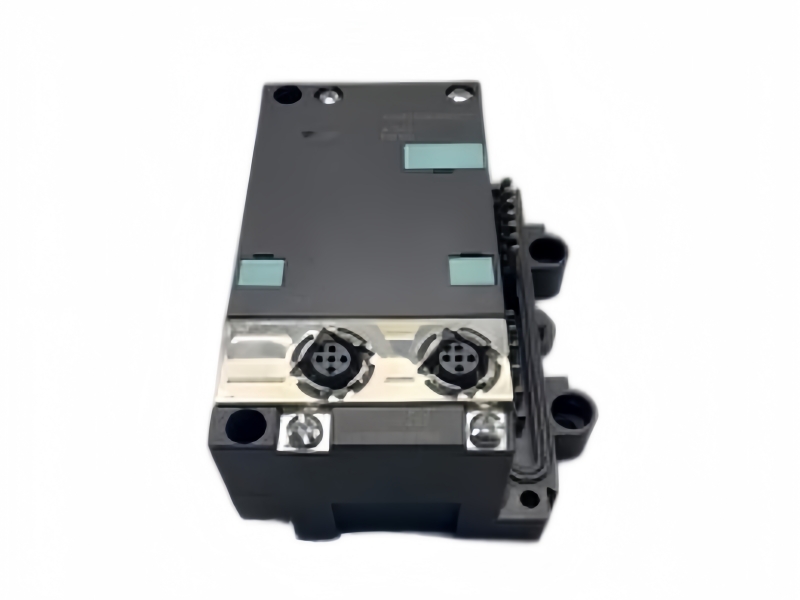

EM 144 expansion module with two ±10 V analog input channels for ET 200X
The Siemens 6ES7144-1FB31-0XB0 is an EM 144 analog input expansion module documented for the SIMATIC ET 200X distributed I/O system. Siemens specifies two voltage inputs with a ±10 V range, 12-bit resolution plus sign and channel-based diagnostics. The module is designed for IP66/67 field installation and uses 4/5-pin M12 circular connectors. Official technical data also identifies parameterizable diagnostics, diagnostic and limit alarms, hardware interrupts, channel overflow or underflow indication and no potential separation between the analog inputs. For replacement work, buyers should verify the complete suffix, ET 200X station design, M12 pin assignment, wiring, parameter set and installed revision.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7144-1FB31-0XB0 |
| Product Type | EM 144 analog input expansion module |
| Series | SIMATIC ET 200X |
| Analog Inputs | 2 voltage inputs |
| Input Range | ±10 V |
| Resolution | 12 bit plus sign |
| Diagnostics | Channel-based, parameterizable |
| Alarms | Diagnostic, limit-value and hardware interrupts |
| Electrical Connection | 4/5-pin M12 circular connectors |
| Potential Separation | No separation between analog inputs |
| Protection Rating | IP66/67 |
| System Fit | SIMATIC ET 200X distributed I/O stations using the EM 144 voltage-input expansion format. |
|---|---|
| Typical Applications | Distributed voltage-signal acquisition, machine instrumentation and field-mounted analog measurement. |
| Maintenance Use | Replacement after matching station configuration, M12 pin assignment, parameter data and hardware revision. |
The official Siemens technical documentation confirms the complete 6ES7144-1FB31-0XB0 module and its configuration. No lifecycle wording is shown here because an exact current lifecycle statement for this complete order code was not confirmed in the official material used for this page.
It identifies the Siemens ET 200X EM 144 expansion module with two ±10 V analog input channels.
No lifecycle conclusion is stated because exact current Siemens lifecycle wording was not confirmed for this order code.
Siemens documents two voltage inputs, a ±10 V range and 12-bit resolution plus sign.
The official technical data specifies 4/5-pin M12 circular connectors.
Verify the full suffix, ET 200X station arrangement, M12 pinout, signal range, diagnostics and project parameters.
