SIEMENS · LOGO! CSM unmanaged

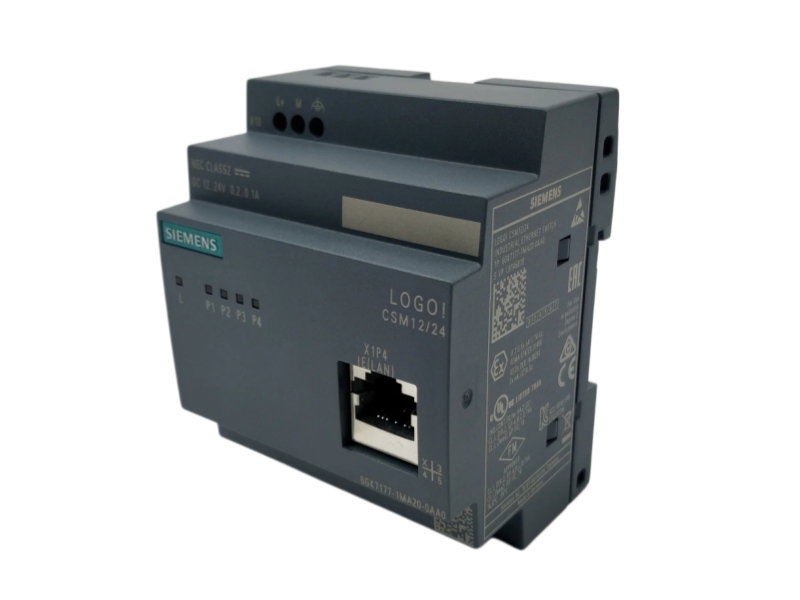

Siemens 6GK7177-1MA20-0AA0 is a LOGO! CSM 12/24 unmanaged compact switch module for connecting a LOGO! controller and additional Industrial Ethernet devices. Its four RJ45 ports support 10/100 Mbit/s communication, while the front port assists diagnostic access. The module is used for compact panel networking, controller expansion and maintenance replacement. Before ordering, verify the complete suffix, LOGO! generation, node count, Ethernet topology, 12/24 V DC supply, mounting method and photographs of the installed product label.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK7177-1MA20-0AA0 |
| Product Type | LOGO! CSM 12/24 Compact Switch Module |
| Series | LOGO! CSM unmanaged |
| Switch Type | Unmanaged Industrial Ethernet switch |
| Transfer Rate | 10/100 Mbit/s |
| Ethernet Ports | 4 RJ45 ports |
| Supply | 12/24 V DC; rated value 24 V DC |
| Mounting | 35 mm DIN rail or wall mounting |
| Dimensions | 71.5 × 90 × 58.2 mm |
| Net Weight | 0.15 kg |
| Product Condition | NEW |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are confirmed in the written quotation. |
1. Map the nodes
List the LOGO! controller and Ethernet devices that will connect to the switch.
2. Confirm the supply
Check the available 12/24 V DC panel supply and terminal arrangement.
3. Plan the topology
Allocate RJ45 ports and cable routes before installation.
4. Document diagnostics
Record LED indications and the front diagnostic connection for maintenance.
Verify the full article number and suffix, LOGO! generation, 12/24 V DC supply, number of Ethernet nodes, port allocation, mounting dimensions, cable type and original product label. Confirm that an unmanaged switch is suitable for the intended network design.
No. Siemens identifies this CSM 12/24 as an unmanaged compact switch.
The module provides four RJ45 ports for 10/100 Mbit/s communication.
Yes. Siemens specifies 35 mm DIN-rail mounting and wall mounting.
Confirm the full suffix, LOGO! generation, supply voltage, topology and installed label.
This page is prepared for NEW condition, subject to written quotation terms.
Worldwide shipping and customs-documentation options are confirmed in the quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
