SCALANCE INDUSTRIAL WIRELESS LAN
Dual-radio industrial WLAN connectivity with rugged M12 interfaces for approved United States operation.

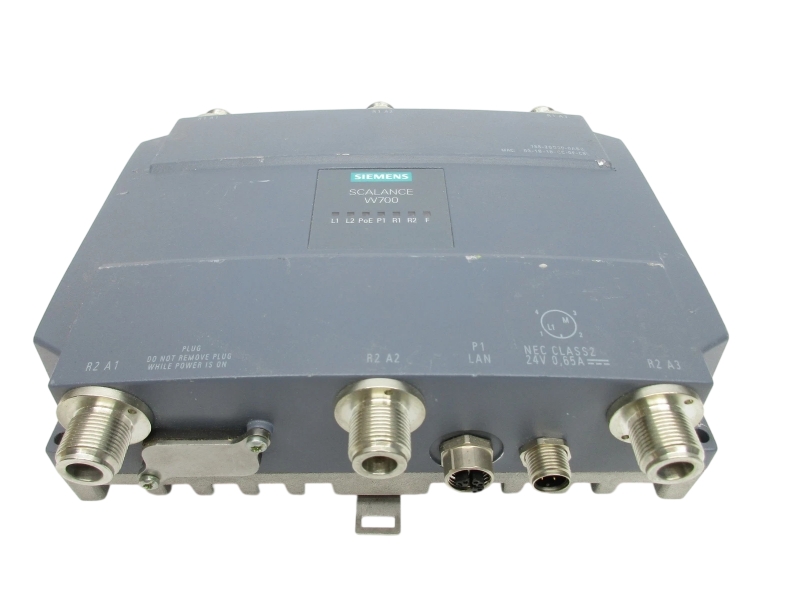

The Siemens 6GK5788-2GD00-0AB0 is a SCALANCE W788-2 M12 industrial WLAN access point configured for operation under applicable United States approvals. Siemens specifies two radio cards, six external N-Connect antenna sockets, M12 Industrial Ethernet, Power over Ethernet and redundant 24 V DC supply capability. The unit supports 2.4 GHz and 5 GHz wireless networks with up to 450 Mbps gross transfer rate per radio. Procurement teams should verify the complete suffix, national approval, antenna arrangement, M12 cabling, power method, firmware, KEY-PLUG requirements and environmental conditions before replacement or deployment.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5788-2GD00-0AB0 |
| Product Type | SCALANCE W788-2 M12 industrial WLAN access point |
| Product Version | W788-2 M12, United States approval version |
| Radio Cards | 2 permanently installed |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum WLAN Transfer Rate | 450 Mbps gross per radio |
| Industrial Ethernet | 10, 100 and 1000 Mbps |
| Network Interface | 1 M12, 8-pole, X-coded, with PoE |
| External Antenna Ports | 6 N-Connect sockets |
| MIMO Configuration | 3 × 3 with 3 spatial streams |
| Power Supply | PoE or redundant 24 V DC via M12 A-coded connection |
| Storage Support | C-PLUG and KEY-PLUG |
| Degree of Protection | IP65 |
| Operating Temperature | -20 °C to +60 °C |
| Country of Origin | GERMANY |
| Industrial WLAN access | Provides wireless connectivity for documented industrial Ethernet networks. |
|---|---|
| Dual-band plant coverage | Supports 2.4 GHz and 5 GHz radio planning with two installed radio cards. |
| Rugged field installation | Uses IP65 housing, M12 Ethernet and external N-Connect antenna connections. |
| Maintenance and migration | Supports exact-order-code replacement planning within existing SCALANCE wireless networks. |
| Complete part number and suffix | Match 6GK5788-2GD00-0AB0 exactly and verify the United States approval requirement. |
|---|---|
| Hardware and firmware | Compare hardware revision, firmware level and configured wireless features. |
| Interfaces and connectors | Confirm X-coded Ethernet M12, A-coded power M12 and six N-Connect antenna ports. |
| Power configuration | Verify PoE use or redundant 24 V DC wiring before installation. |
| Wireless parameters | Review frequency plan, channels, security, SSIDs and antenna configuration. |
| Installation position | Confirm IP65 sealing, temperature range, mounting and radio-clearance requirements. |
| Network architecture | Check Industrial Ethernet speed, roaming design and KEY-PLUG or C-PLUG use. |
| Product evidence | Request full product, nameplate, connector, packaging and condition photos before shipment. |
Siemens lists the product lifecycle as PM400: Announcement of product phase-out, effective since 1 May 2022. This wording is retained as an official phase-out status and is not presented as Discontinued.
It identifies the SCALANCE W788-2 M12 dual-radio access point version approved for operation in the United States.
Siemens specifies two radio cards and six N-Connect sockets for external antennas.
Verify the X-coded M12 Ethernet and PoE interface plus the A-coded redundant 24 V DC connection.
Check national approval, firmware, wireless configuration, antennas, M12 cabling, power and plug storage.
Siemens states PM400: Announcement of product phase-out, effective since 1 May 2022; it is not labeled Discontinued here.
Yes. Buyers can request full product, nameplate, connector, packaging and condition photos for verification.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented procurement, inspection, packaging and delivery workflow helps buyers and engineers review the exact requested item before shipment.
We review the complete suffix, manufacturer label, visible condition and supplied accessories.
Buyers should provide installed-unit photos, interface details and project requirements for a focused review.
Protective handling, shipment coordination, documentation and tracking are arranged for the destination.
| Model and suffix verification | The complete order code is checked against the request, product label and supporting documentation. |
| Condition confirmation | Visible condition, seals, accessories and packaging are reviewed from current product photos. |
| Technical compatibility review | Interfaces, electrical configuration, hardware revision and project requirements are compared before approval. |
| Product and label photo confirmation | Full-unit, nameplate and connector images are checked for readable identity and configuration evidence. |
| Protective packaging | Sensitive industrial hardware is protected with suitable internal cushioning and outer packaging. |
| Worldwide shipping | International shipping options are coordinated according to destination and shipment requirements. |
| Shipment tracking | Tracking information is provided after carrier acceptance when available. |
| Customs documentation | Commercial and shipment documents are prepared for the declared goods and destination. |
| Written warranty terms | Applicable Stockoems warranty terms are supplied in writing with the commercial offer. |
| Return authorization process | Any return request is reviewed through a documented authorization process before goods are sent back. |
| After-sales response | Our team supports post-shipment questions about received condition, documentation and order details. |
Ask for the complete legal and commercial identity, exact model verification, readable label photos, written condition details, traceable communication, packaging arrangements and documented warranty and return terms.
Request current full-product, nameplate, connector, accessory, packaging and condition photos that clearly match the complete order code.
Watch for incomplete suffixes, reused or unreadable photos, inconsistent labels, vague condition statements, unsupported compatibility claims, missing warranty terms and pressure to ship without verification.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
