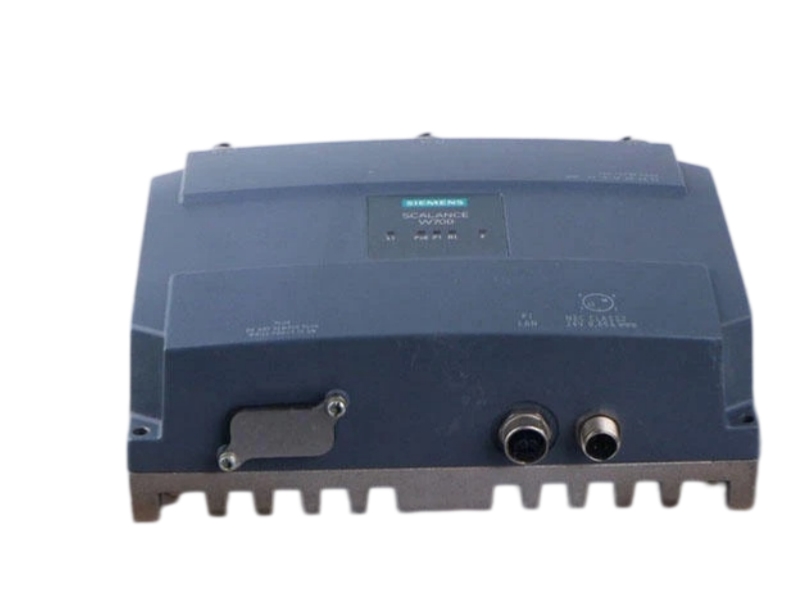

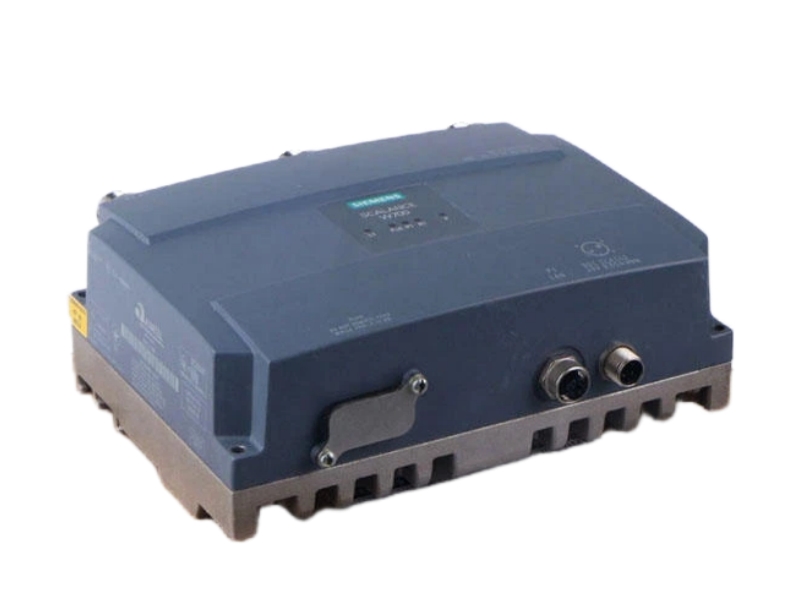

SCALANCE W748-1 M12 · INDUSTRIAL WLAN
Rugged dual-band IWLAN client with M12 Ethernet, PoE and redundant 24 V DC supply.
Siemens 6GK5748-1GD00-0AA0 is a SCALANCE W748-1 M12 industrial wireless LAN client with one radio and three N-Connect antenna ports. It supports IEEE 802.11a/b/g/h/n in the 2.4 and 5 GHz bands, 3x3 MIMO and WLAN throughput up to 450 Mbit/s. A gigabit M12 Ethernet interface supports PoE, while an A-coded M12 connection accepts redundant 24 V DC supply. Procurement checks should cover the complete suffix, national radio approval, antenna system, client-mode network design, KEY-PLUG requirements, addressing, mounting, power method, environmental conditions and readable label evidence.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Product announced for discontinuation |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5748-1GD00-0AA0 |
| Product Designation | SCALANCE W748-1 M12 |
| Product Type | Industrial WLAN client module |
| Operating Mode | Client mode |
| Radio Modules | 1 |
| Wireless Architecture | 3x3 MIMO; 3 spatial streams |

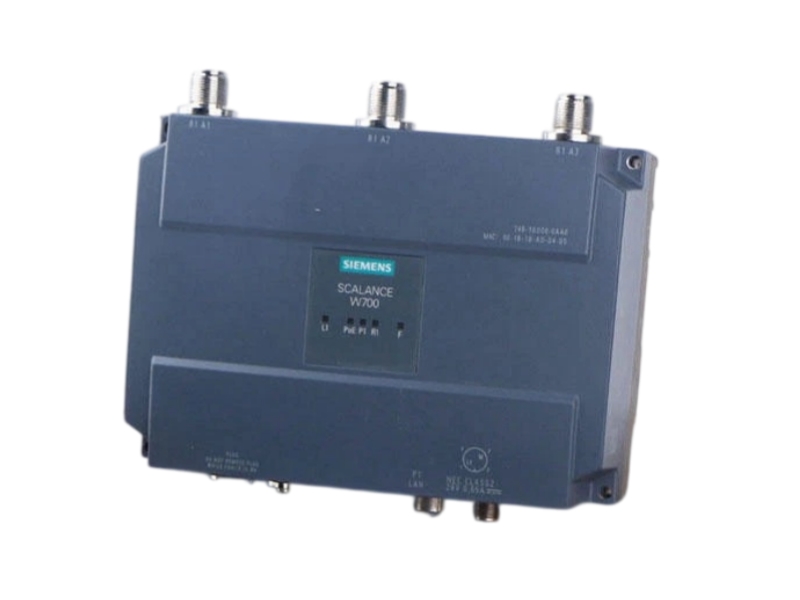

| Antenna Connections | 3 x N-Connect sockets |
| Wireless Standards | IEEE 802.11a/b/g/h/n |
| Frequency Bands | 2.4 GHz and 5 GHz; country approval dependent |
| Maximum WLAN Rate | 450 Mbit/s |
| Industrial Ethernet | 10/100/1000 Mbit/s |
| Network Interface | 1 x 8-pin X-coded M12 with PoE |
| Power Interface | 4-pin A-coded M12; redundant 24 V DC |
| DC Supply Range | 19.2 to 28.8 V |
| Degree of Protection | IP65 |
| Operating Temperature | -20 to +60 °C |
| Dimensions | 200 x 176 x 79 mm without antenna |
| Net Weight | 1.7 kg |
| Country of Origin | Germany |
| Mobile Industrial Equipment | Connects compatible mobile or rotating equipment to an industrial WLAN infrastructure. |
|---|---|
| Client-Mode Networking | Bridges Ethernet devices through a configured SCALANCE wireless client connection. |
| Rugged Installations | Supports IP65 installations after sealing, mounting, antenna and cable requirements are met. |
| Maintenance Replacement | Requires confirmation of radio approval, antenna layout, security settings and network parameters. |
The official Siemens data sheet states that 6GK5748-1GD00-0AA0 is announced for discontinuation. The page retains that wording and does not classify the product as Discontinued.
It identifies the SCALANCE W748-1 M12 industrial WLAN client for operation outside the USA and Israel.
Siemens specifies IEEE 802.11a/b/g/h/n operation in the 2.4 and 5 GHz bands.
The device provides one X-coded M12 Industrial Ethernet interface with up to 1 Gbit/s and PoE support.
No such wording is used here. Siemens states that the product is announced for discontinuation.
Verify the complete suffix, country approval, antenna system, wireless security, KEY-PLUG, M12 cabling, power and configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT AND FULFILMENT
Identity checks, application-aware technical review, documented inspection, careful packaging and international logistics coordination.
| 01 | Model and suffix verification | The complete article number and every suffix character are checked against order records and label evidence. |
|---|---|---|
| 02 | Condition confirmation | Housing, front panel, indicators, connector area, configuration media and supplied accessories are reviewed. |
| 03 | Technical compatibility review | Radio approval, antenna layout, client configuration, M12 interfaces, power method and security settings are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging photos can be requested before approval. |
| 05 | Protective packaging | The module body, front connector area and supplied media are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review under the agreed commercial terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, wiring and installation evidence. |
Check whether the supplier verifies the complete suffix, provides readable label and condition photos, discusses technical compatibility limits, records warranty and return terms, protects the equipment and supplies traceable shipment documents.
Warning signs include blurred or missing labels, substituted suffixes, unsupported parameter claims, unclear condition descriptions, refusal to provide inspection evidence, unrecorded return terms and payment requests that do not match the stated company identity.
