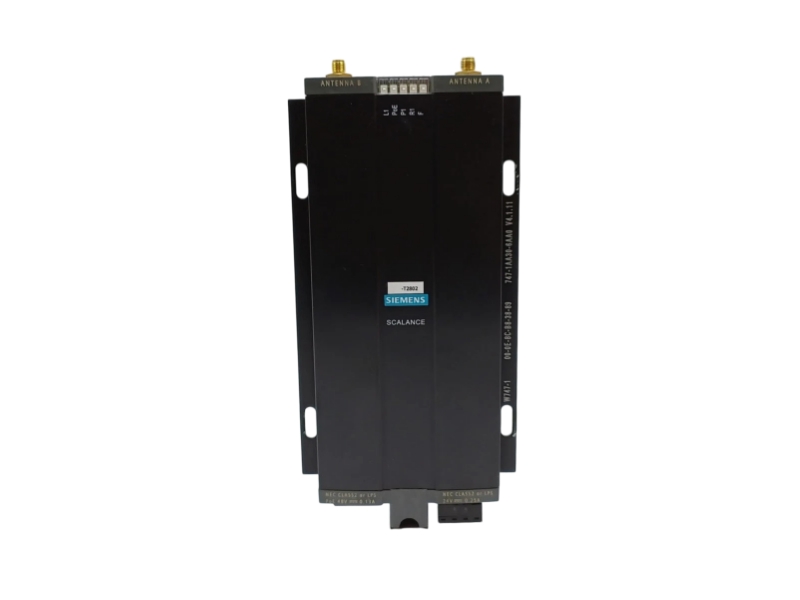

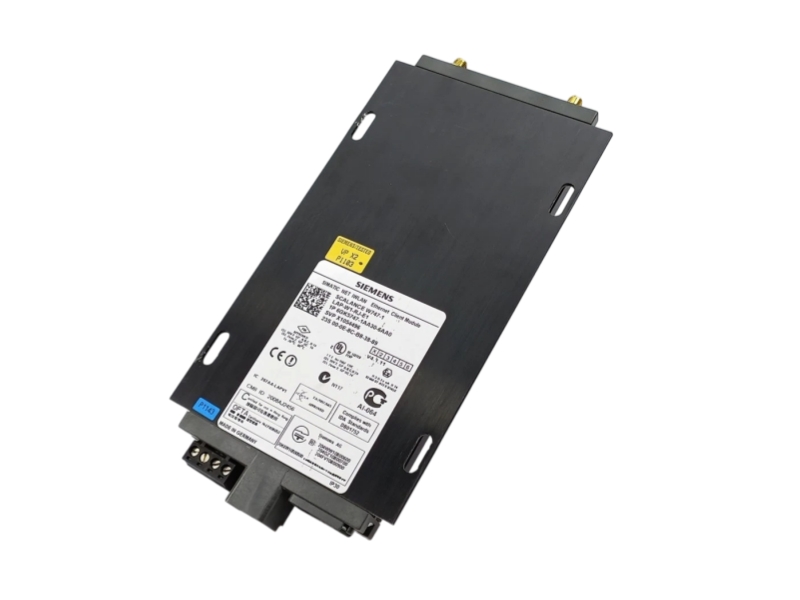

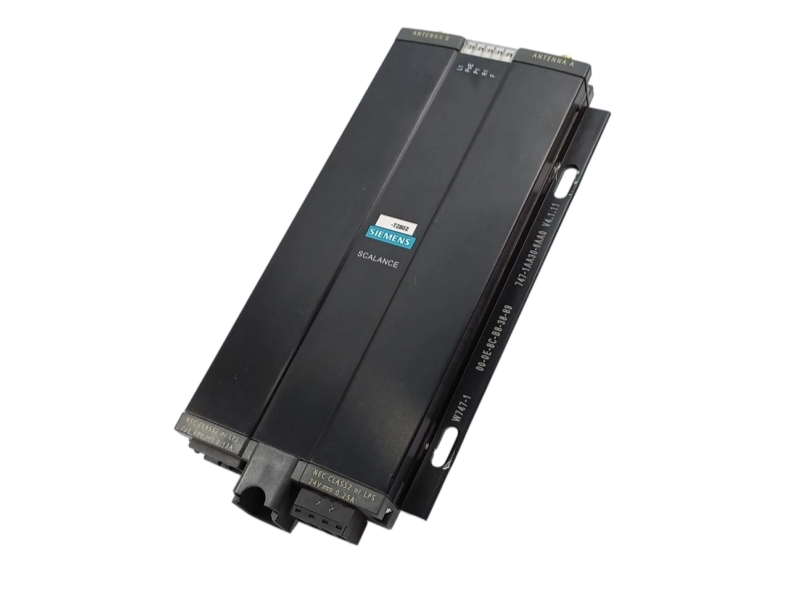

SCALANCE W747-1 with iPCF, one Ethernet port and two external antenna connections
The Siemens 6GK5747-1AA30-6AA0 is a SIMATIC NET SCALANCE W747-1 industrial wireless LAN client with iFeatures. Siemens documents identify this exact order number as the non-US W747-1 variant with iPCF support.
It connects as many as eight IP and eight MAC nodes behind its electrical Ethernet interface to an IWLAN. Two R-SMA sockets accept external antennas, while IEEE 802.11a/b/g/h and Power over Ethernet support flexible machine or cabinet integration.
| Lifecycle | No current article-specific Siemens lifecycle wording was confirmed in the accessible official documents. |
| Official confirmation | Siemens operating and configuration manuals confirm the exact 6GK5747-1AA30-6AA0 order number and W747-1 function. |
| Successor | No article-specific successor was confirmed. |
| Supply approach | Verify order number, national radio approval, hardware/firmware, antenna scope, condition and warranty. |
| Parameter | Official specification | Procurement significance |
|---|---|---|
| Product type | SCALANCE W747-1 IWLAN client with iFeatures | Match W747-1, not W744-1, W746-1 or a US variant. |
| Supported nodes | Up to 8 IP nodes and 8 MAC nodes | Check the downstream Ethernet device count. |
| Industrial feature | iPCF mode supported | Validate compatible IWLAN infrastructure and firmware. |
| Wireless standards | IEEE 802.11a/b/g/h | Confirm country approval, band and channel plan. |
| Wireless rate | 1 to 54 Mbps; 108 Mbps mode stated | Assess application traffic and radio conditions. |
| Ethernet | 1 RJ45 port, 10/100 Mbps | Verify cable, port and connected-device topology. |
| Antennas | 2 R-SMA external antenna sockets | Confirm antenna type, cables and regulatory approval. |
| Power | 24/48 V DC or IEEE 802.3af PoE; 6 W | Check power source and grounding design. |
| Environment | −20 to +60 °C; IP30 | Install in a suitable cabinet or protected location. |
| Size and weight | 100 × 205 × 20 mm; approximately 291 g | Check mounting space and shipment record. |
Bridge Ethernet-equipped machine devices into a validated industrial wireless network.
Support moving or mobile equipment where the complete IWLAN design is engineered for iPCF.
Replace an installed W747-1 while preserving radio approvals, antennas, firmware and security settings.
Confirm 6GK5747-1AA30-6AA0 and avoid the 6AB0 US variant.
Verify national approval, frequency band, encryption policy, SSID and authentication method.
Check access point, iPCF mode, firmware, roaming design, antennas and RF coverage.
Confirm device condition, antenna accessories, mounting parts, documentation, warranty and destination.
Siemens documentation confirms 6GK5747-1AA30-6AA0 as the SCALANCE W747-1 non-US client with iPCF. The accessible official sources did not provide a current article-specific lifecycle code, so no Active, phase-out, cancellation, obsolete or discontinued status has been inferred.
It is a Siemens SCALANCE W747-1 industrial WLAN client with iPCF support.
Siemens specifies up to eight IP nodes and eight MAC nodes behind the client.
The official manual lists IEEE 802.11a, 802.11b, 802.11g and 802.11h.
No. The exact variant, frequency band, antenna and national radio approval must be checked.
Provide the full order number, hardware/firmware, country, access point, antenna scope, quantity and destination.
Request stock verification, radio-region and network compatibility checks, global delivery options and warranty details.
A structured path from article verification and radio compatibility review to protected global delivery.
Order number, regional variant, hardware, firmware and visible condition are checked against the request.
Access point, iPCF, radio band, antenna, security and downstream-node requirements are documented.
Packing, freight route, export documentation, warranty scope and destination details are coordinated.
| Stage | What we verify | Buyer input |
|---|---|---|
| Before quote | Exact article, availability, condition and included scope | Quantity, country and delivery destination |
| Compatibility review | Variant, firmware, iPCF, antennas and radio approval | Access point, security policy and node topology |
| Before shipment | Label, connectors, housing, packing and documents | Receiving requirements and contact details |
Send 6GK5747-1AA30-6AA0, the target country, access point, firmware and antenna requirements for a focused response.
Provide the model, quantity, condition preference and destination so the correct service scope can be prepared.
