SCALANCE XP-200 · MANAGED INDUSTRIAL ETHERNET
Rugged managed Industrial Ethernet switching with M12 connectivity, IP65 protection and redundant-network functions.

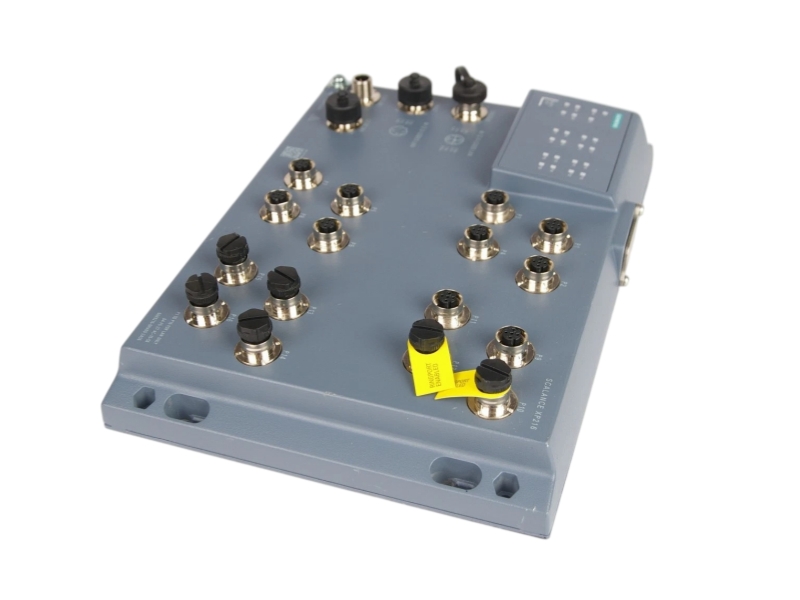

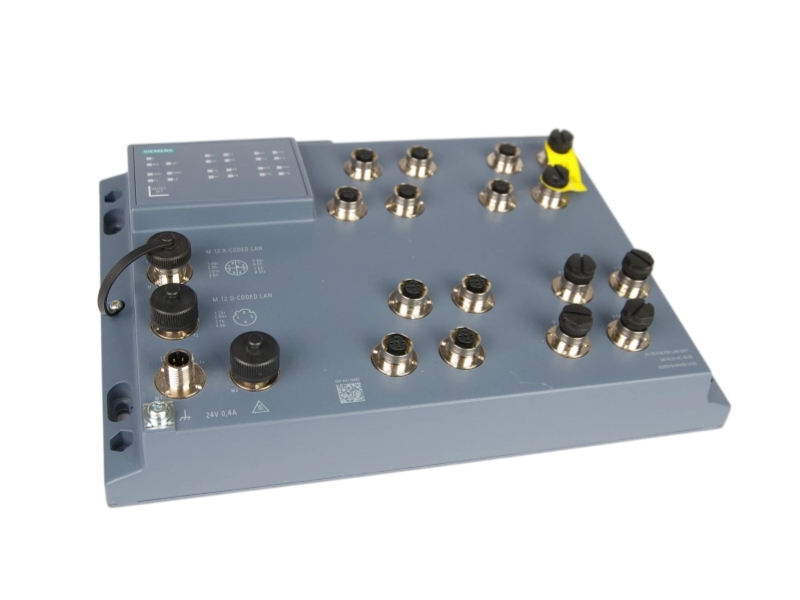

Siemens 6GK5216-0HA00-2AS6 is a SCALANCE XP216 managed Industrial Ethernet switch from the SCALANCE XP-200 family. Siemens specifies twelve 10/100 Mbit/s M12 ports and four 10/100/1000 Mbit/s M12 ports in an IP65 design for machine-level networking. The switch provides LED diagnostics, an error-signaling contact, redundant power supply inputs, PROFINET IO device operation, network management and redundant-ring capability. A C-PLUG is optional. Procurement and replacement work should verify the complete suffix, connector coding, power arrangement, network configuration, redundancy role, firmware and environmental installation requirements before deployment.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product; product phase-out starts 01.10.2026 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5216-0HA00-2AS6 |
| Product Type | SCALANCE XP216 managed Industrial Ethernet switch |
| Product Family | SCALANCE XP-200 managed |
| Fast Ethernet Ports | 12 x 10/100 Mbit/s M12 |
| Gigabit Ethernet Ports | 4 x 10/100/1000 Mbit/s M12 |
| Protection Rating | IP65 |
| Diagnostics | LED diagnostics and error-signaling contact |
| Power | Redundant power supply |
| PROFINET Function | PROFINET IO device |
| Redundancy | Operation in a redundant ring |
| Removable Storage | C-PLUG optional |
| Net Weight | 0.600 kg |
| Country of Origin | Germany |
| Machine-Level Ethernet | Connects IP-rated Ethernet devices through rugged M12 interfaces. |
|---|---|
| Managed PROFINET Networks | Supports managed network functions and operation as a PROFINET IO device. |
| Redundant Ring Architecture | Can operate in a configured redundant ring when network roles and settings match. |
| Maintenance Replacement | Requires matching port count, M12 coding, power, firmware, configuration and redundancy settings. |
Siemens lists PM300: Active Product and states that product phase-out starts on 01.10.2026. This wording is retained without converting it to a discontinued status.
It identifies the SCALANCE XP216 managed Industrial Ethernet switch in the XP-200 family.
Siemens specifies twelve 10/100 Mbit/s M12 ports and four 10/100/1000 Mbit/s M12 ports.
Yes. Siemens states that it can operate in a redundant ring when properly configured.
Siemens lists PM300: Active Product and states that product phase-out starts on 01.10.2026.
Verify the suffix, M12 coding, power, port speeds, firmware, management data, PROFINET settings and ring role.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS PROCUREMENT SUPPORT
Identity control, compatibility review, documented inspection, protective handling and coordinated international logistics.
| 01 | Model and suffix verification | Every character in the requested order code is checked against label and order evidence. |
|---|---|---|
| 02 | Condition confirmation | Housing, labels, interfaces, connectors and supplied items are reviewed. |
| 03 | Technical compatibility review | M12 coding, port speeds, redundant power, firmware, network management, PROFINET identity and ring settings are compared. |
| 04 | Product and label photo confirmation | Readable front, rear, nameplate, connector and packaging images can be requested. |
| 05 | Protective packaging | The product body, interfaces, connectors and supplied accessories are protected for handling and transport. |
| 06 | Worldwide shipping | Available routes are coordinated without promising an unconfirmed delivery date. |
| 07 | Shipment tracking | Tracking information is shared after carrier acceptance. |
| 08 | Customs documentation | Commercial shipment documents are prepared for the confirmed order and destination. |
| 09 | Written warranty terms | Warranty scope is recorded in Stockoems commercial documents. |
| 10 | Return authorization process | Returns require written authorization and review under the agreed commercial terms. |
| 11 | After-sales response | Post-shipment questions are handled with order, label, wiring and installation evidence. |
Look for complete suffix verification, readable label and condition photos, transparent compatibility limits, written warranty and return terms, protective packaging and traceable shipment records.
Warning signs include blurred labels, substituted suffixes, unsupported parameter claims, vague condition descriptions, missing inspection evidence and payment details that do not match the stated company.
