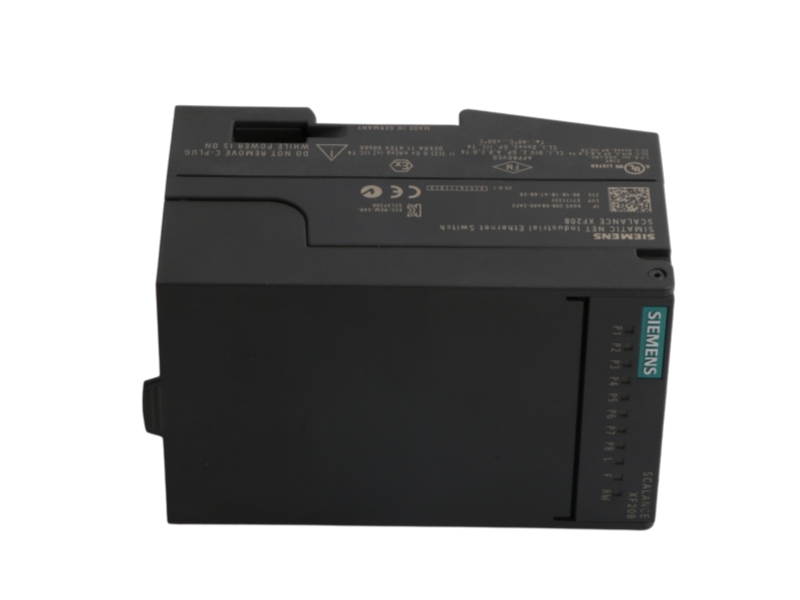

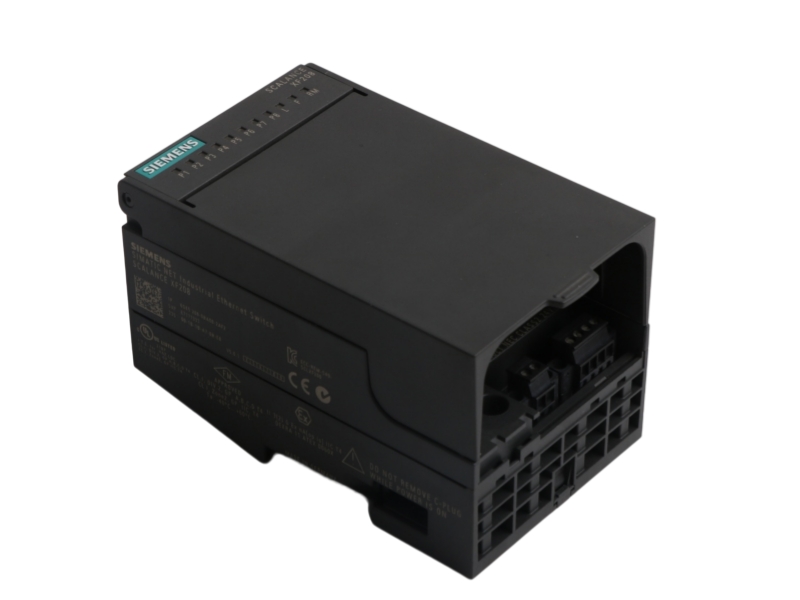

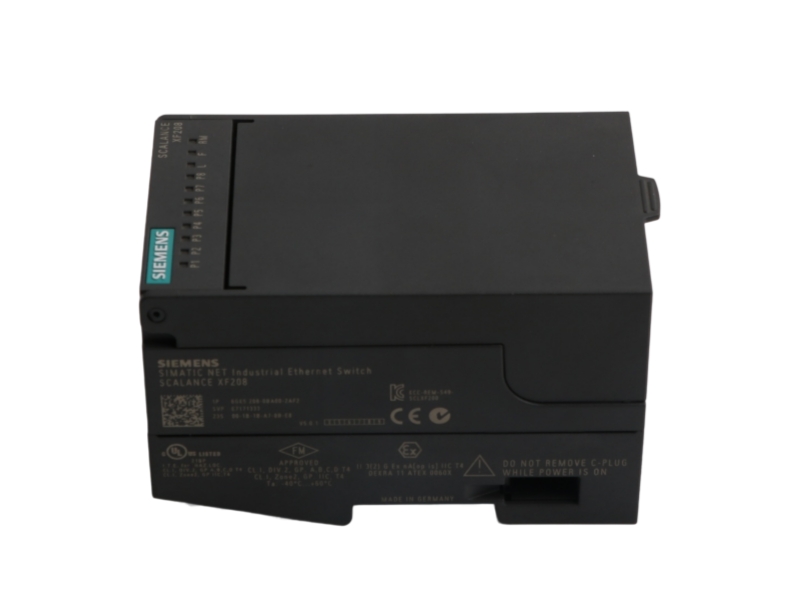

The Siemens 6GK5208-0BA00-2AF2 is a flat SCALANCE XF208 managed industrial Ethernet switch with eight 10/100 Mbit/s RJ45 ports. It supports PROFINET IO diagnostics, web-based management, CLI access, SNMP and network redundancy functions for structured automation networks. A signaling contact, redundant 24 V DC supply connection and optional C-PLUG support help with service and configuration management. The IP20 switch mounts on a 35 mm DIN rail and operates from -40 to +60 °C. Siemens states an announcement of product phase-out effective from 1 May 2025; this wording is not Discontinued.
Condition, availability and warranty are Stockoems commercial terms. The official status follows Siemens catalog wording.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5208-0BA00-2AF2 |
| Series | SCALANCE XF-200 managed |
| Product Type | Managed industrial Ethernet switch |
| Ethernet Ports | 8 × RJ45 |
| Transfer Rate | 10 / 100 Mbit/s |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Range | 18 to 32 V DC |
| Maximum Current Consumption | 0.13 A |
| Rated Power Loss | 3.12 W |
| Signaling Contact | 1 |
| C-PLUG Support | Yes |
| Dimensions | 75 × 125 × 73 mm (W × H × D) |
| Net Weight | 0.25 kg |
| Mounting | 35 mm DIN rail |
| Degree of Protection | IP20 |
| Operating Temperature | -40 to +60 °C |
| Official Life Cycle | Announcement of product phase-out since 01.05.2025 |
Verify the exact suffix 6GK5208-0BA00-2AF2, eight-port topology, 10/100 Mbit/s requirements, 24 V DC supply, temperature range, mounting orientation, redundancy protocol and configuration backup needs before ordering. Existing network settings and C-PLUG use should be documented before replacement.
It is a SCALANCE XF208 managed Layer 2 industrial Ethernet switch.
The switch provides eight 10/100 Mbit/s RJ45 ports.
The official data lists web-based management, CLI, SNMP, port diagnostics and PROFINET IO diagnostics.
It is designed for mounting on a 35 mm DIN rail.
No. Siemens states Announcement of product phase-out since 01.05.2025, which is not the same as Discontinued.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A structured service route for inspection, documentation, packaging, logistics coordination and responsive after-sales communication.
Our team coordinates label checks, inspection records, protective handling, logistics documents and post-delivery communication without promising an unverified delivery date or inventory quantity.
A qualified supplier should verify the complete model and suffix, provide clear condition terms, share product and label photographs, discuss technical compatibility, explain written warranty and return procedures, prepare traceable shipping documents and maintain responsive after-sales communication.
Common risks include vague suffix information, mismatched labels, reused photographs, unsupported technical claims, pressure to accept incomplete documentation, unclear warranty wording, missing return authorization steps and payment requests that do not match the stated company identity.
