Verified product identity, system fit and procurement checks
Product Overview
The Siemens 6GK5206-1BC00-2AF2 is a flat, managed Industrial Ethernet switch from the SCALANCE XF-200 family. It provides six 10/100 Mbit/s RJ45 electrical ports and one 100 Mbit/s BFOC optical port for multimode glass fiber over distances up to 5 km. Official Siemens data lists redundant power supply, PROFINET IO device functionality, network management, an integrated Redundancy Manager, an error signaling contact and optional C-PLUG support. The official lifecycle is PM400: Announcement of product phase-out, with product phase-out since 01.05.2025. Procurement should verify firmware, topology, connector type, optical fiber, redundancy settings and stored device configuration.
Commercial Status
Product Condition
Original new
Availability
In stock
Official Lifecycle
PM400: Announcement of product phase-out; Product phase-out since: 01.05.2025
Warranty
With 1 year warranty
Shipping
Worldwide shipping options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Network management and integrated Redundancy Manager
Configuration Memory
C-PLUG optional
Official Lifecycle
PM400: Announcement of product phase-out
Product Phase-Out Since
01.05.2025
Net Weight
0.414 kg
Country of Origin
Germany

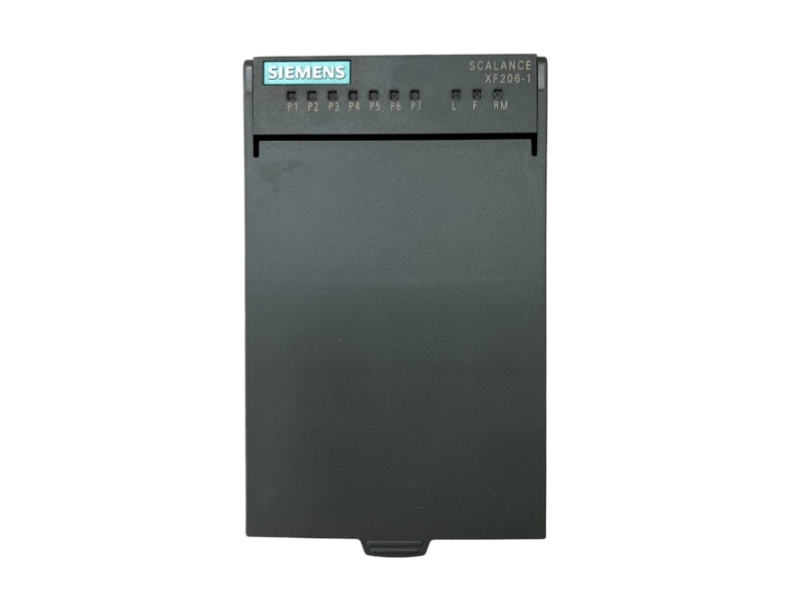

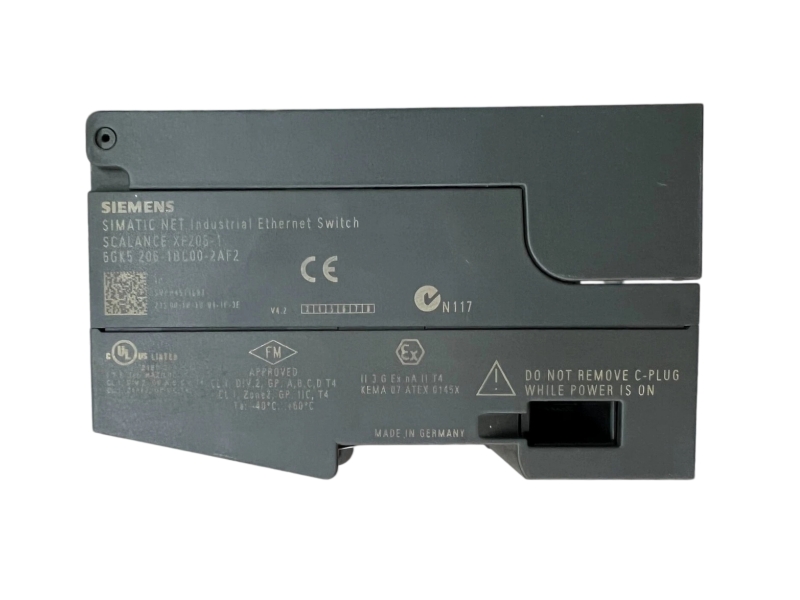

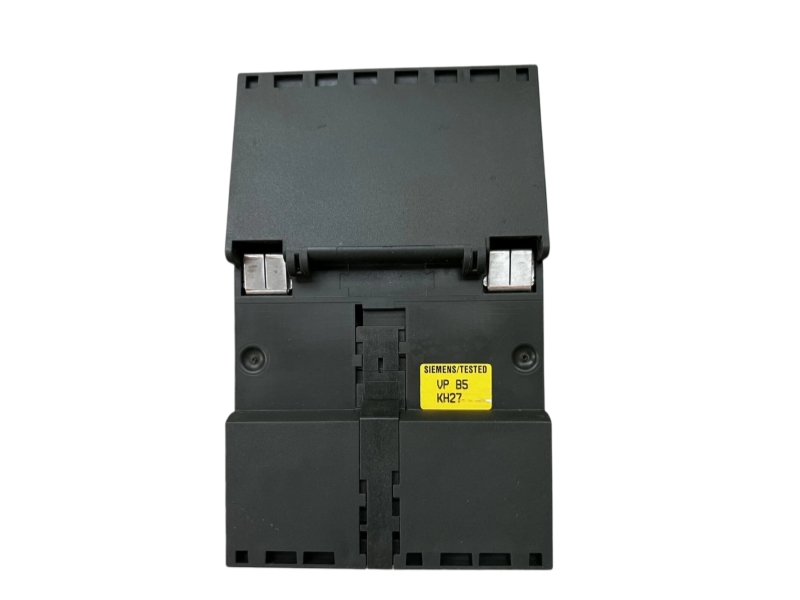

Product Photo Evidence
System Fit and Applications
System Fit
Industrial Ethernet and PROFINET networks using the exact SCALANCE XF206-1 variant
System Role
Managed Layer 2 switching between copper Ethernet segments and a multimode optical network link
Typical Applications
Machine networks, production cells, control-cabinet communication, fiber uplinks and maintenance replacement
Critical Checks
Complete suffix, firmware, six RJ45 ports, BFOC optical interface, multimode fiber, topology, redundancy settings, supply wiring and C-PLUG configuration
Compatibility and Procurement Checks
Confirm the complete suffix, firmware revision, six RJ45 copper ports, BFOC optical connector, multimode fiber type and distance, redundant power wiring, PROFINET device settings, redundancy mode and any C-PLUG data. Similar XF206 or X206 variants can use different connectors and hardware configurations.
Lifecycle Note
Siemens states PM400: Announcement of product phase-out for 6GK5206-1BC00-2AF2, with product phase-out since 01.05.2025. This wording does not mean Discontinued. Siemens notes that a successor product will be available in calendar year 2026 but does not name a specific replacement on the reviewed exact product page. Verify current support and engineering requirements before procurement.
Frequently Asked Questions
What does 6GK5206-1BC00-2AF2 identify?
It identifies a Siemens SCALANCE XF206-1 flat managed Industrial Ethernet switch.
Which network ports are provided?
The official data lists six 10/100 Mbit/s RJ45 ports and one 100 Mbit/s BFOC optical port.
Which optical medium is supported?
The BFOC port is documented for multimode glass fiber over distances up to 5 km.
Which network management functions are included?
Siemens lists PROFINET IO device functionality, network management and an integrated Redundancy Manager.
What is the official lifecycle status?
PM400: Announcement of product phase-out; Product phase-out since: 01.05.2025. This is not stated as Discontinued.
What should be checked before replacement?
Verify the suffix, firmware, RJ45 and BFOC interfaces, fiber type, topology, redundant supply, redundancy settings and C-PLUG data.
Request Product Review
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Structured verification, inspection, packaging and after-sales coordination for 6GK5206-1BC00-2AF2
Service Workflow
Stockoems coordinates commercial and technical checks for Siemens 6GK5206-1BC00-2AF2. The workflow starts with the complete identifier, installed-system role and label evidence, then reviews condition, configuration requirements and shipping documentation without promising unverified compatibility or delivery dates.
Model and Suffix Verification
Compare the complete 6GK5206-1BC00-2AF2 identifier and supplied nameplate against the purchase request.
Condition Confirmation
Review visible condition, seals, connectors, packaging and available inspection evidence.
Technical Compatibility Review
Check the installed system, hardware or firmware revision, interfaces, software and project configuration.
Product and Label Photos
Coordinate clear photographs of the unit, manufacturer label, connectors and packaging where available.
Quality Review
Check item identity and visible condition against the written order details before dispatch preparation.
Protective Packaging
Use appropriate anti-static and impact-protection methods for industrial electronic equipment.
Worldwide Shipping
Coordinate suitable international shipping options after destination and order review.
Shipment Tracking
Provide tracking details after carrier collection and document processing.
Customs Documentation
Prepare commercial shipping documents based on the reviewed order and destination requirements.
Written Warranty Terms
Confirm Stockoems warranty scope and applicable terms in writing with the order.
Return Authorization Process
Use a documented review and authorization process before any return shipment.
After-Sales Response
Coordinate order records, photographs and technical context for efficient follow-up communication.
Our Working Environment
Order and model verification by our office team.Technical documentation and compatibility coordination.Inspection records, packaging and shipment documentation.
Inspection and Documentation
For 6GK5206-1BC00-2AF2, purchasers should retain the quotation, complete identifier, condition statement, label evidence and agreed commercial terms. Engineers should compare the installed hardware, firmware, interfaces, software and project configuration before replacement. Protective packaging, shipping documents and tracking are coordinated after order review.
Written warranty terms, return authorization steps and after-sales contact details are supplied through the commercial process so purchasing and engineering teams have a traceable record.
Supplier Qualification FAQ
How can end users identify a qualified industrial automation source?
Look for complete order-code handling, transparent condition descriptions, traceable communication, clear inspection evidence, written terms and a defined after-sales process.
Which documents, labels and commercial terms should buyers verify?
Verify the quotation, invoice details, full identifier, manufacturer label photographs, condition statement, warranty scope, shipping terms and return authorization process.
How should engineers confirm model, firmware, interfaces and compatibility?
Compare the complete identifier, installed revisions, connectors, electrical requirements, software and project configuration against the existing system documentation.
What warning signs should purchasing teams watch for?
Incomplete identifiers, refusal to provide label images, conflicting technical descriptions, unrealistic delivery promises and no documented return process are important risk signals.
Request Service Support
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
