Rugged SCALANCE X201-3P IRT PRO switching with push-pull copper and POF interfaces.
Siemens 6GK5201-3JR10-2BA6 is the SCALANCE X201-3P IRT PRO managed Industrial Ethernet switch for rugged PROFINET installations. Its official configuration combines one push-pull 10/100 Mbps RJ45 connection with three push-pull 100 Mbps SC-RJ ports for polymer optical fiber. The device functions as a PROFINET IO device and provides network management, an integrated redundancy manager, signaling contact and optional C-PLUG support. It uses 24 V DC power and is designed for high-protection field installation. Before procurement, verify push-pull connector types, optical media, topology, power wiring, firmware, redundancy mode and mounting environment.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK5201-3JR10-2BA6 |
| Product Type | SCALANCE X201-3P IRT PRO managed switch |
| Product Family | SCALANCE X-200IRT PRO managed |
| Transfer Rate | 10/100 Mbps |
| Copper Network Ports | 1 push-pull RJ45 |
| POF Network Ports | 3 push-pull SC-RJ, 100 Mbps |
| Supply Voltage | 24 V DC rated; 18–32 V DC |
| Maximum Current Consumption | 0.22 A |
| Power Loss | 5.28 W |
| Protection | IP65/67 product description |
| Operating Temperature | -40 to +60 °C |
| Dimensions | 90 × 125 × 124 mm |
| Mounting | 35 mm DIN rail |
| Country of Origin | GERMANY |
| Application | Engineering Consideration |
|---|---|
| PROFINET IRT field networks | Use for managed real-time Ethernet connections requiring rugged push-pull interfaces. |
| POF network segments | Connect polymer optical fiber through the three 100 Mbps SC-RJ ports. |
| Ring redundancy | Configure MRP or HRP functions only after reviewing the project redundancy design. |
| Maintenance replacement | Match the exact suffix, connector system, C-PLUG use, firmware and mounting arrangement. |
Siemens lists 6GK5201-3JR10-2BA6 as PM300: Active Product. Procurement should still verify the complete order suffix, firmware, optical media, connector system and project topology before replacement.
It identifies the SCALANCE X201-3P IRT PRO managed Industrial Ethernet switch.

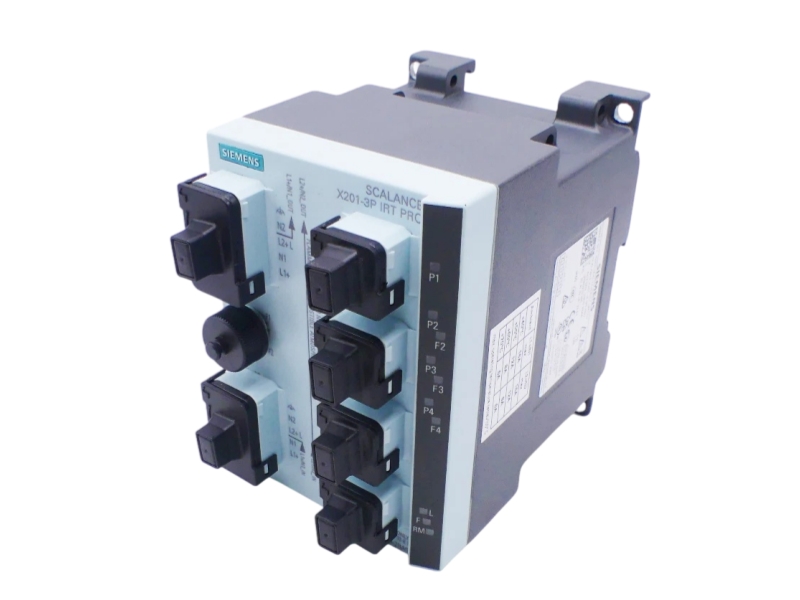

Siemens specifies one push-pull RJ45 port and three push-pull SC-RJ ports for POF.
Yes. Siemens specifies an integrated redundancy manager with supported MRP and HRP functions.
Siemens lists the complete order number as PM300: Active Product.
Verify the 24 V DC rated supply, permissible 18–32 V range and installed power connector.

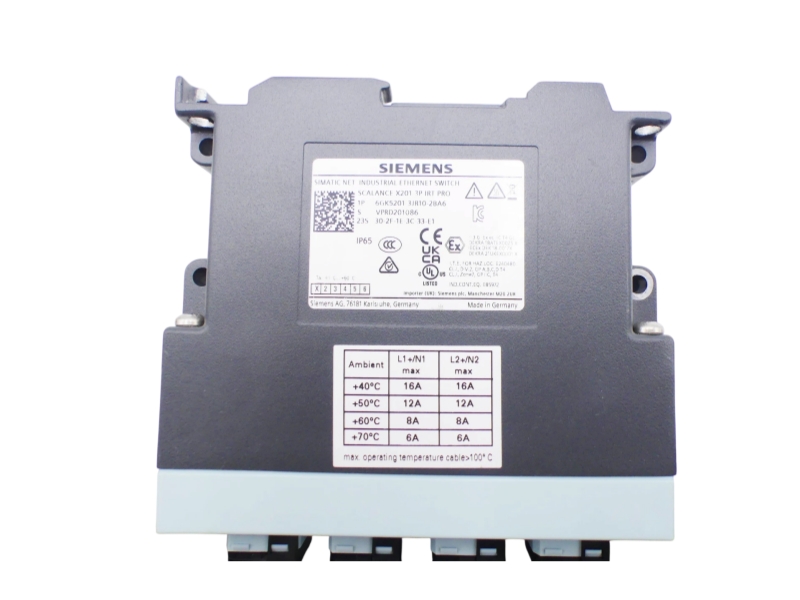

Available port, label, housing, packaging and condition photographs can be reviewed during quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
Support for Siemens 6GK5201-3JR10-2BA6 covers exact suffix, push-pull interfaces, condition evidence, technical compatibility and documented shipment handling.
Exact switch variant, readable label, RJ45 and SC-RJ condition, topology requirements and written commercial terms.
Model and suffix verification, condition confirmation, and product and label photo confirmation are completed against the purchase request.
Push-pull RJ45 and SC-RJ ports, POF media, PROFINET IRT, 24 V DC supply, firmware, redundancy and C-PLUG requirements are checked before recommendation.
Protective packaging, worldwide shipping options, shipment tracking and customs documentation are coordinated for the confirmed destination.
Written warranty terms, the return authorization process and after-sales response channels are supplied with the order documentation.
Require exact order-code verification, readable product-label evidence, clear condition statements, technical compatibility review and written warranty terms.
Request front, connector and label photos, confirmation of the POF interfaces, packing method, shipment tracking and customs documentation.
Mismatched suffixes, damaged push-pull ports, unclear labels, unverified optical media, vague return terms and unsupported delivery promises require further review.
Send the complete model, quantity, destination and available label photos for verification, packaging and shipping review.
