Siemens 6GK1503-2CB00 Optical Link Module

Inquiry now

6GK1503-2CB00 Product datasheet

Model number:	6GK1503-2CB00	Module Type：	Optical Link Module
Manufacture:	Siemens	Condition：	Brand New
Range of Product:	Siemens	Lead time：	In Stock
Weight:	0.95 kg	HS CODE：	8537101190
Dimension:	2.5 cm x 5.1 cm x 83.8 cm	MOQ:	1
Product Origin:	GERMANY	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

6GK1503-2CB00 Functional Description

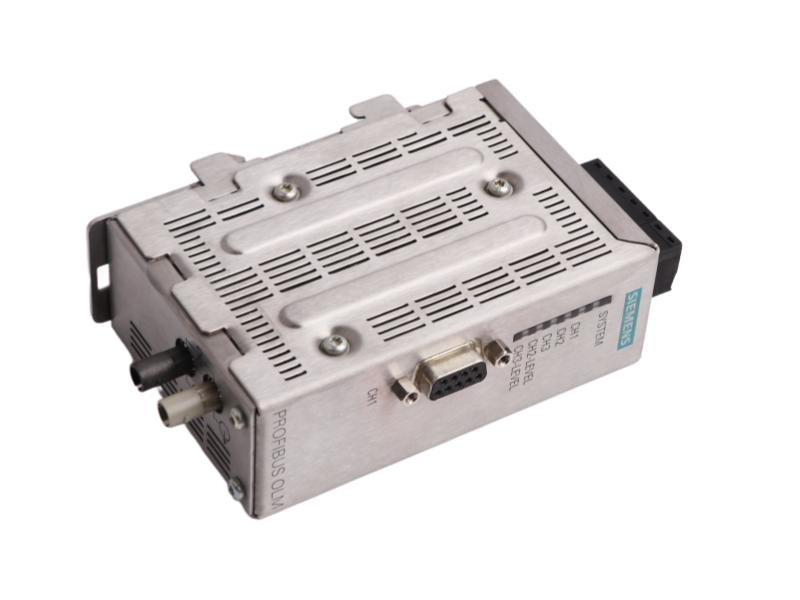

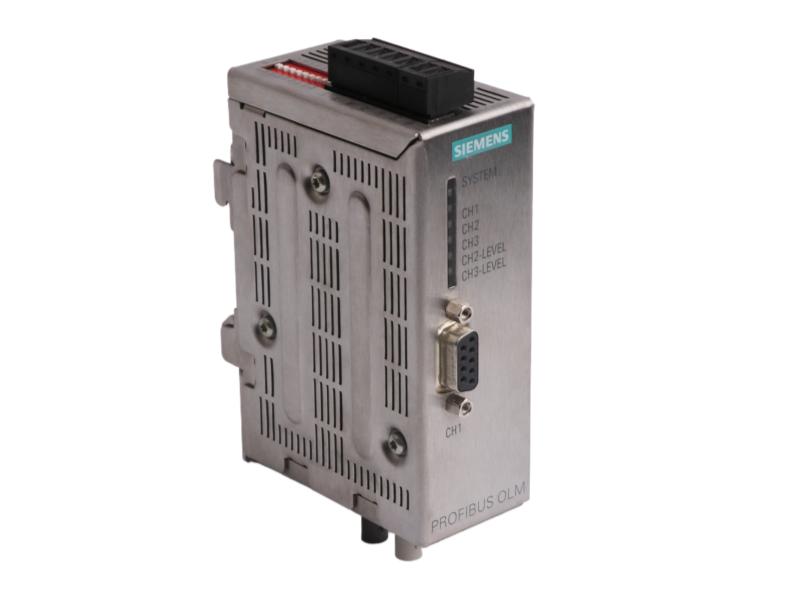

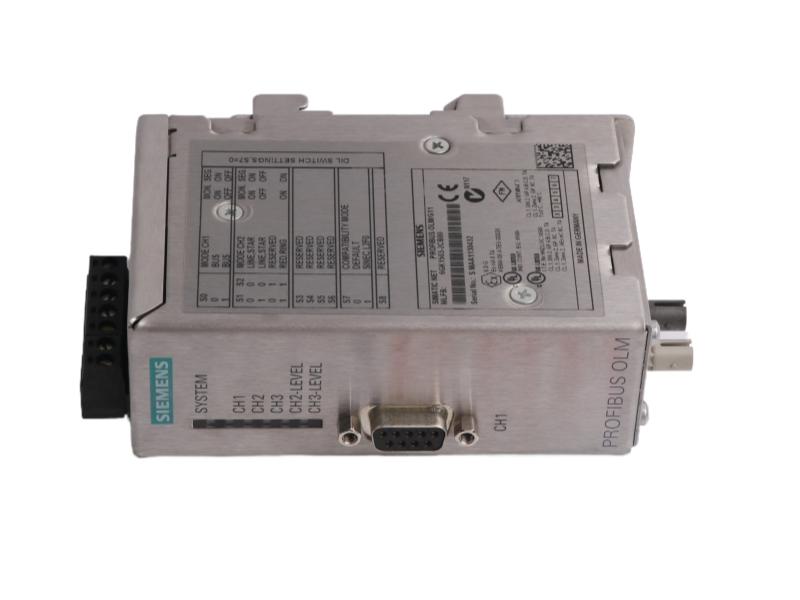

The Siemens 6GK1503-2CB00 Profibus OLM/G11 - V4.0 Optical Link Module is a high-performance PROFIBUS OLM/G11 V4.0 optical link module designed to provide reliable communication in industrial automation networks. It combines one RS485 electrical interface with a single glass fiber optic cable interface, featuring two BFOC sockets, allowing flexible and efficient data transmission over long distances. This integration ensures stable connectivity and precise signal transfer, making it suitable for demanding industrial environments.

The Optical Link Module 6GK1503-2CB00 supports a wide range of PROFIBUS transfer rates, from 9.6 kbit/s to 12 Mbit/s, as well as 45.45 kbit/s for PROFIBUS PA applications. Its versatility allows seamless integration into existing PROFIBUS networks while maintaining high data integrity. The module also includes a signaling contact and a dedicated test port for easy monitoring and maintenance, enhancing operational reliability.

With a rated supply voltage of 24 V DC and an operational range from 18.8 to 28.8 V DC, the Siemens 6GK1503-2CB00 PLC MODULE is designed to function reliably under fluctuating power conditions. SIEMENS 6GK1503-2CB00 also features a built-in fuse at the power supply input to protect the module from potential electrical faults, further increasing system safety and longevity.

Weighing only 0.34 kg, the 6GK1503-2CB00 Siemens Optical Link Module combines compact design with robust performance, providing dependable optical communication in harsh industrial environments. Its durable construction and advanced networking capabilities make it an essential component for maintaining continuous and efficient data exchange in modern automation systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

SIEMENS	6ES7 212-1HE40-0XB0	SIEMENS	6ES7 522-1BH10-0AA0	SIEMENS	3RW5980-0HF00
SIEMENS	6ES7 972-0BB52-0XA0	SIEMENS	6ES7 322-1HF10-0AA0	SIEMENS	7KM3220-0BA01-1DA0
SIEMENS	6ES7 135-7TD00-0AB0	SIEMENS	6AV6 644-0AB01-2AX0	SIEMENS	6GK5116-0BA00-2AC2
SIEMENS	6GK5005-0BA00-1AB2	SIEMENS	6ES7 331-7PF01-0AB0	SIEMENS	6EP1961-3BA21
SIEMENS	6ES7 155-5AA01-0AB0	SIEMENS	6ES7 138-4CA01-0AA0	SIEMENS	6ES7 131-1BL12-0XB0
SIEMENS	6ES7 132-4BD32-0AA0	SIEMENS	6ES7 307-1EA00-0AA0	SIEMENS	6ED1055-1CB00-0BA0
SIEMENS	6ES7 134-4GB11-0AB0	SIEMENS	6GK5004-1BD00-1AB2	SIEMENS	6SE7031-7HH84-1HJ0
SIEMENS	6GK5 204-2BC10-2AA3	SIEMENS	6AV6 641-0BA11-0AX1	SIEMENS	6EP1336-3BA00
SIEMENS	6ES7 193-4DL10-0AA0	SIEMENS	6AV2181-8XP00-0AX0	SIEMENS	6GK5101-1BB00-2AA3
SIEMENS	6GK1500-3AA00	SIEMENS	6ES7 313-5BF03-0AB0	SIEMENS	6ES7 133-1BL11-0XB0

PROFIBUS OLM/G11 - V4.0 Optical Link Module

The Siemens PROFIBUS OLM/G11 - V4.0 Optical Link Module is a reliable communication solution designed for industrial automation networks. It features one RS485 electrical interface and a single glass fiber optic cable interface with two BFOC sockets, enabling stable long-distance data transmission and high signal integrity. Supporting PROFIBUS transfer rates from 9.6 kbit/s to 12 Mbit/s and 45.45 kbit/s for PROFIBUS PA, the module ensures flexible integration into diverse network architectures. Equipped with a signaling contact and a test port, it allows easy monitoring and maintenance, enhancing operational reliability. With a rated DC supply voltage of 24 V and built-in protection at the power input, the Siemens PROFIBUS OLM/G11 - V4.0 offers robust performance and durability in demanding industrial environments, making it essential for efficient and continuous network communication.
