SIMATIC NET · PROFIBUS OPTICAL LINK
PROFIBUS optical link module with one RS485 interface and one glass-fiber interface using two BFOC sockets.

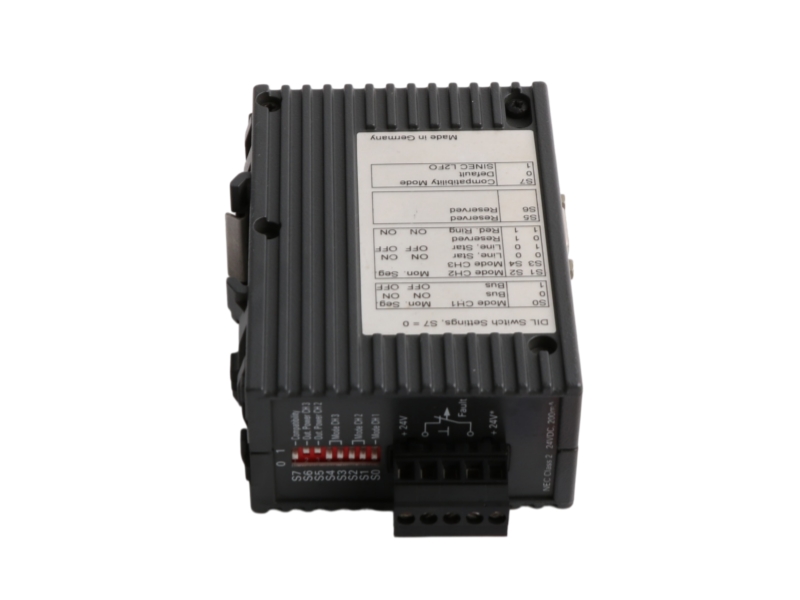

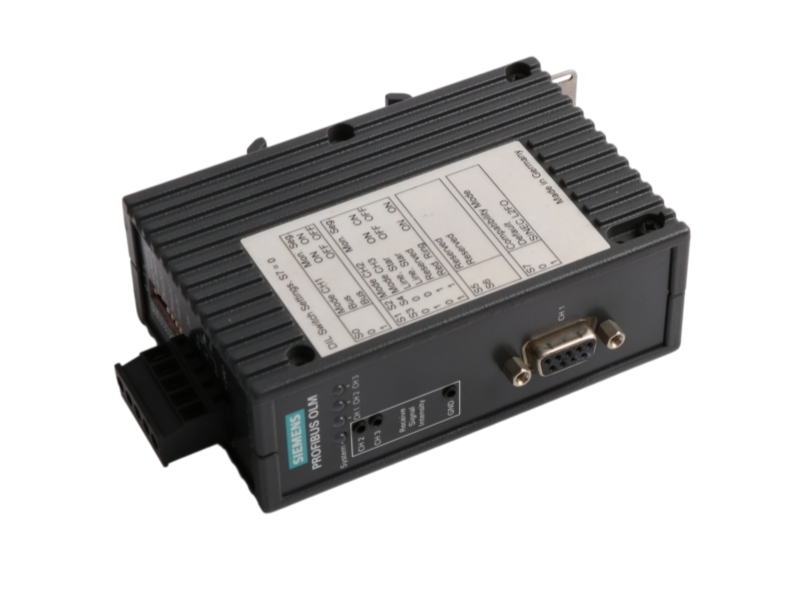

Siemens 6GK1502-2CB10 is the SIMATIC NET PROFIBUS OLM/G11 V3.1 optical link module. It converts a PROFIBUS RS485 segment to a glass-fiber link through one optical channel with two BFOC sockets.
The module includes a signaling contact and test port and supports established PROFIBUS optical topologies. Siemens identifies 6GK1503-2CB00, the OLM/G11 V4.0, as the official successor; migration requires review of connectors, power, mounting and the existing network design.
| Commercial field | Verified Siemens record |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6GK1502-2CB10 |
| Product lifecycle | PM500:Discontinued Product or end of PLM & Support |
| Lifecycle effective date | End of product lifecycle since 2019-01-01 |
| Official designation | PROFIBUS OLM/G11 V3.1 Optical Link Module |
| Product status note | Product is no longer available |
| Official successor | 6GK1503-2CB00 |
| Country of origin | Germany |
| Technical field | Exact-model data |
|---|---|
| Product family | SIMATIC NET PROFIBUS optical link modules |
| Hardware version | OLM/G11 V3.1 |
| Electrical interface | 1 × RS485 |
| Optical interface | 1 × glass-fiber channel |
| Optical connectors | 2 × BFOC sockets |
| Supported network | PROFIBUS |
| Supported data rates | 9.6 kbit/s to 12 Mbit/s |
| Supply requirement | 24 V DC |
| Diagnostic provisions | Signaling contact and test port |
| Official successor type | OLM/G11 V4.0 |
| Packaging dimensions (L × W × H) | 12.6 × 19.2 × 5.0 cm |
| Siemens net weight | 0.600 kg |
| Application | System fit |
|---|---|
| PROFIBUS copper-to-fiber conversion | Couples an RS485 segment to a glass-fiber optical link. |
| EMC-sensitive installations | Optical transmission helps isolate electrically noisy or high-potential-difference network sections. |
| Extended PROFIBUS links | Supports documented point-to-point, line or star arrangements within the qualified OLM topology. |
| Legacy OLM/G11 maintenance | Maintains installed V3.1 networks where the exact interfaces and BFOC optical connection are required. |
Siemens lists 6GK1502-2CB10 as PM500:Discontinued Product or end of PLM & Support, effective since 2019-01-01. The official successor is 6GK1503-2CB00, but it must be engineered and qualified for the installed PROFIBUS optical network.
It is a PROFIBUS OLM/G11 V3.1 optical link module for coupling an RS485 segment to glass fiber.
The exact variant has one RS485 interface and one optical glass-fiber channel with two BFOC sockets.
The OLM family supports standard PROFIBUS data rates from 9.6 kbit/s up to 12 Mbit/s.
No. Siemens classifies the exact order number as PM500:Discontinued Product or end of PLM & Support.
Siemens identifies 6GK1503-2CB00 OLM/G11 V4.0 as the successor; installation compatibility must be checked.
