SIMATIC ET 200eco PN · IP67 DIGITAL INPUT
Field-mounted ET 200eco PN device with eight 24 V DC digital inputs, M12 connectivity and IP65/IP67 protection.

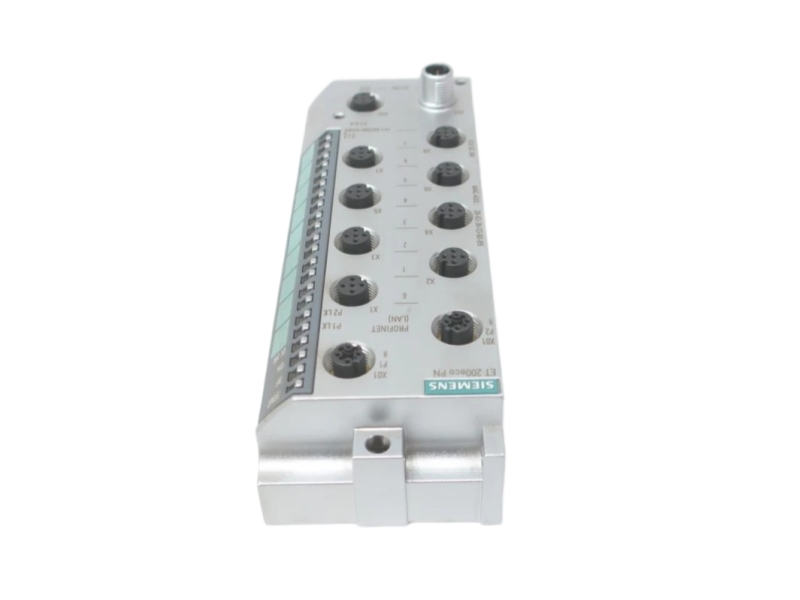

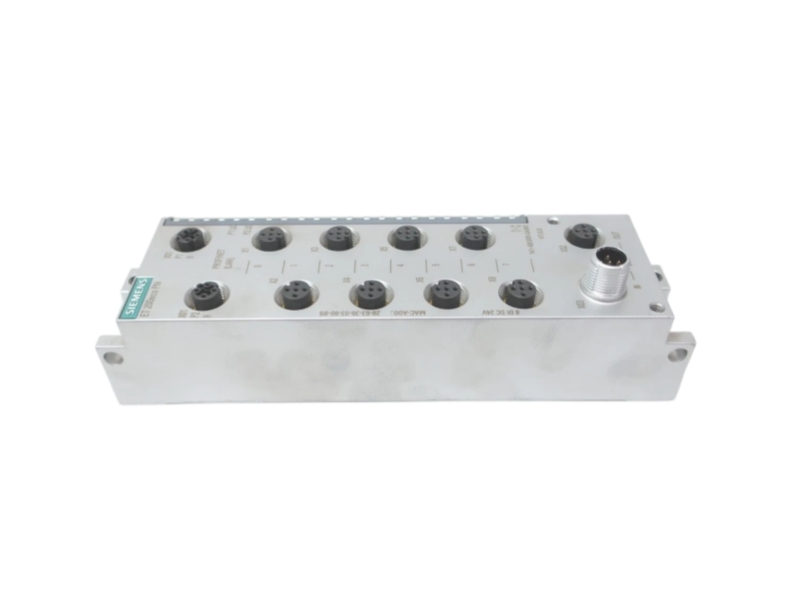

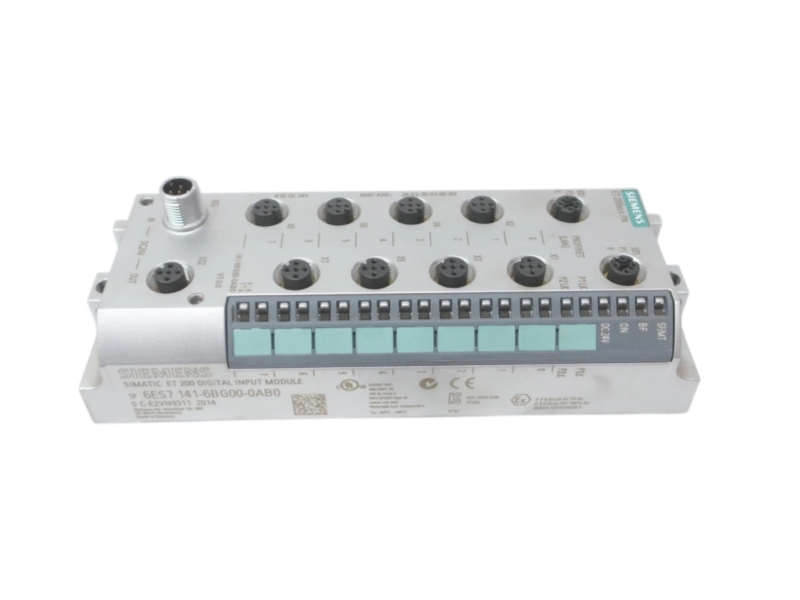

Siemens 6ES7141-6BG00-0AB0 is a SIMATIC ET 200eco PN digital I/O device with eight 24 V DC digital inputs and eight M12 connections. It is designed for machine-level installation without a control cabinet.
The exact module operates as a PROFINET IO device over 100BASE-TX, supports MRP and prioritized startup, and provides channel diagnostics for wire break and sensor-supply short circuit. Procurement must preserve the complete -0AB0 suffix because the newer -0BB0 variant has different electrical and protocol characteristics.
| Commercial field | Verified Siemens record |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7141-6BG00-0AB0 |
| Product lifecycle | PM400:Announcement of product phase-out |
| Lifecycle effective date | Product phase-out since 2024-10-01 |
| Official designation | SIMATIC DP, ET 200eco PN, 8 DI 24 V DC; 8 × M12 |
| Product family | Digital I/O devices |
| Product status note | Spare part; product phase-out announced |
| Country of origin | Germany |
| Technical field | Exact-model data |
|---|---|
| Automation system | SIMATIC ET 200eco PN |
| Module type | Digital I/O device |
| Digital inputs | 8 |
| Rated input voltage | 24 V DC |
| Input characteristic | IEC 61131 Type 3 |
| Typical input current at signal 1 | 7 mA |
| Typical input delay | 3 ms for 0→1 and 1→0 |
| Sensor supply outputs | 8 × 24 V, 100 mA maximum each |
| PROFINET interface | 1 × 100BASE-TX with integrated switch |
| Maximum transmission rate | 100 Mbit/s |
| Supported PROFINET functions | MRP and prioritized startup |
| Connection method | 4/5-pin M12 circular connectors |
| Degree of protection | IP65 / IP67 |
| Typical current consumption | 100 mA |
| Typical power loss | 4.5 W |
| Packaging dimensions (L × W × H) | 7.0 × 19.4 × 5.8 cm |
| Siemens net weight | 0.950 kg |
| Application | System fit |
|---|---|
| Cabinet-free machine I/O | Collects eight 24 V DC digital signals directly at the machine in an IP67 installation. |
| PROFINET distributed I/O | Connects field sensors to a PROFINET IO controller through the integrated Ethernet interface. |
| Diagnostic sensor stations | Reports wire-break and sensor-supply short-circuit diagnostics for supported input circuits. |
| Installed ET 200eco PN maintenance | Maintains the exact M12 connection arrangement and electrical behavior of qualified -0AB0 stations. |
Siemens lists the exact 6ES7141-6BG00-0AB0 with the lifecycle wording PM400:Announcement of product phase-out, with product phase-out effective since 2024-10-01. Replacement planning should preserve the exact input type, M12 arrangement, PROFINET functions and station configuration.
It is an ET 200eco PN field I/O device with eight 24 V DC digital inputs and eight M12 connections.
The module operates as a PROFINET IO device through a 100BASE-TX interface with an integrated switch.
It supports diagnostic reporting for wire break, sensor-supply short circuit, supply monitoring and group errors.
Siemens specifies IP65/IP67 protection when the device is installed and sealed as documented.
Not automatically. The suffix identifies a different variant whose electrical and protocol functions must be reviewed separately.
