SIEMENS SINEC INDUSTRIAL ETHERNET
Extended CP 1430 TF for SIMATIC S5 Industrial Ethernet communication with 1 ms time accuracy.

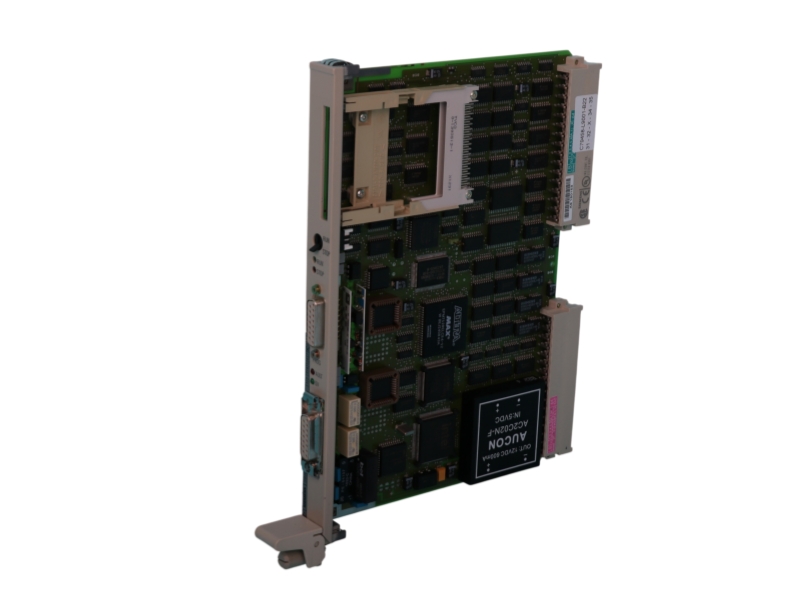

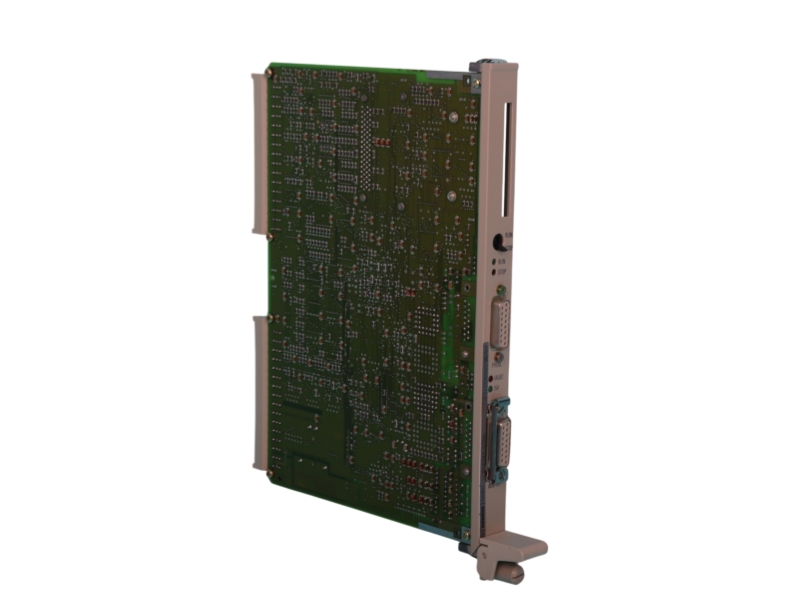

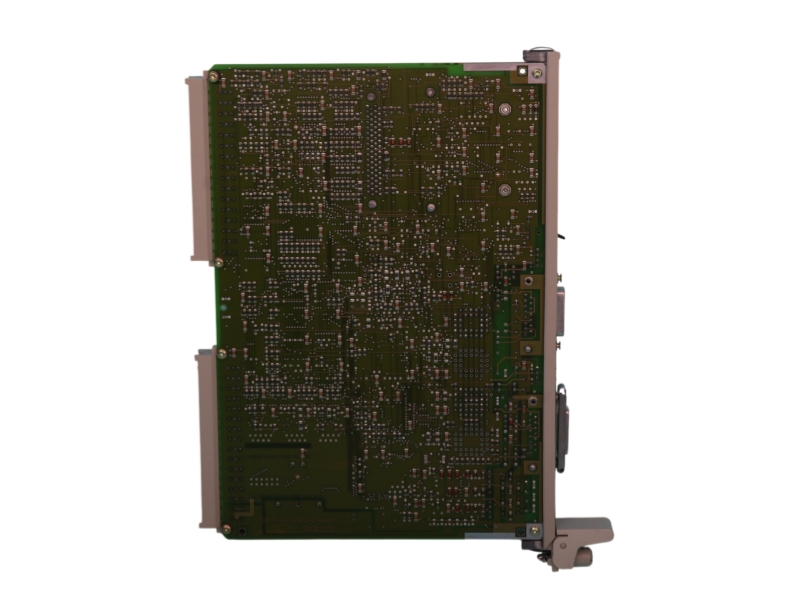

The Siemens 6GK1143-0TB01 is the extended CP 1430 TF communication processor. Siemens documentation describes the CP as a slave processor in a SIMATIC S5 rack, providing Industrial Ethernet communication and TF services.
The extended version is identified with 1 ms time accuracy. Correct procurement depends on the complete MLFB, S5 rack type, CP software version, memory cartridge, transceiver or star-coupler connection and the NCM COM 1430 TF project.
| Manufacturer | Siemens |
|---|---|
| Article number | 6GK1143-0TB01 |
| Official designation | SINEC CP 1430 TF communication processor, extended version |
| Lifecycle (PLM) | PM500: Discontinued Product or end of PLM & Support |
| PLM effective date | End of product lifecycle since 2021-10-01 |
| Replacement note | Product deleted without replacement |
| Parameter | Official value |
|---|---|
| System role | Slave communication processor in the SIMATIC S5 rack |
| Version | Extended version with 1 ms time accuracy |
| Board format | Double-Europe printed-circuit-board format |
| Front width | 1⅓ standard slots |
| Backplane connectors | 2 × 48-contact connectors, ES902 Series 2 |
| Programming-device port | 15-contact female connector with screw locking |
| Industrial Ethernet port | 15-contact female connector for Ethernet transceiver cable or star coupler via Industrial Twisted Pair |
| Memory provision | Front slot for a memory cartridge |
| Internal memory behavior | Dynamic RAM without battery backup |
| Restart after power failure | No warm restart; communication remains disabled until synchronization |
| Released TF functions | Variable, Domain and PI services for extended version from software V3.00E |
| Net weight | 0.553 kg |
| Packaging dimensions | 21.00 × 26.70 × 3.50 cm |
The product identity and lifecycle are from the exact Siemens Industry Mall entry; hardware and software details are from the official CP 1430 TF manual.
Connects a compatible S5 automation system to Industrial Ethernet through the documented CP 1430 TF architecture.
Supports released Variable, Domain and PI services when the extended-version software requirements are met.
Provides the exact communication-processor reference for maintaining existing SINEC and S5 installations.
Siemens lists 6GK1143-0TB01 as PM500: Discontinued Product or end of PLM & Support, with the end of product lifecycle effective since 2021-10-01. The product was deleted without replacement.
It is the extended SINEC CP 1430 TF Industrial Ethernet communication processor.
The official technical manual describes it as a slave processor in a SIMATIC S5 rack.
The front includes a programming-device connector and a separate Ethernet connector for a transceiver or ITP star coupler.
No. Its dynamic RAM is not battery backed, and communication must be re-enabled after synchronization.
PM500: Discontinued Product or end of PLM & Support; lifecycle ended on 2021-10-01.
Send the article number, S5 rack and CPU data, CP software version, memory cartridge, network connection, quantity and destination.
Share the S5 system, CP software, memory and network details, quantity and destination. We will review availability, documentation, compatibility checkpoints, global delivery and applicable warranty terms.
Structured sourcing support for Siemens 6GK1143-0TB01, with exact-suffix control, official-document review, system-fit questions and coordinated global delivery.
A discontinued S5 communication processor requires exact control of the MLFB, rack and CPU, CP software version, memory cartridge, network connection and NCM COM project. Our review does not treat a related CP or modern Ethernet processor as an automatic replacement.
The commercial workflow can include availability checks, condition documentation, packing, export preparation, shipment tracking and clarification of applicable warranty terms. This gives purchasing and maintenance teams a traceable path without treating a similar suffix as an automatic substitute.
We collect the complete 6GK1143-0TB01 reference, visible labels, installed platform, required quantity and delivery destination before the sourcing review begins.
Manufacturer documents are compared with the visible product and installed system data. Lifecycle, software and compatibility questions remain clearly separated from verified facts.
Protective packing, export documents, routing, tracking and applicable warranty scope can be coordinated as one procurement workflow.
The service process considers the installed platform, interfaces, power, software or firmware, accessories and project constraints.
A related article number, revision or successor is never presented as interchangeable without technical confirmation.
Labels, photos, condition records and open compatibility questions can be organized for engineering approval.
Availability, packing, export documentation, shipment tracking and after-sales contacts are handled together.
| Request item | Why it matters |
|---|---|
| Full product identification | Confirms 6GK1143-0TB01, the complete suffix, revision and visible Siemens identification. |
| Installed system and configuration | Supports review of the SIMATIC S5 rack, CPU, CP software, NCM COM 1430 TF project, memory cartridge and Ethernet transceiver or star coupler. |
| Accessories and project records | Clarifies the required cables, connectors, media, licenses, memory or mounting items. |
| Quantity and destination | Supports availability review, packing, export documents and delivery planning. |
Send the full identification, installed-system data, quantity and destination. We will coordinate evidence-based sourcing, technical checkpoints, packing, global delivery and applicable warranty terms.
