SIEMENS SIMATIC NET INDUSTRIAL ETHERNET

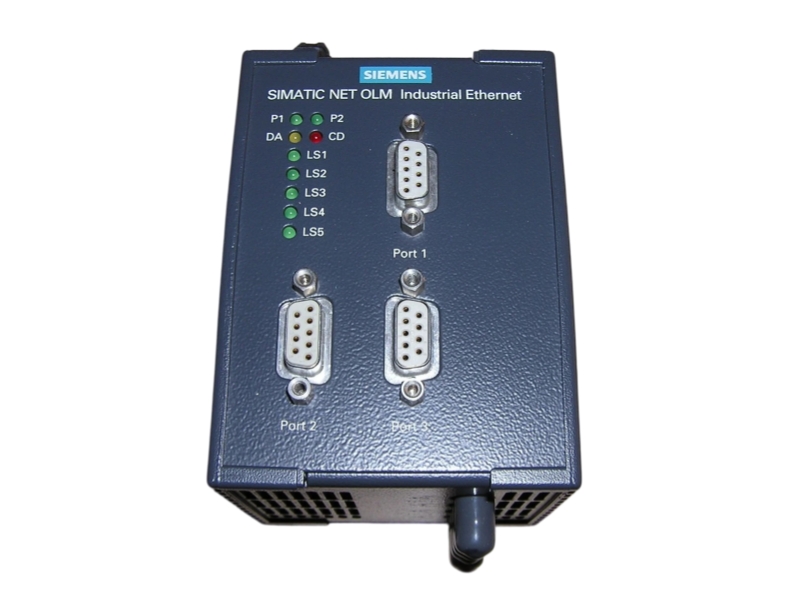

SIMATIC NET OLM V2.0 linking three ITP copper interfaces with two BFOC optical interfaces.

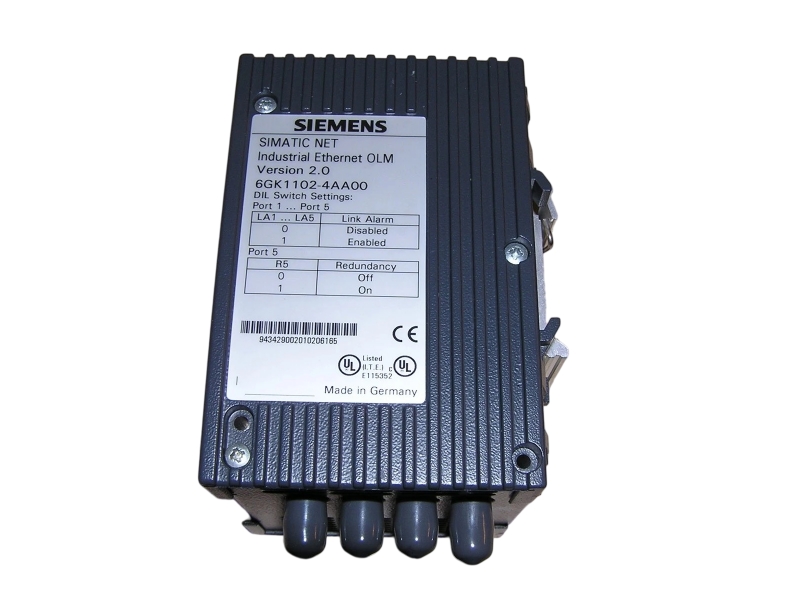

The Siemens 6GK1102-4AA00 is a SIMATIC NET Industrial Ethernet Optical Link Module. The official OLM V2.0 manual specifies three Industrial Twisted Pair interfaces and two BFOC optical interfaces for flexible copper and fiber network construction under IEEE 802.3 / ISO IEC 8802-3.
The module regenerates and retimes received data, restores the preamble and extends short collision fragments. It mounts on a standard rail and supports redundant SELV supply inputs, link diagnostics and a signaling contact.
| Manufacturer | Siemens |
|---|---|
| Article number | 6GK1102-4AA00 |
| Official designation | SIMATIC NET Industrial Ethernet OLM V2.0 |
| Product class | Optical Link Module for Industrial Ethernet |
| Exact lifecycle | Not confirmed in accessible Siemens PLM documentation |
| Parameter | Official value |
|---|---|
| Copper interfaces | 3 × Industrial Twisted Pair (ITP) |
| Optical interfaces | 2 × BFOC |
| Network standard | IEEE 802.3 / ISO IEC 8802-3 |
| Operating voltage | 18 to 32 V DC SELV; redundant inputs decoupled |
| Current consumption | Typical 160 mA; maximum 280 mA at 24 V DC |
| Dimensions (W × H × D) | 80 × 140 × 85 mm |
| Mass | 900 g |
| Operating temperature | 0 to 60 °C |
| Storage temperature | -40 to +80 °C |
| Relative humidity | 10% to 90%, non-condensing |
| Degree of protection | IP30 |
| Maximum ITP segment length | 100 m |
| Example fiber length, 50/125 µm | Up to 2,600 m |
| Example fiber length, 62.5/125 µm | Up to 3,100 m |

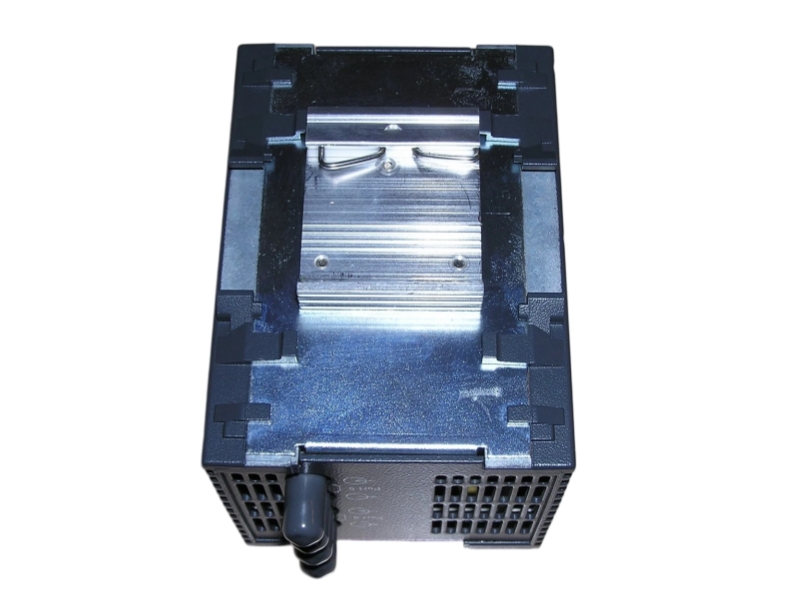

| Mounting | Clips onto a standard rail |
Technical values and interface counts are from the Siemens OLM V2.0 operating instructions for the exact order number.
Connects Industrial Twisted Pair terminal equipment or segments to optical Ethernet links.
The documented multimode fiber examples support network spans beyond copper-segment limits when the full optical budget is verified.
OLM V2.0 provides diagnostic and redundancy functions for structured Industrial Ethernet topologies.
The accessible Siemens replacement guideline identifies OLM/ELM as an older product line generally in product-cancellation or discontinued stages, but the exact PLM wording and effective date for 6GK1102-4AA00 were not retrieved. No more specific lifecycle status is inferred.
It is a SIMATIC NET Industrial Ethernet Optical Link Module, documented as OLM V2.0.
The OLM has three ITP copper interfaces and two BFOC optical interfaces.
Siemens specifies 18 to 32 V DC safety extra-low voltage with decoupled redundant inputs.
The manual gives examples up to 2,600 m for 50/125 µm and 3,100 m for 62.5/125 µm fiber; the actual optical budget must be checked.
No exact PLM wording and effective date were retrieved for the complete order number.
Send the type plate, OLM version, ITP and fiber topology, optical budget, power details, quantity and destination.
Share the OLM version, copper and fiber topology, optical budget, quantity and destination. We will review exact-product sourcing, compatibility checkpoints, global delivery and applicable warranty terms.
Structured sourcing support for Siemens 6GK1102-4AA00, with exact-suffix control, official-document review, system-fit questions and coordinated global delivery.
An Industrial Ethernet OLM request must match the complete article number, hardware version, ITP and BFOC interfaces, fiber type, optical budget, SELV supply and signaling arrangement. The review keeps old OLM functions separate from modern network-device assumptions.
The commercial workflow can include availability checks, condition documentation, packing, export preparation, shipment tracking and clarification of applicable warranty terms. This gives purchasing and maintenance teams a traceable path without treating a similar suffix as an automatic substitute.
We collect the complete 6GK1102-4AA00 reference, visible labels, installed platform, required quantity and delivery destination before the sourcing review begins.
Manufacturer documents are compared with the visible product and installed system data. Lifecycle, software and compatibility questions remain clearly separated from verified facts.
Protective packing, export documents, routing, tracking and applicable warranty scope can be coordinated as one procurement workflow.
The service process considers the installed platform, interfaces, power, software or firmware, accessories and project constraints.
A related article number, revision or successor is never presented as interchangeable without technical confirmation.
Labels, photos, condition records and open compatibility questions can be organized for engineering approval.
Availability, packing, export documentation, shipment tracking and after-sales contacts are handled together.
| Request item | Why it matters |
|---|---|
| Full product identification | Confirms 6GK1102-4AA00, the complete suffix, revision and visible Siemens identification. |
| Installed system and configuration | Supports review of the OLM version, three ITP ports, two BFOC links, fiber type and attenuation, power wiring, signaling contact and rail installation. |
| Accessories and project records | Clarifies the required cables, connectors, media, licenses, memory or mounting items. |
| Quantity and destination | Supports availability review, packing, export documents and delivery planning. |
Send the full identification, installed-system data, quantity and destination. We will coordinate evidence-based sourcing, technical checkpoints, packing, global delivery and applicable warranty terms.
