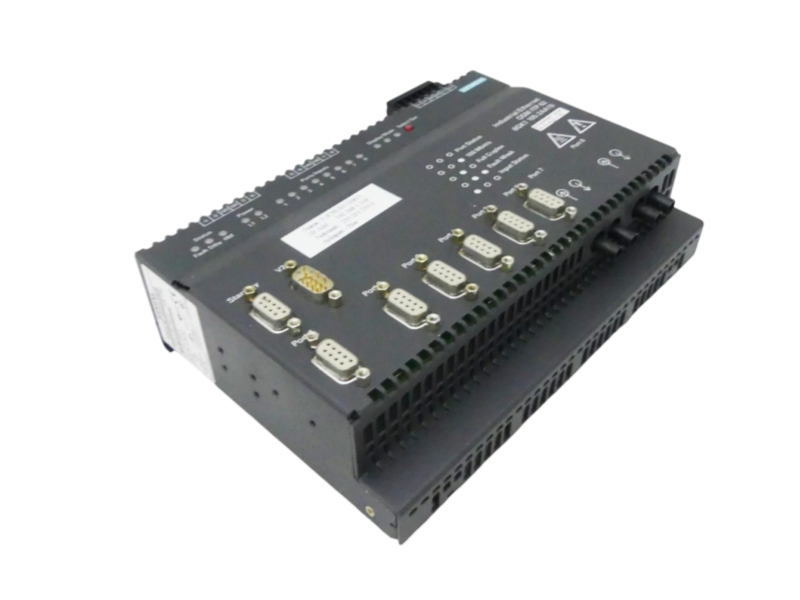

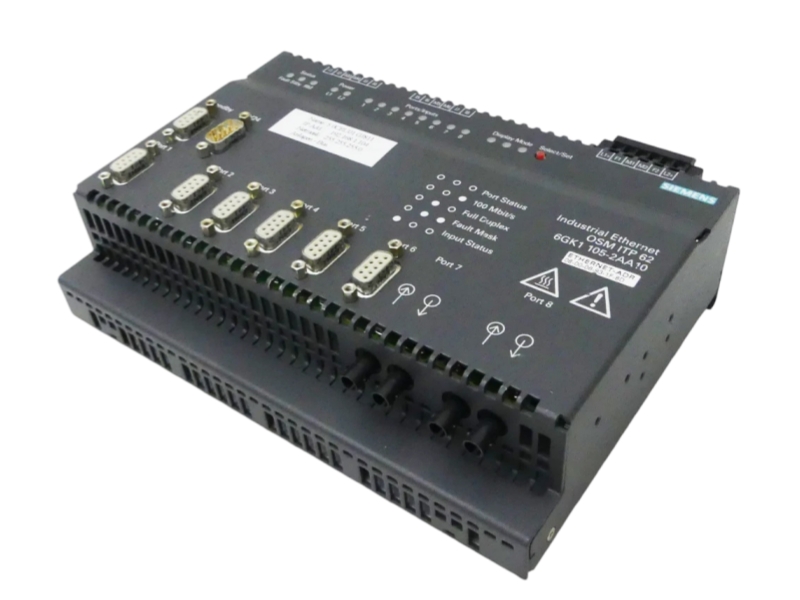

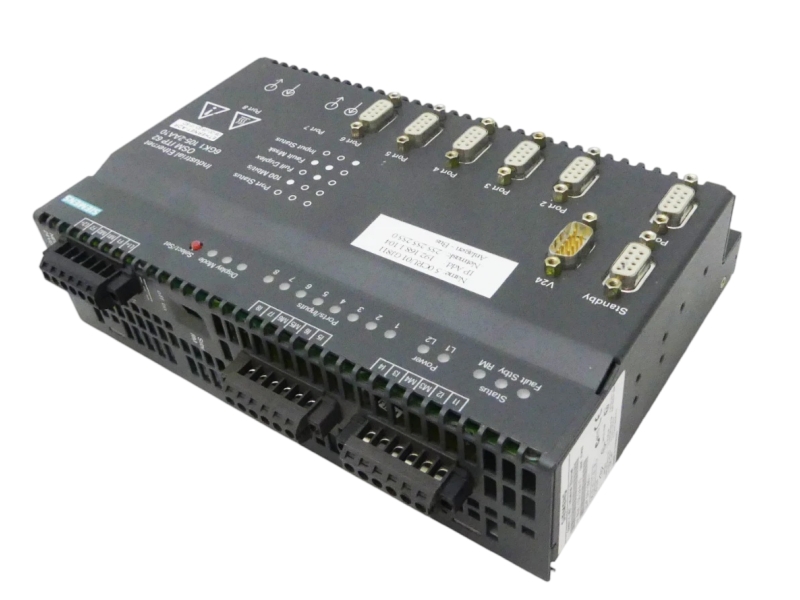

OSM ITP62 switching module with ITP, fiber-optic connectivity and digital inputs.
Siemens 6GK1105-2AA10 is the SIMATIC NET Industrial Ethernet OSM ITP62 with digital inputs. The official operating instructions identify one 9-pin Sub-D ITP connection and two pairs of BFOC fiber-optic sockets for 100BaseFX full-duplex links. Redundant 24 V DC supply inputs accept 18 to 32 V DC. The module supports store-and-forward switching, redundant ring structures and multiple mounting methods for industrial cabinets. Replacement planning should verify the exact order code, digital-input version, connector type, fiber standard, cable attenuation, supply wiring, signaling contact, mounting position and existing network redundancy configuration.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6GK1105-2AA10 |
| Product Type | SIMATIC NET Industrial Ethernet OSM ITP62 with digital inputs |
| ITP Interface | 1 × 9-pin Sub-D female connector |
| Fiber Interfaces | 2 × 2 BFOC sockets; 100BaseFX full duplex |
| Supply | Two redundant 24 V DC inputs |
| Permissible Supply Range | 18 to 32 V DC |
| Power Loss at 24 V DC | 20 W |
| Current Consumption at Rated Voltage | 1000 mA |
| Switching Method | Store and forward |
| Learnable Addresses | Up to 7000 |
| Typical Latency | 4 µs at documented test load |
| Operating Temperature | 0 to +60 °C |
| Degree of Protection | IP20 |
| Dimensions | 217 × 161 × 69 mm |
| Weight | 1.4 kg |
| Mounting | Standard rail, S7-300 rail, wall or 19-inch cubicle |
| Application | Fit Consideration |
|---|---|
| Optical Ethernet backbone | Use BFOC fiber links within the documented cable and attenuation limits. |
| Redundant industrial ring | Review redundancy-manager and standby configuration before replacement. |
| ITP device connection | Match the 9-pin Sub-D ITP connector and existing cabling. |
| Maintenance replacement | Confirm the digital-input version, supply terminals and network settings. |
Siemens official operating instructions confirm the complete order code and OSM ITP62 configuration. No current PLM lifecycle wording was found for this exact suffix, so no lifecycle conclusion is stated.
It identifies the Siemens SIMATIC NET Industrial Ethernet OSM ITP62 with digital inputs.
The official manual lists one 9-pin ITP connector and two pairs of BFOC fiber-optic sockets.
Yes. Siemens documents two decoupled 24 V DC supply inputs with an 18 to 32 V DC range.
No current PLM wording was found for this exact suffix, so this page does not state a lifecycle conclusion.
Verify connectors, fiber parameters, digital inputs, supply wiring, mounting and redundancy configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured network-hardware verification, inspection coordination, protective handling and international logistics for 6GK1105-2AA10.
| Service Checkpoint | What We Review |
|---|---|
| Model and suffix verification | Match 6GK1105-2AA10 exactly against the inquiry, product label and packaging. |
| Condition confirmation | Review housing, terminals, connectors, approval markings and visible condition. |
| Technical compatibility review | Check fiber connectors, ITP interface, digital inputs, power wiring, mounting and ring redundancy records. |
| Product and label photo confirmation | Request readable front, connector, terminal, nameplate and packaging photographs. |
| Protective packaging | Protect the enclosure, connectors and terminal areas against impact, moisture and uncontrolled movement. |
| Worldwide shipping | Coordinate options after destination, quantity, packaging and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance for traceable logistics follow-up. |
| Customs documentation | Prepare commercial documents for the confirmed destination and transaction scope. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before any goods are sent back. |
| After-sales response | Use order records, shipment details and photographs to coordinate technical communication. |
Look for exact suffix verification, readable label evidence, clear condition terms, compatibility questions, written warranty terms and traceable communication.
Request the complete order code, quantity, condition statement, inspection photographs, packaging plan, shipping options, documentation scope and return terms.
Check BFOC fiber parameters, the ITP connector, redundant supply, digital-input wiring, mounting and redundancy configuration.
Warning signs include altered suffixes, unreadable labels, unsupported compatibility claims, vague warranty language and unverifiable stock promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
