WF 705 · POSITION MEASURING MODULE
Twelve-axis SSI absolute-encoder position acquisition for SIMATIC S5 and adapted S7-400 systems.

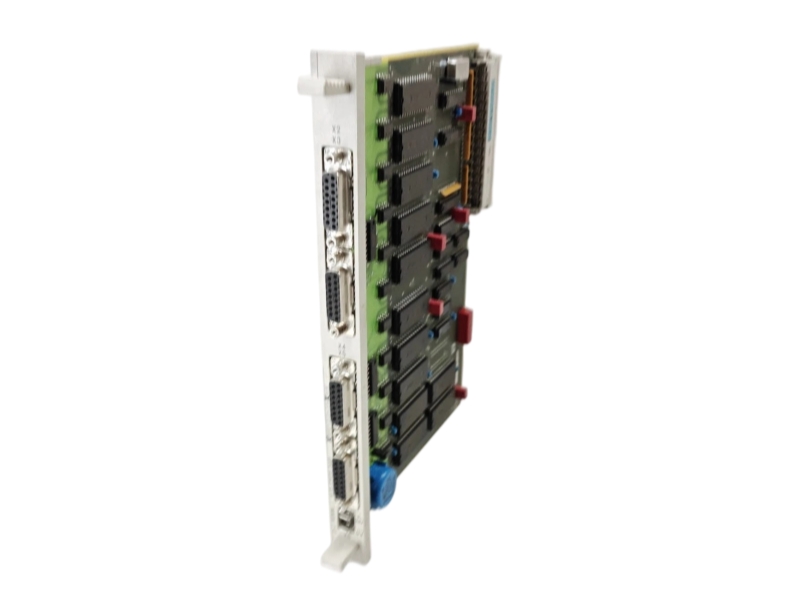

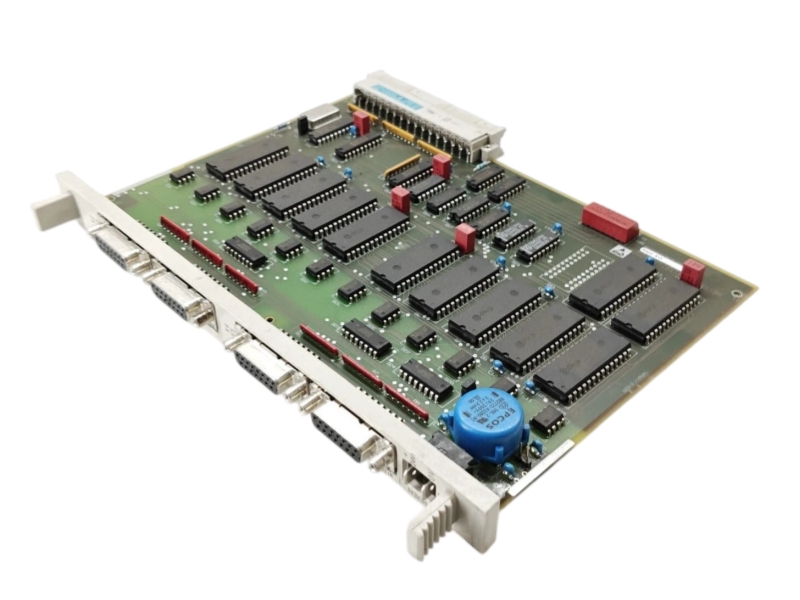

Siemens 6FM1705-3AA00 is the WF 705 position measuring module for acquiring absolute position values from SSI encoders. Siemens documents independent measurement for up to twelve axes using synchronous serial data transmission, with RS422 signaling at 1 Mbit/s for cable lengths up to 25 m or 125 Kbit/s up to 120 m. The module can operate as an I/O module in SIMATIC S5 systems and, through an adapter capsule, in SIMATIC S7-400. Replacement planning should verify the complete suffix, encoder coding and data format, baud rate, cable length, address assignment, direct or distributed encoder connection, rack position, adapter requirements and application software.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6FM1705-3AA00 |
| Product Family | WF 705 |
| Product Type | Position measuring / position decoder module |
| Measured Axes | Up to 12 independently |
| Encoder Interface | SSI absolute encoders with RS422 signaling |
| Transmission Rate / Cable Length | 1 Mbit/s up to 25 m; 125 Kbit/s up to 120 m |
| Peripheral Address Space | 4 bytes |
| Diagnostics | Cable-break and short-circuit monitoring |
| SIMATIC S5 Integration | I/O module for S5-115U, S5-135U and S5-155U |
| SIMATIC S7 Integration | S7-400 through adapter capsule |
| Module Capacity | Up to 8 modules per SIMATIC S5 system, 96 axes total |
| Space Requirement | 1 2/3 SEP in S5; 2 2/3 SEP in S7 adapter capsule |
| Country of Origin | Germany |
| Application Area | How the CPU Is Used |
|---|---|
| Application Area | How the Product Is Used |
| Multi-axis position acquisition | Acquires absolute position values from up to twelve independent SSI encoder axes. |
| SIMATIC S5 automation | Operates as an I/O module in supported S5-115U, S5-135U and S5-155U systems. |
| Adapted S7-400 systems | Can be integrated through the documented adapter capsule where the complete configuration is compatible. |
| Machine and plant maintenance | Supports replacement of an installed WF 705 when encoder format, addressing, software and rack arrangement match. |
Siemens official WF 705 documentation confirms this complete order code and the position measuring module configuration. The consulted official sources do not state a lifecycle classification for this complete suffix, so no lifecycle conclusion is added.
It identifies the Siemens WF 705 position measuring module for SSI absolute-encoder acquisition.
Siemens documents independent measurement for up to twelve SSI encoder axes.
RS422 transmission is specified at 1 Mbit/s up to 25 m or 125 Kbit/s up to 120 m.
Yes, Siemens documents S7-400 use through an adapter capsule; the complete configuration must be checked.
Verify the suffix, encoder format, baud rate, cable length, addressing, rack or adapter, software and wiring.
The consulted Siemens official documentation confirms the product and configuration but does not state a lifecycle classification for this complete suffix.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
STOCKOEMS INDUSTRIAL AUTOMATION SERVICE
A documented service route for Siemens 6FM1705-3AA00 procurement and WF 705 position module replacement planning.
| Control Point | What We Review | Buyer Value |
|---|---|---|
| Identity check | Brand, full order code, suffix and readable nameplate | Reduces module and revision ordering errors |
| Visual inspection | Housing, front connectors, contacts and visible handling condition | Creates a clear pre-shipment condition record |
| Technical context | SSI encoder format, axis count, RS422 rate, cabling, addressing, rack or adapter and software | Supports an informed position-module replacement review |
| Packaging | Cushioning, antistatic handling and outer-box protection | Helps protect the CPU during transport |
| Logistics | Destination, carrier, tracking and customs paperwork | Improves shipment coordination without promising an unconfirmed lead time |
| After-sales | Written warranty, order record and return authorization route | Provides a documented post-delivery contact channel |
Check whether the supplier records the complete part number, provides readable product and label photos, states condition and warranty terms in writing, and avoids unsupported compatibility claims.
Request the commercial offer, complete order code, condition statement, inspection photos, packaging plan, shipping method, warranty terms and return authorization procedure.
Review the WF 705 suffix, SSI encoder coding and data format, axis count, RS422 baud rate, cable length, peripheral address, direct or distributed connection, rack or adapter and software backup.
Risk signals include incomplete suffixes, hidden nameplates, unsupported compatibility claims, pressure to accept another order code, unclear warranty wording and promises of unverified stock or delivery dates.

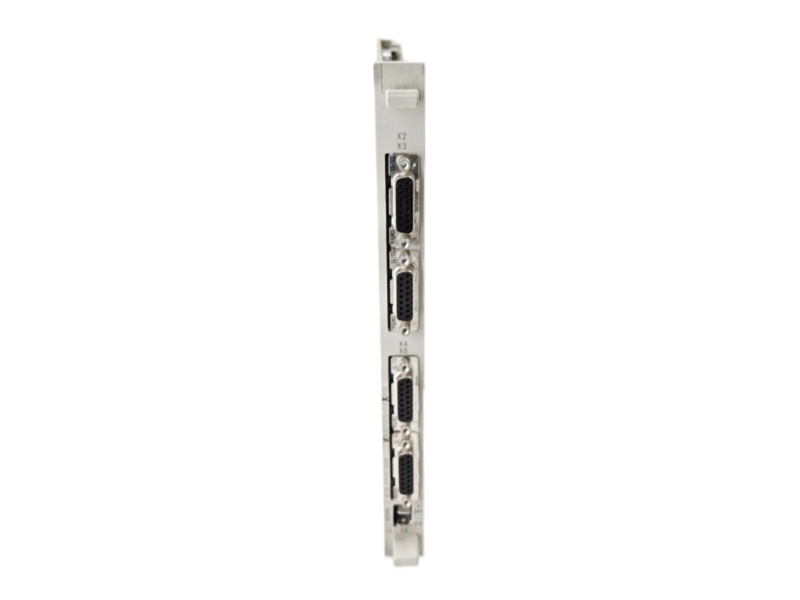

Yes. Available photos can cover the complete module, readable label, front connectors and module contacts, packaging and visible accessories.
