Verified identification, lifecycle context and procurement-focused compatibility guidance for industrial automation maintenance.

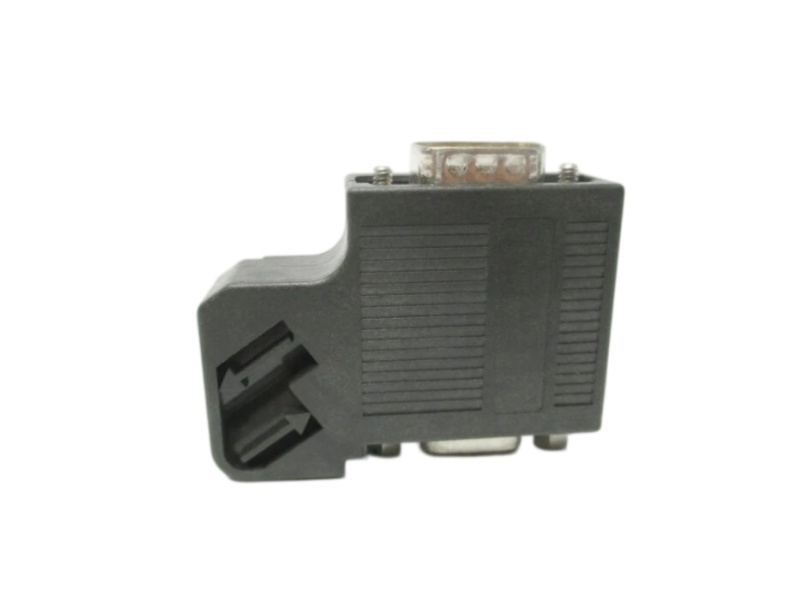

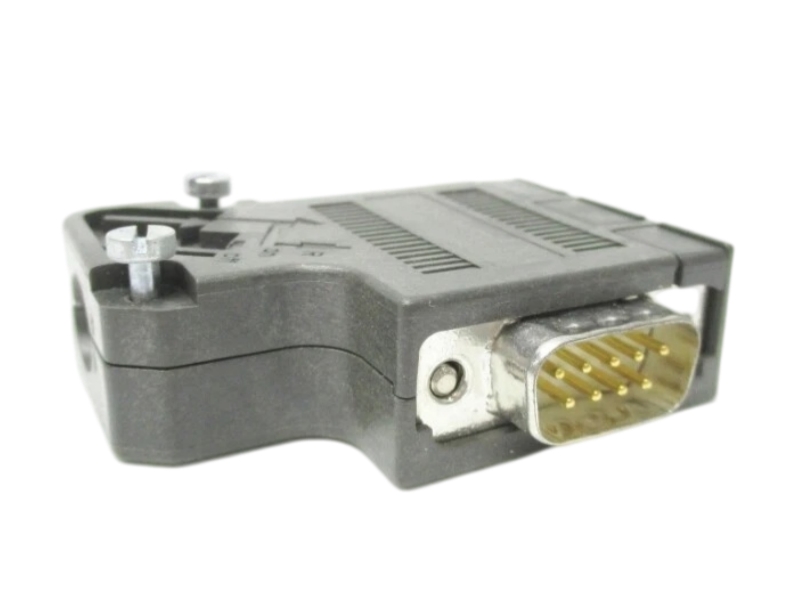

Siemens 6ES7972-0BB41-0XA0 is a PROFIBUS Bus Connector for SIMATIC DP PROFIBUS bus connector. It is used in industrial control systems where the exact interface, electrical configuration and mechanical format must match the installed equipment. Procurement should be based on the complete order number and documented application, not on appearance alone.
| Manufacturer | Siemens |
| Complete part number | 6ES7972-0BB41-0XA0 |
| Product family | SIMATIC DP bus connector |
| Network | PROFIBUS up to 12 Mbit/s |
| Official lifecycle | PM500:Discontinued Product or end of PLM & Support |
| Successor | 6ES7972-0BB42-0XA0 |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| Cable outlet | Inclined | PG socket | Included |
| Connection method | Screw-clamp wiring | Bus termination | Terminating resistor with isolating function |
| Dimensions | 15.8 × 54 × 39.5 mm | Net weight | 0.051 kg |
| Packaging | 6.30 × 7.20 × 5.10 cm | EAN | 4025515067108 |
| Commodity code | 85369010 | Country of origin | Germany |
| Lifecycle end | 19.08.2010 | Successor | 6ES7972-0BB42-0XA0 |
The integrated PG socket supports diagnostic or programming access where the network design requires it.
The angled outlet supports installations where straight rear routing is unsuitable.
Used for exact replacement in systems documented for the BB41 screw-clamp connector.
| Check point | Verification | Procurement note |
|---|---|---|
| Full suffix | Confirm the complete BB41 order number. | BB42, BB50 and BA41 variants differ in generation, cable entry or PG access. |
| PG socket | Verify that an integrated PG socket is required. | BA41 is the corresponding style without the PG socket. |
| Termination method | Confirm screw-clamp wiring and termination-switch requirements. | FastConnect connector families use different cable preparation. |
| Successor review | Assess 6ES7972-0BB42-0XA0 against the installed equipment. | Check dimensions, access clearance and network documentation before replacement. |
Siemens lists 6ES7972-0BB41-0XA0 as PM500:Discontinued Product or end of PLM & Support, effective 19.08.2010. The stated successor is 6ES7972-0BB42-0XA0.
It is a SIMATIC DP PROFIBUS bus connector rated for network speeds up to 12 Mbit/s.

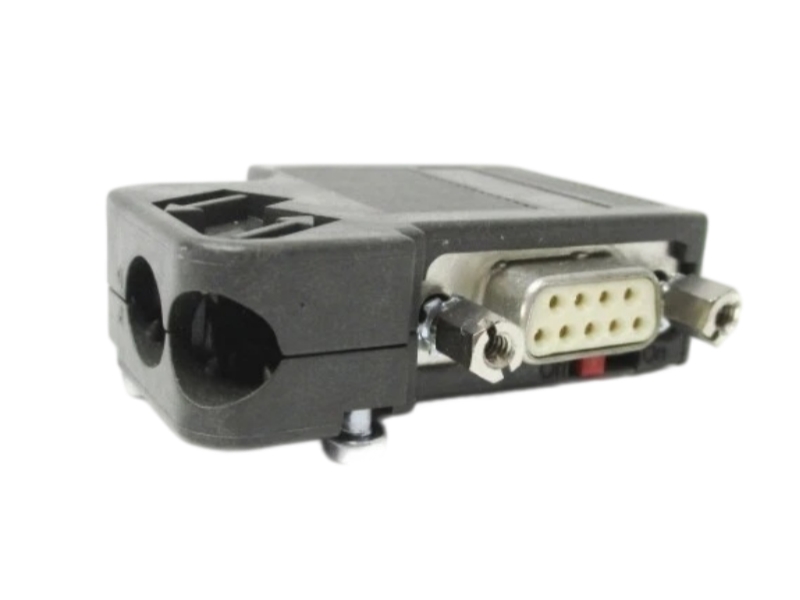

Yes. The BB41 configuration includes a PG socket.
The cable outlet is inclined rather than the 90-degree FastConnect format.
This conventional connector variant uses screw-clamp wiring and includes a terminating resistor with isolating function.
No. Siemens lists it under PM500:Discontinued Product or end of PLM & Support.
Verify the full MLFB, cable-entry geometry, PG access, termination and cabinet clearance.
Send the complete part number 6ES7972-0BB41-0XA0, required quantity, destination and installed-system details for supply review.
For 6ES7972-0BB41-0XA0, we verify the complete order number, functional configuration, lifecycle evidence and installed-system interface before quotation.
Confirm 6ES7972-0BB41-0XA0 and nameplate evidence.
Review the exact system interface, electrical data and mechanical format.
Check housing, terminals or contacts, markings and visible condition.
Prepare protective packing and international shipping documentation.
| Review area | Evidence checked | Procurement value |
|---|---|---|
| Identity control | Full MLFB, suffix and manufacturer markings | Prevents mixing adjacent variants |
| System fit | Installed interface, configuration and clearance | Supports correct physical and functional matching |
| Lifecycle review | Official status and stated successor where applicable | Clarifies legacy-supply and migration decisions |
| Supply control | Condition photos, packaging and shipping documents | Improves traceability and delivery readiness |
Include quantity, destination and photos of the nameplate, mating interface and surrounding installation when available.
Model references only. Verify manufacturer, function, revision and installed-system compatibility independently before ordering.
