Verified identification, lifecycle context and procurement-focused compatibility guidance for industrial automation maintenance.

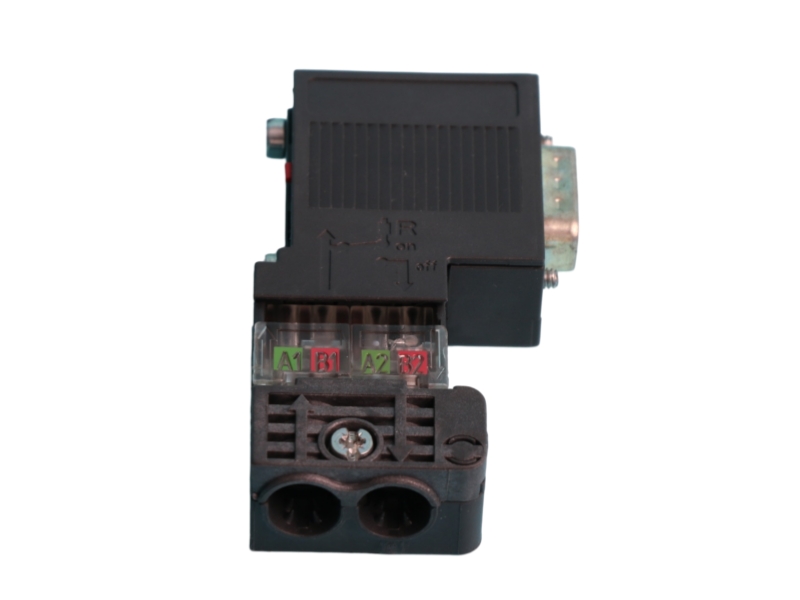

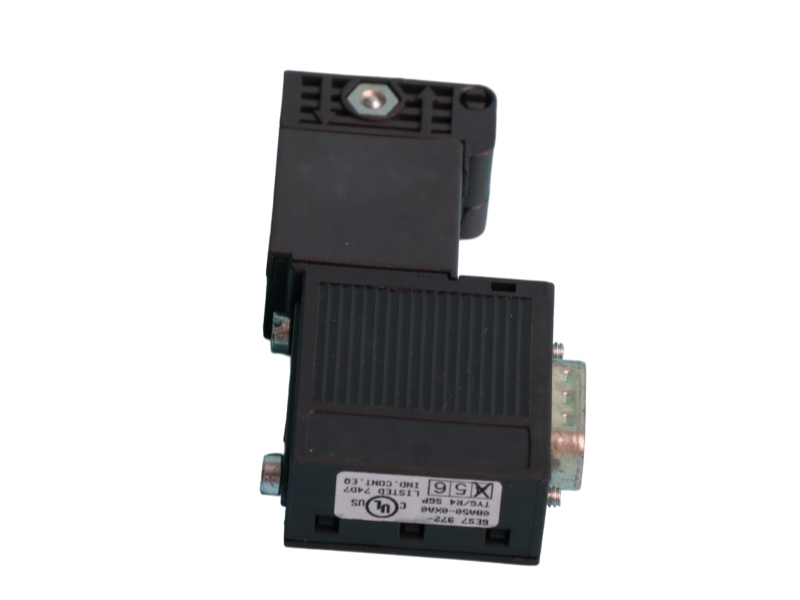

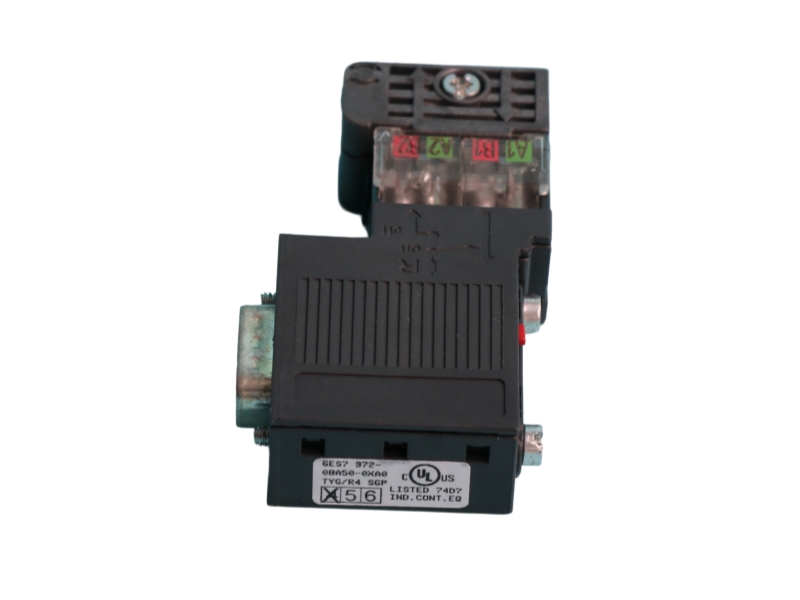

Siemens 6ES7972-0BA50-0XA0 is a Legacy FastConnect PROFIBUS connector for SIMATIC DP PROFIBUS bus connector. It is used in industrial control systems where the exact interface, electrical configuration and mechanical format must match the installed equipment. Procurement should be based on the complete order number and documented application, not on appearance alone.
| Manufacturer | Siemens |
| Complete part number | 6ES7972-0BA50-0XA0 |
| Product family | SIMATIC DP bus connector |
| Network | PROFIBUS up to 12 Mbit/s |
| Official lifecycle | PM500:Discontinued Product or end of PLM & Support |
| Successor | 6ES7972-0BA52-0XA0 |
| Technical item | Verified value | Technical item | Verified value |
|---|---|---|---|
| Cable outlet | 90° | Connection method | FastConnect insulation displacement |
| PG socket | Without PG socket | Dimensions | 15.8 × 72.2 × 36.4 mm |
| Net weight | 0.057 kg | Packaging | 6.30 × 6.40 × 5.10 cm |
| EAN | 4025515062936 | Commodity code | 85369010 |
| RoHS status | Not RoHS-compliant | Country of origin | Germany |
| Lifecycle end | 08.12.2009 | Successor | 6ES7972-0BA52-0XA0 |
Maintains documented 12 Mbit/s device connections using the original BA50 form factor.
FastConnect insulation-displacement wiring supports rapid connection of compatible bus cable.
Useful when an installed machine record requires BA50 and migration to BA52 must be reviewed.
| Check point | Verification | Procurement note |
|---|---|---|
| Exact revision | Confirm the installed connector is BA50. | The active BA52 successor has different published dimensions. |
| PG access | Verify that no PG socket is required. | BB50 and related BB variants include PG access and are not identical. |
| Cable geometry | Measure cabinet clearance for the 90° outlet and 72.2 mm height. | Do not assume the shorter BA52 housing fits identically in a retained layout. |
| Lifecycle planning | Review successor 6ES7972-0BA52-0XA0 for new procurement. | Document network speed, cable type and approval requirements before migration. |
Siemens identifies 6ES7972-0BA50-0XA0 as PM500:Discontinued Product or end of PLM & Support, with lifecycle end on 08.12.2009. The stated successor is 6ES7972-0BA52-0XA0.
It is a legacy SIMATIC DP FastConnect bus connector for PROFIBUS networks up to 12 Mbit/s.
No. This exact BA50 variant is specified without a PG socket.
The official description specifies a 90-degree cable outlet.
No. The BA52 successor has different published dimensions, so mechanical clearance must be checked.
Siemens lists it as PM500:Discontinued Product or end of PLM & Support.
Provide the full MLFB, quantity, destination, cable type and photos showing the existing connector clearance.
Send the complete part number 6ES7972-0BA50-0XA0, required quantity, destination and installed-system details for supply review.
For 6ES7972-0BA50-0XA0, we verify the complete order number, functional configuration, lifecycle evidence and installed-system interface before quotation.
Confirm 6ES7972-0BA50-0XA0 and nameplate evidence.
Review the exact system interface, electrical data and mechanical format.
Check housing, terminals or contacts, markings and visible condition.
Prepare protective packing and international shipping documentation.
| Review area | Evidence checked | Procurement value |
|---|---|---|
| Identity control | Full MLFB, suffix and manufacturer markings | Prevents mixing adjacent variants |
| System fit | Installed interface, configuration and clearance | Supports correct physical and functional matching |
| Lifecycle review | Official status and stated successor where applicable | Clarifies legacy-supply and migration decisions |
| Supply control | Condition photos, packaging and shipping documents | Improves traceability and delivery readiness |
Include quantity, destination and photos of the nameplate, mating interface and surrounding installation when available.
