35-degree RS485 FastConnect bus connector for PROFIBUS DP networks operating at up to 12 Mbit/s.

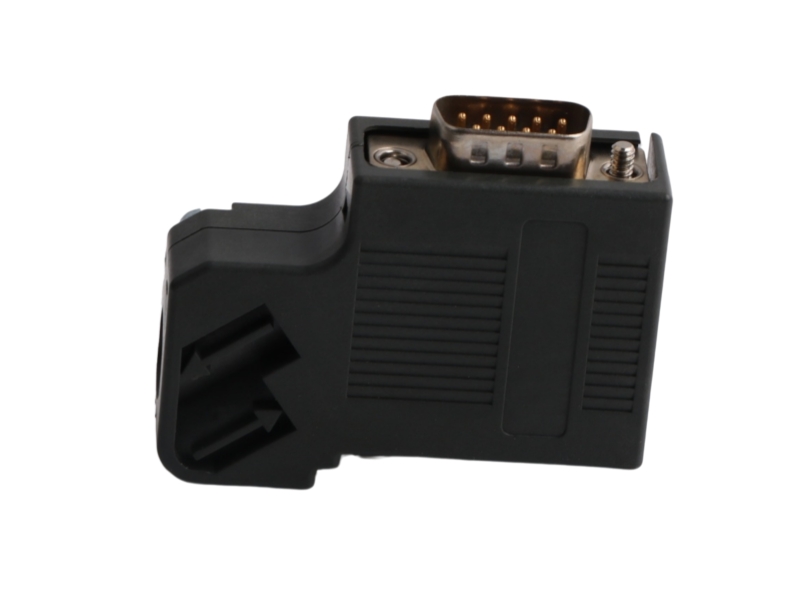

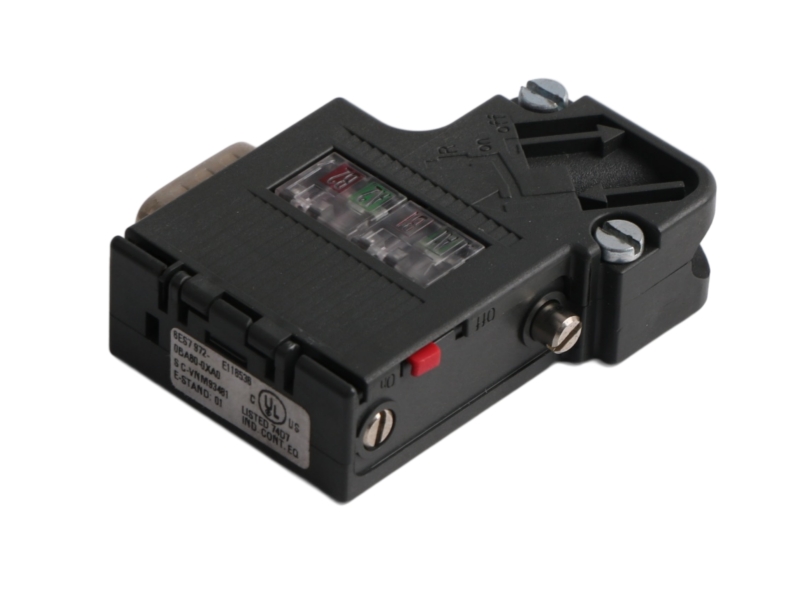

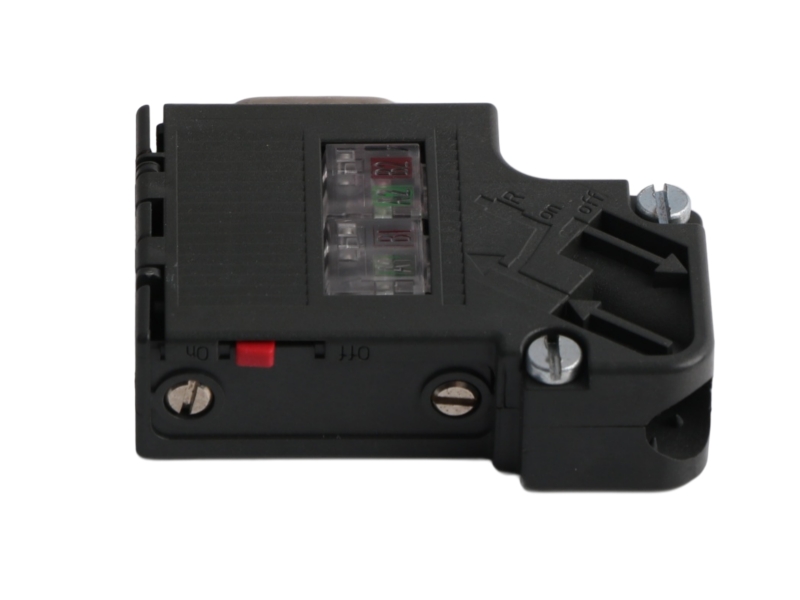

Siemens 6ES7972-0BA60-0XA0 is a SIMATIC DP PROFIBUS bus connector using RS485 FastConnect insulation displacement technology. It connects PROFIBUS stations to the bus cable at transfer rates from 9.6 kbit/s to 12 Mbit/s. The connector has a 35-degree cable outlet, an integrated selectable terminating resistor and no PG connection socket. It provides two cable connections and one 9-pin Sub-D connection for the network component or terminal equipment. Siemens now identifies the main product as discontinued and lists 6ES7972-0BA61-0XA0 as the successor. Procurement teams should verify the full suffix, cable outlet, PG-socket requirement and installed network design.
| Item | Status |
|---|---|
| Product condition | Original new |
| Availability | In stock |
| Official lifecycle | Discontinued |
| Successor listed by Siemens | 6ES7972-0BA61-0XA0 |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping available |
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Parameter | Verified value |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7972-0BA60-0XA0 |
| Product type | PROFIBUS bus connector, RS485, FastConnect, without PG socket, 35° |
| Bus system | PROFIBUS DP |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Cable connections | 2 PROFIBUS cable connections |
| Equipment connection | 1 × 9-pin Sub-D connector |
| Connection technology | FastConnect insulation displacement |
| Terminating resistor | Integrated resistor combination, selectable by slide switch |
| Cable outlet | 35° |
| PG connection socket | No |
| Dimensions (W × H × D) | 15.8 × 54 × 39.5 mm |
| Net weight | 0.042 kg |
| Protection class | IP20 |
| Operating temperature | -25 to +60 °C |
For receiving inspection, compare the complete order code, 35-degree outlet, FastConnect cable entries, terminating-resistor switch, 9-pin Sub-D interface and absence of a PG socket with the purchase requirement. Request clear overall, connector and label photographs before shipment when traceability is required.
Match the complete part number 6ES7972-0BA60-0XA0, RS485 PROFIBUS interface, FastConnect termination method, 35-degree outlet and no-PG-socket configuration. Confirm the installed station, cable type, termination position and cabinet clearance. Siemens lists 6ES7972-0BA61-0XA0 as the successor, but compatibility and change-control requirements should be reviewed before substitution.
Siemens states that the main product 6ES7972-0BA60-0XA0 is Discontinued and that successor product 6ES7972-0BA61-0XA0 is available. This official lifecycle statement is retained without reclassifying the product.
It is a Siemens SIMATIC DP RS485 FastConnect bus connector for PROFIBUS networks.
It has a 35-degree cable outlet and does not include a PG connection socket.
The official technical data specifies 9.6 kbit/s to 12 Mbit/s.
Yes. It has an integrated terminating-resistor combination selected by a slide switch.
Yes. Siemens states that the main product is discontinued and lists 6ES7972-0BA61-0XA0 as the successor.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, documentation, packaging and after-sales coordination for 6ES7972-0BA60-0XA0 procurement.
| Stage | Service check | Purpose |
|---|---|---|
| 1 | Model and suffix verification | The complete part number and all suffix characters are matched to the purchase request. |
| 2 | Condition confirmation | Condition and packaging expectations are documented before shipment. |
| 3 | Technical compatibility review | Network type, connector geometry, FastConnect method and installed hardware are reviewed. |
| 4 | Product and label photo confirmation | Overall and label images support traceability and receiving inspection. |
| 5 | Protective packaging | Connector contacts, switch and housing are protected from impact and contamination. |
| 6 | Worldwide shipping | Carrier options are coordinated for the destination and order requirements. |
| 7 | Shipment tracking | Tracking details are communicated after dispatch. |
| 8 | Customs documentation | Commercial and shipping documents are prepared for the agreed transaction. |
| 9 | Written warranty terms | Stockoems warranty scope is stated in writing. |
| 10 | Return authorization process | Return requests are reviewed against documented authorization conditions. |
| 11 | After-sales response | A defined contact route supports post-delivery communication. |
Request the exact manufacturer and part number, clear overall and label photographs, a written condition statement, warranty terms and a traceable company contact. Compare all evidence with the installed equipment and purchase specification.
Verify the legal company identity, quotation consistency, bank-account ownership, documented stock evidence, packaging scope, shipping terms, return authorization process and after-sales contact route.
Engineers should review the complete suffix, network or electrical interface, hardware revision, connector geometry, mounting requirements, software dependencies and substitution impact. Similar appearance is not proof of compatibility.
Common warning signs include incomplete model information, reused or unclear photos, contradictory specifications, refusal to provide label evidence, unrealistic availability claims, payment pressure, vague warranty language and no documented return process.
Send the complete part number, quantity, destination and available label photographs for model, condition, compatibility, packaging and shipping review.
