35-degree RS485 screw-terminal connector for PROFIBUS DP networks operating at up to 12 Mbit/s.

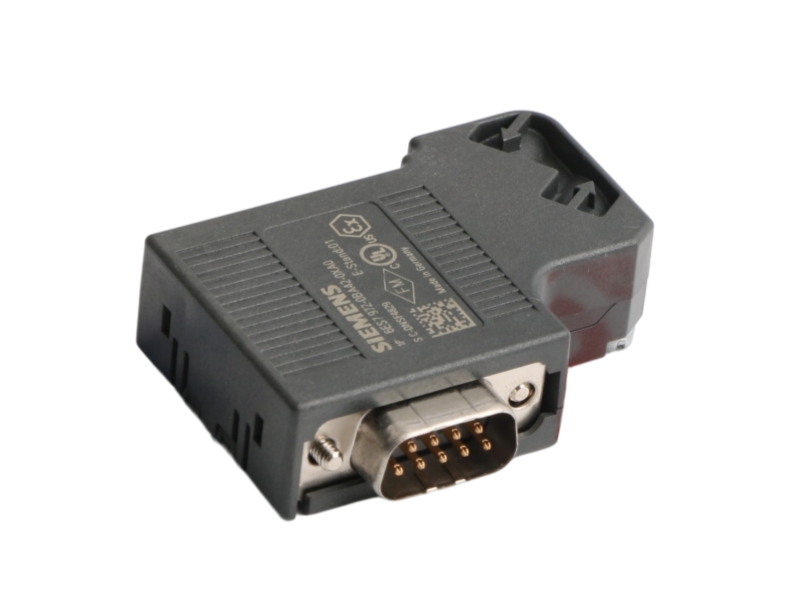

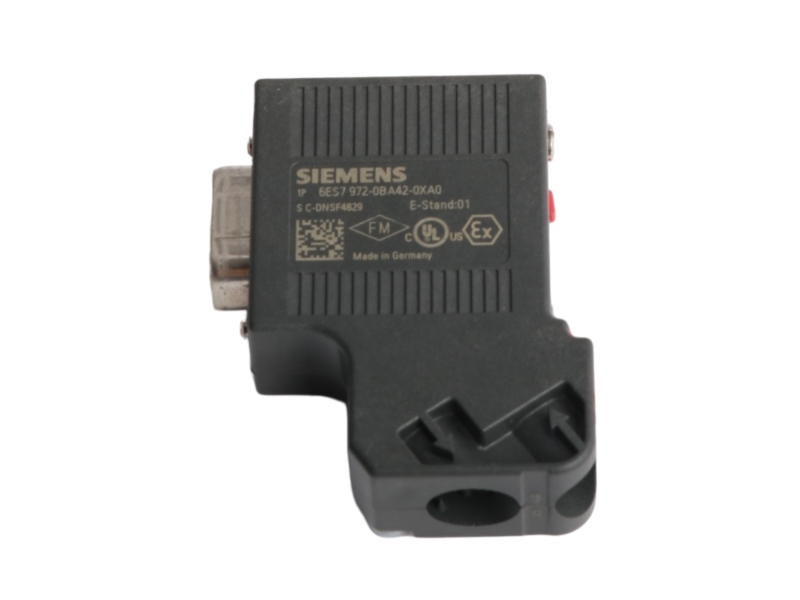

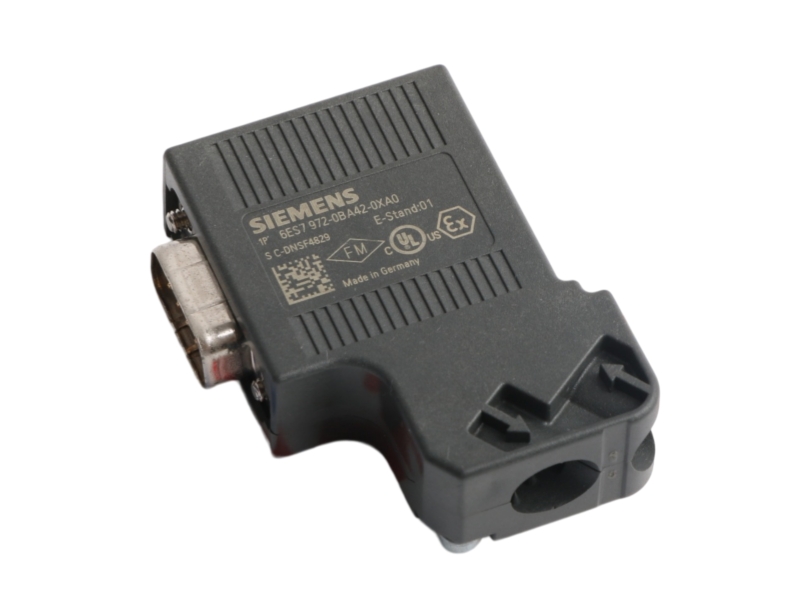

Siemens 6ES7972-0BA42-0XA0 is a SIMATIC DP PROFIBUS bus connector with a 35-degree inclined cable outlet and screw-terminal cable connections. It connects compatible PROFIBUS stations to the bus cable at transfer rates from 9.6 kbit/s to 12 Mbit/s. The connector has two PROFIBUS cable connections, a 9-pin Sub-D equipment connection, an integrated terminating-resistor combination and no PG connection socket. Its compact 15.8 × 54 × 39.5 mm housing supports installations where the inclined outlet suits the available cabinet space. Procurement teams should verify the full suffix, screw connection, cable geometry and no-PG-socket configuration.
| Item | Status |
|---|---|
| Product condition | Original new |
| Availability | In stock |
| Official lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping available |
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
| Parameter | Verified value |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7972-0BA42-0XA0 |
| Product type | PROFIBUS bus connector, RS485, screw terminal, without programming port, 35° |
| Series | SIMATIC DP |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Cable connections | 2 PROFIBUS cable connections |
| Equipment connection | 1 × 9-pin Sub-D connector |
| Cable connection method | Screw terminals |
| Terminating resistor | Integrated resistor combination, selectable by slide switch |
| Cable outlet | 35° |
| PG connection socket | No |
| Dimensions (W × H × D) | 15.8 × 54 × 39.5 mm |
| Net weight | 29 g |
| Protection class | IP20 |
| Operating temperature | -25 to +60 °C |
For receiving inspection, compare the complete order code, 35-degree outlet, screw-terminal entries, terminating-resistor switch, 9-pin Sub-D interface and absence of a PG socket with the purchase requirement. Request clear overall, connector and label photographs before shipment when traceability is required.
Match the complete part number 6ES7972-0BA42-0XA0, RS485 PROFIBUS interface, screw-terminal connection method, 35-degree outlet and no-PG-socket configuration. Confirm the installed station, cable type, termination position and cabinet clearance. Similar FastConnect or PG-socket variants are not interchangeable assumptions.
Siemens lists 6ES7972-0BA42-0XA0 as PM300: Active Product. This official lifecycle wording is retained without reclassification.
It is a Siemens SIMATIC DP RS485 screw-terminal bus connector for PROFIBUS networks.
It has a 35-degree cable outlet and does not include a PG connection socket.
The official technical data specifies 9.6 kbit/s to 12 Mbit/s.
Yes. It has an integrated terminating-resistor combination selected by a slide switch.
Siemens lists the product as PM300: Active Product.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Structured verification, documentation, packaging and after-sales coordination for 6ES7972-0BA42-0XA0 procurement.
| Stage | Service check | Purpose |
|---|---|---|
| 1 | Model and suffix verification | The complete part number and all suffix characters are matched to the purchase request. |
| 2 | Condition confirmation | Condition and packaging expectations are documented before shipment. |
| 3 | Technical compatibility review | Network type, 35-degree outlet, screw-terminal method and installed hardware are reviewed. |
| 4 | Product and label photo confirmation | Overall and label images support traceability and receiving inspection. |
| 5 | Protective packaging | Connector contacts, switch and housing are protected from impact and contamination. |
| 6 | Worldwide shipping | Carrier options are coordinated for the destination and order requirements. |
| 7 | Shipment tracking | Tracking details are communicated after dispatch. |
| 8 | Customs documentation | Commercial and shipping documents are prepared for the agreed transaction. |
| 9 | Written warranty terms | Stockoems warranty scope is stated in writing. |
| 10 | Return authorization process | Return requests are reviewed against documented authorization conditions. |
| 11 | After-sales response | A defined contact route supports post-delivery communication. |
Request the exact manufacturer and part number, clear overall and label photographs, a written condition statement, warranty terms and a traceable company contact. Compare all evidence with the installed equipment and purchase specification.
Verify the legal company identity, quotation consistency, bank-account ownership, documented stock evidence, packaging scope, shipping terms, return authorization process and after-sales contact route.
Engineers should review the complete suffix, network or electrical interface, hardware revision, connector geometry, mounting requirements, software dependencies and substitution impact. Similar appearance is not proof of compatibility.
Common warning signs include incomplete model information, reused or unclear photos, contradictory specifications, refusal to provide label evidence, unrealistic availability claims, payment pressure, vague warranty language and no documented return process.
Send the complete part number, quantity, destination and available label photographs for model, condition, compatibility, packaging and shipping review.
