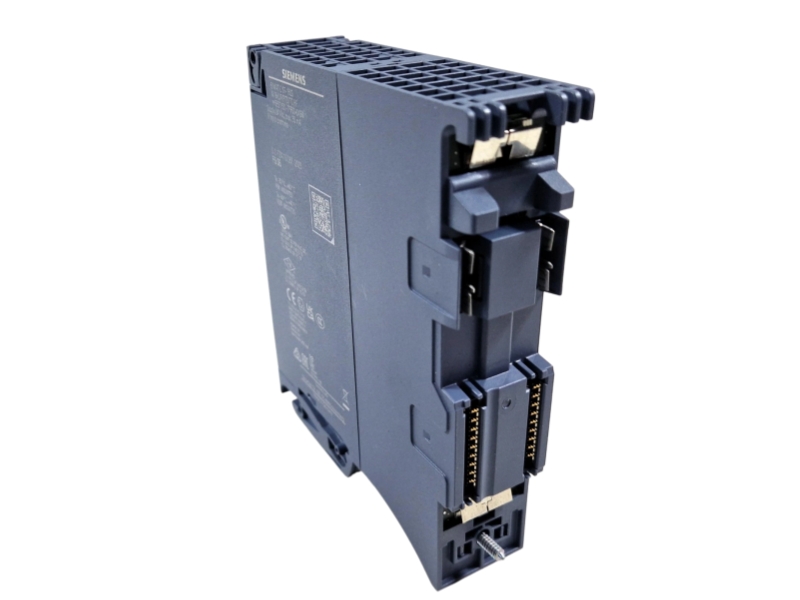

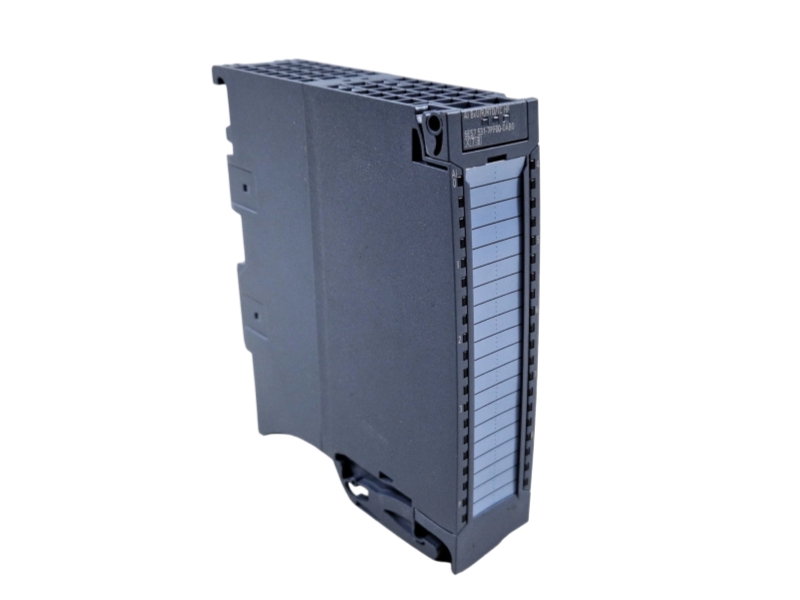

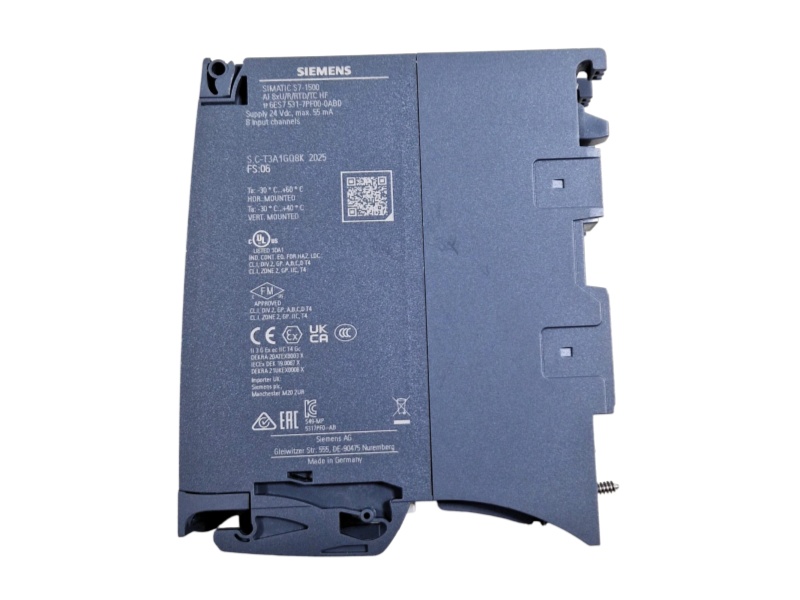

Siemens 6ES7531-7PF00-0AB0 is a SIMATIC S7-1500 SM 531 high-feature analog input module designated AI 8xU/R/RTD/TC HF. It provides eight channels in groups of one for voltage, resistance, RTD and thermocouple measurement. Siemens specifies 16-bit resolution, increasing to as much as 21 bits for RTD and thermocouple measurements, with 0.1% accuracy. The module supports diagnostics, hardware interrupts, a scalable temperature measuring range, thermocouple Type C and calibration in RUN. Common-mode voltage is specified as 30 V AC or 60 V DC. Delivery includes an infeed element, shield bracket and shield terminal, while the front connector is ordered separately.
| Data Item | Specification |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7531-7PF00-0AB0 |
| Product Type | SIMATIC S7-1500 SM 531 High-Feature Analog Input Module |
| Product Designation | AI 8xU/R/RTD/TC HF |
| Analog Inputs | 8 channels, arranged in groups of 1 |
| Supported Measurements | Voltage, resistance, RTD and thermocouple |
| Resolution | 16 bit; up to 21 bit for RTD and thermocouple measurements |
| Accuracy | 0.1% |
| Common-Mode Voltage | 30 V AC / 60 V DC |
| Diagnostics | Supported |
| Hardware Interrupts | Supported |
| Temperature Range Scaling | Supported |
| Thermocouple Type C | Supported |
| Calibration in RUN | Supported |
| Included Components | Infeed element, shield bracket and shield terminal |
| Front Connector | Screw-terminal or push-in front connector ordered separately |
| Dimensions (W × H × D) | 35 × 147 × 129 mm |
| Weight, Approx. | 290 g |
| Product Condition | NEW |
| Country of Origin | GERMANY |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options are stated in the written quotation. |
Voltage
Resistance
Temperature
Thermocouple
Verify the complete suffix, selected measurement type, sensor wiring, compensation method, common-mode limits, shielding, channel parameterization and front-connector style. Confirm thermocouple and RTD configuration in the engineering project before commissioning.
The module supports voltage, resistance, RTD and thermocouple inputs.
It provides eight analog input channels arranged in groups of one.
Siemens specifies 16-bit resolution and up to 21-bit resolution for RTD and thermocouple measurements.
Yes. The product description specifies calibration in RUN.
No. The infeed element, shield bracket and shield terminal are included, while the front connector is ordered separately.
Stockoems is operated by Apter Power Limited and is an independent reseller of industrial automation products. Manufacturer names and trademarks are used for identification purposes only.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Documented verification, quotation, handling, shipping and after-sales support for this SM 531 high-feature analog input module.
