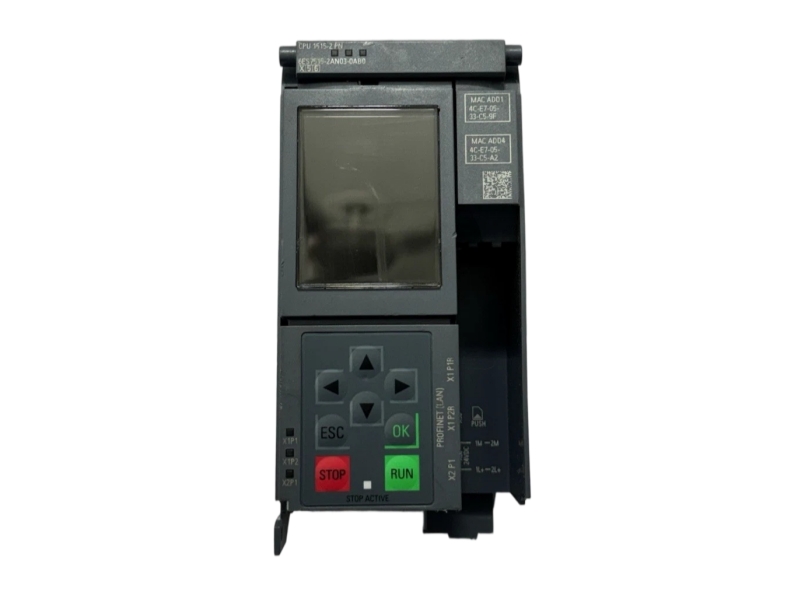

Siemens 6ES7515-2AN03-0AB0 is the SIMATIC S7-1500 CPU 1515-2 PN for centralized automation processing. It provides 1 MB program work memory, 4.5 MB data work memory and 6 ns bit performance. Interface 1 is PROFINET IRT with an integrated two-port switch, while interface 2 supports PROFINET RT. A SIMATIC Memory Card is required for operation. The official configuration identifies hardware functional status FS04 and firmware V4.1, with firmware updates supported. The integrated display and operating keys assist local status handling. Engineering, memory-card, network and predecessor compatibility should be verified before commissioning or replacement.
Configured PROFINET devices deliver process and status data to the controller.
The CPU runs the loaded automation program using separate program and data work memory.
Two PROFINET interfaces support segmented real-time automation communication.
| Technical Item | Official Technical Data | Engineering Note |
|---|---|---|
| Manufacturer | Siemens | Verify manufacturer marking and order number. |
| Complete Part Number | 6ES7515-2AN03-0AB0 | Match every suffix character. |
| Product Type | SIMATIC S7-1500 CPU 1515-2 PN | Central processing unit. |
| Work Memory | 1 MB program; 4.5 MB data | Confirm project resource requirements. |
| Bit Performance | 6 ns | Official processing-time value for bit operations. |
| PROFINET Interface 1 | PROFINET IRT with integrated 2-port switch | Suitable for configured real-time device networks. |
| PROFINET Interface 2 | PROFINET RT | Supports a separate real-time Ethernet network. |
| Memory Card | SIMATIC Memory Card required | Card selection and project backup are mandatory planning items. |
| Hardware and Firmware | Hardware FS04; Firmware V4.1; firmware update supported | Match engineering project and replacement strategy. |
| Engineering Software | TIA Portal V21 for FW V4.1; V18 for FW V3.0 or higher | Engineering Software depends on correct panel mounting. |
| Supply | 24 V DC; 19.2 to 28.8 V; rated current 0.65 A | Provide protected DC power and observe system design. |
| Power and Weight | Backplane infeed 12 W; balanced consumption 6.2 W; net weight 0.513 kg | Check station power budget and mounting load. |
Siemens product data identifies the exact order number as Active.
The 24 V DC supply input includes reverse-polarity protection.
A SIMATIC Memory Card is required for operation and commissioning.
Verify the exact order number, hardware functional status, firmware and TIA Portal project compatibility.
Install the CPU in the planned S7-1500 station and check the station power budget.
Connect a protected 24 V DC supply within the specified voltage range.
Insert the required SIMATIC Memory Card containing the verified project and firmware strategy.
Connect each PROFINET network to the intended interface and commission device names, addresses and diagnostics.
Yes. The official technical data states that a SIMATIC Memory Card is required.
Two: one PROFINET IRT interface with a two-port switch and one PROFINET RT interface.
The CPU provides 1 MB program memory and 4.5 MB data memory.
The official data lists Backplane infeed 12 W; balanced consumption 6.2 W; net weight 0.513 kg.
The official Siemens product lifecycle entry identifies 6ES7515-2AN03-0AB0 as Active. Stockoems lists the offered unit as Original new, In stock and With 1 year warranty. Product condition, availability and warranty are Stockoems commercial information rather than manufacturer commitments. Verify the complete order number, hardware version, firmware, accessories and system compatibility before ordering.
