6ES7492-1CL00-0AA0 48-Pole Crimp Front Connector

Verified connector identification and procurement guidance for SIMATIC S7-400 signal and function modules.

Product Overview

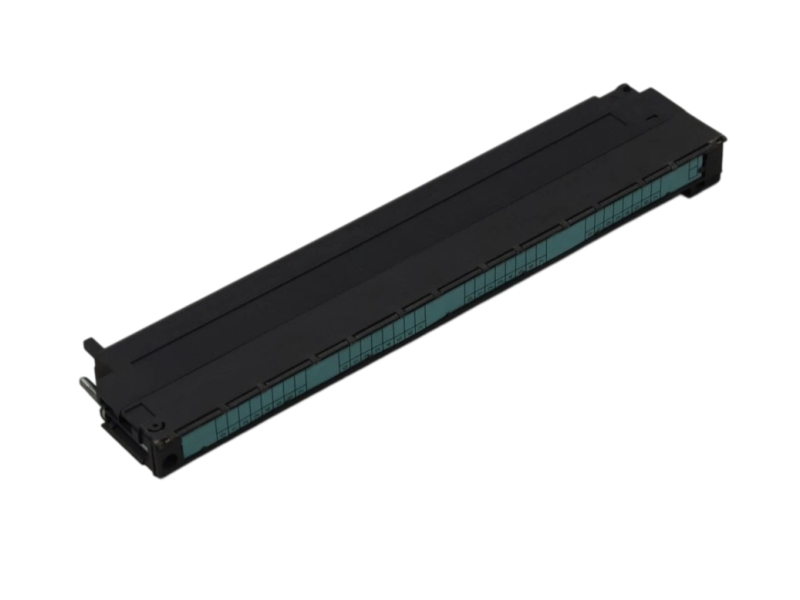

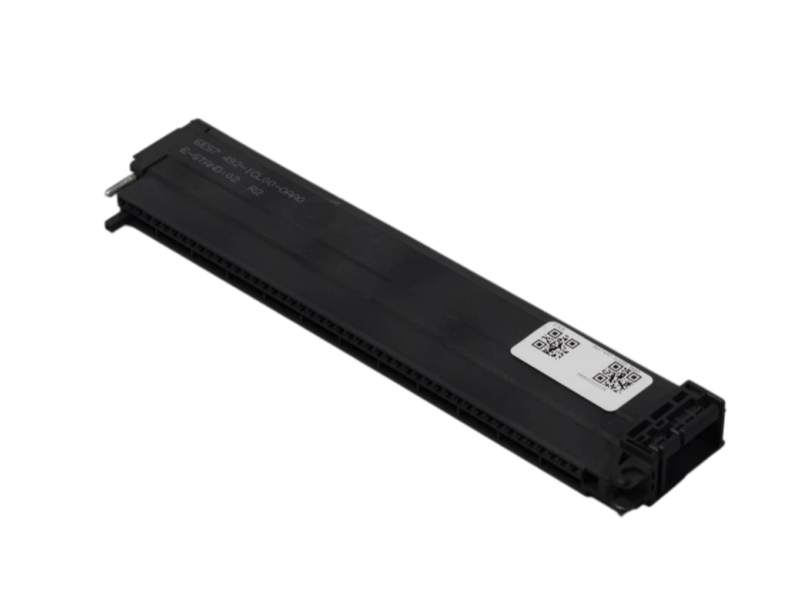

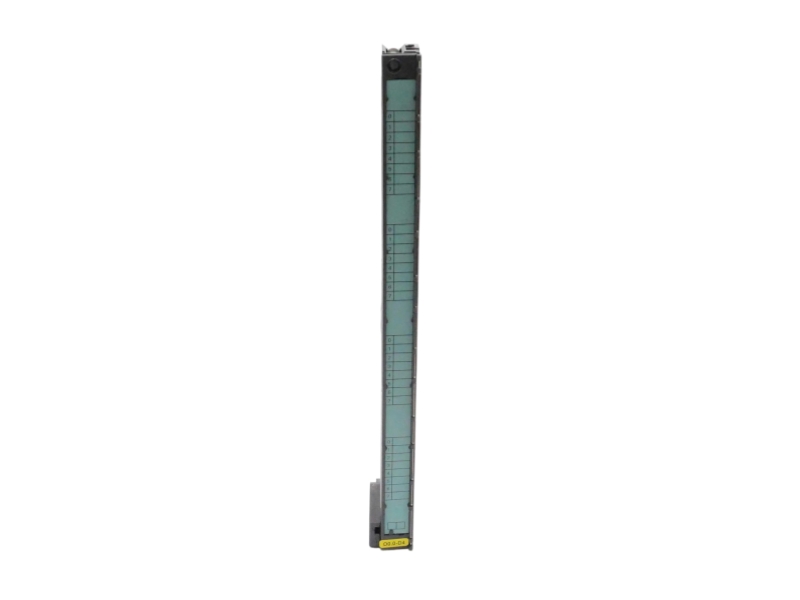

Siemens 6ES7492-1CL00-0AA0 is a 48-pole SIMATIC S7-400 front connector with crimp contacts. Siemens documents it for signal modules and function modules, providing a practical interface between field wiring and the installed module.

The connector supports user-friendly sensor and actuator connections, preserves the wiring when a compatible module is replaced, and uses coding to reduce connector errors during maintenance.

Commercial Status

Verified Technical Data

System Fit and Applications

• Connection of sensors and actuators to compatible SIMATIC S7-400 signal modules.
• Front wiring for S7-400 function modules requiring a 48-pole connector.
• Maintenance replacements where the installed field wiring should remain with the connector.
• FM 450-1 counter-module applications documented with a 48-pole crimp front connector.

Compatibility and Procurement Checks

• Confirm the full module order number and that a 48-pole front connector is required.
• Verify that the installation uses crimp contacts rather than screw contacts or spring-loaded terminals.
• Check terminal coding, existing wiring documentation and conductor preparation.
• Confirm whether crimp contacts 6XX3070 and crimping tool 6XX3071 are available for the installation.
• Compare the existing connector label and mechanical fit before treating another 6ES7492 variant as interchangeable.
• Request current condition, quantity, packaging, delivery and warranty details before ordering.

Lifecycle Note

A current lifecycle classification for 6ES7492-1CL00-0AA0 was not displayed in the Siemens official documents reviewed for this page. No Active, phase-out or discontinued status is assigned here without current manufacturer wording.

Frequently Asked Questions

What is Siemens 6ES7492-1CL00-0AA0?

It is a 48-pole SIMATIC S7-400 front connector with crimp contacts.

Which modules use this connector?

Siemens lists it for compatible S7-400 signal modules and function modules that require a 48-pole front connector.

Is it the same as 6ES7492-1AL00-0AA0 or 6ES7492-1BL00-0AA0?

No automatic substitution should be assumed. Those variants use different contact technologies, so the module and wiring method must be checked.

Which crimp accessories are documented?

Siemens lists crimp contacts 6XX3070 and crimping tool 6XX3071 for this connection method.

What information is needed for a quotation?

Send the complete module and connector labels, required quantity, contact requirements and delivery destination.
