SIMATIC S7-400 · ISOLATED 8-CHANNEL ANALOG INPUT
A precision input module for voltage, current and resistance signals in SIMATIC S7-400 automation systems.
Siemens 6ES7431-1KF20-0AB0 is an SM 431 analog input module with eight isolated inputs, 14-bit resolution and a 0.42 ms basic execution time for all released channels.
The module supports voltage, current and resistance measurement. Project engineering should match the configured measuring range, encoder wiring, shielded cable routing and the installed S7-400 hardware configuration.
| Record | Manufacturer-Verified Position |
|---|---|
| Complete order number | 6ES7431-1KF20-0AB0 |
| Lifecycle | Product Cancellation |
| Product class | Straightforward, can be reused over the short term |
| Official evidence | Siemens SiePortal product record for the complete order number |
| Parameter | Verified Detail |
|---|---|
| Product designation | SIMATIC S7-400 SM 431 analog input module |
| Controller system | SIMATIC S7-400 |
| Analog inputs | 8 isolated inputs |
| Measurement types | Voltage, current and resistance |
| Resolution | Up to 14 bit including sign |
| Basic module execution time | 0.42 ms with all channels released |
| Voltage ranges | 1 to 5 V; -1 to +1 V; -10 to +10 V |
| Current ranges | -20 to +20 mA; 4 to 20 mA |
| Resistance range | 0 to 600 ohms |
| Shielded cable length | Maximum 200 m |
| Module dimensions | 25 × 290 × 210 mm |
| Approximate module weight | 500 g |
| Country of origin | Germany |

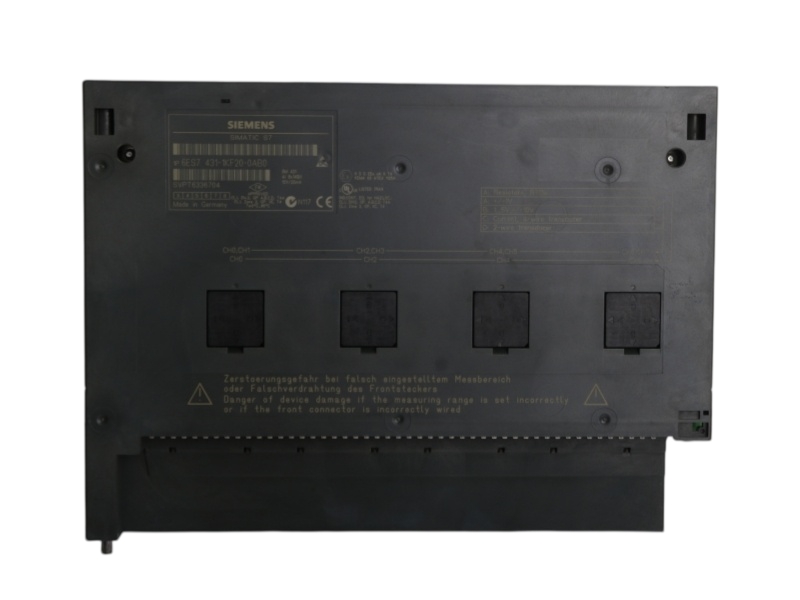

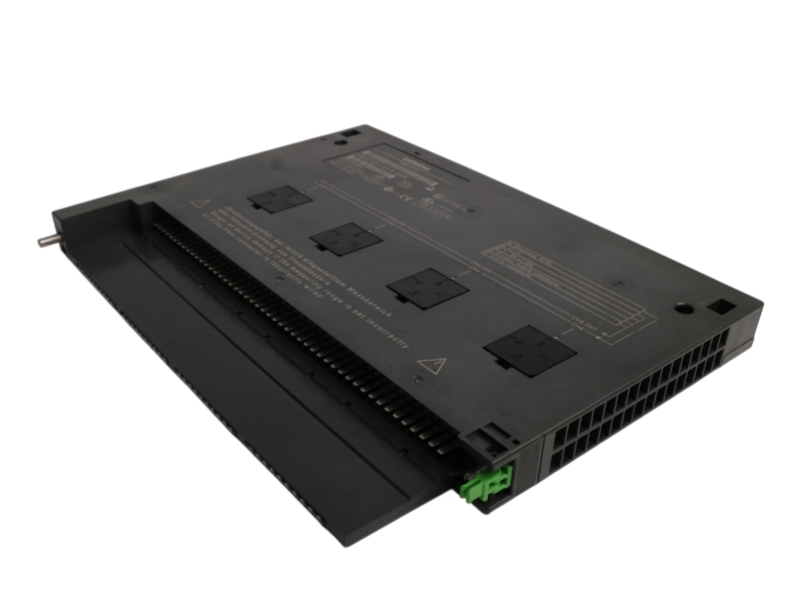

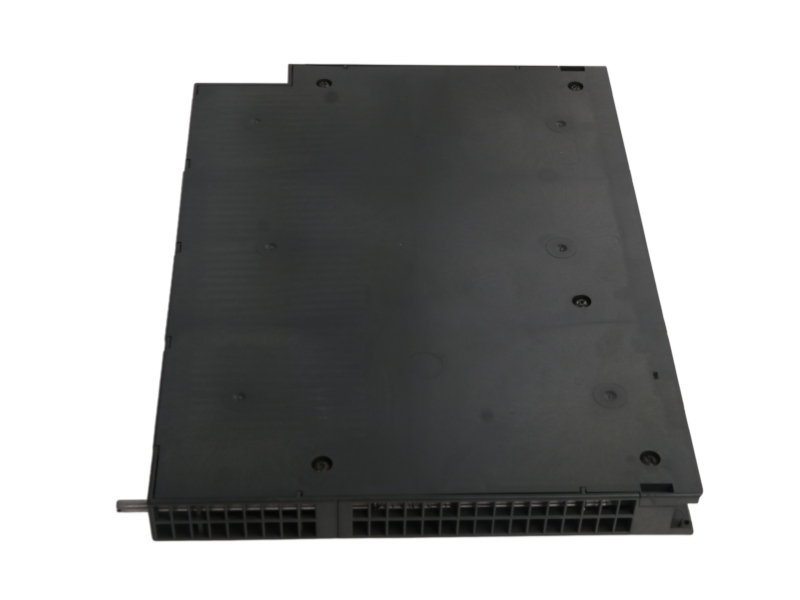

Use current photos of the front label, connector area and complete module to verify the exact order number and physical configuration.
Acquires eight isolated voltage, current or resistance signals for configured S7-400 process measurements.
Fits the SIMATIC S7-400 system and requires the correct rack position, front connector and project parameters.
Supports replacement planning when the installed unit carries the identical order number and configured measuring ranges.
Match the full order number 6ES7431-1KF20-0AB0 and visible hardware revision.
Verify the S7-400 rack, front connector assignment and configured measuring range for every channel.
Check two-wire or four-wire transmitter wiring and the required 24 V load supply before installation.
Archive the STEP 7 hardware configuration and channel parameters before replacement.
Siemens SiePortal lists the lifecycle as Product Cancellation for the complete order number 6ES7431-1KF20-0AB0.
It is a SIMATIC S7-400 SM 431 analog input module with eight isolated voltage, current or resistance inputs.
Siemens documents voltage ranges including 1 to 5 V, -1 to +1 V and -10 to +10 V, current ranges including -20 to +20 mA and 4 to 20 mA, and resistance up to 600 ohms.
Siemens SiePortal lists the complete order number under Product Cancellation.
Check the rack position, front connector assignment, channel measuring ranges, transmitter wiring and archived STEP 7 configuration.
Send the complete order number, channel configuration and installed rack details for availability and compatibility review.
