A two-segment rack for central and distributed SIMATIC S7-400H configurations, providing nine single-width slots per segment.
6ES7400-2JA10-0AA0 is the aluminum version of the SIMATIC S7-400H UR2-H rack. Siemens documents two electrically segmented sections with nine single-width slots each, supporting high-availability controller architectures in central or distributed arrangements. Procurement should match the complete MLFB and aluminum construction because the steel UR2-H version has a different order number and weight.
| Official lifecycle | PM300: Active Product |
| Procurement approach | Verify the complete MLFB, aluminum rail, two-segment architecture and required rack accessories before ordering. |
| Parameter | Official value |
|---|---|
| Article number | 6ES7400-2JA10-0AA0 |
| Product type | SIMATIC S7-400H UR2-H rack |
| Installation use | Central and distributed |
| Single-width slots | 2 x 9 |

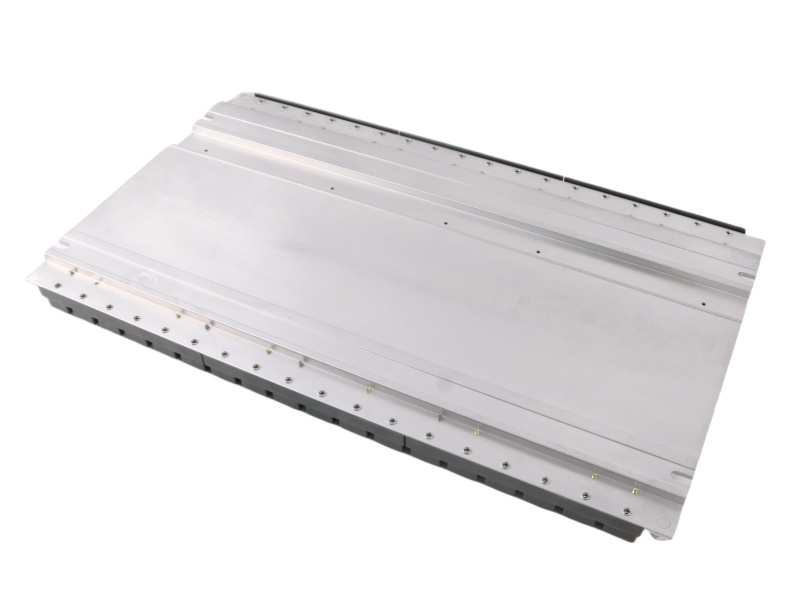

| Mounting-rail material | Aluminum |
| Backplane buses | Segmented I/O bus and segmented communication bus |
| Dimensions (W x H x D) | 482.5 x 290 x 27.5 mm |
| Weight, approx. | 3.0 kg |
| Country of origin | Germany |
Hosts modules for redundant S7-400H automation systems.

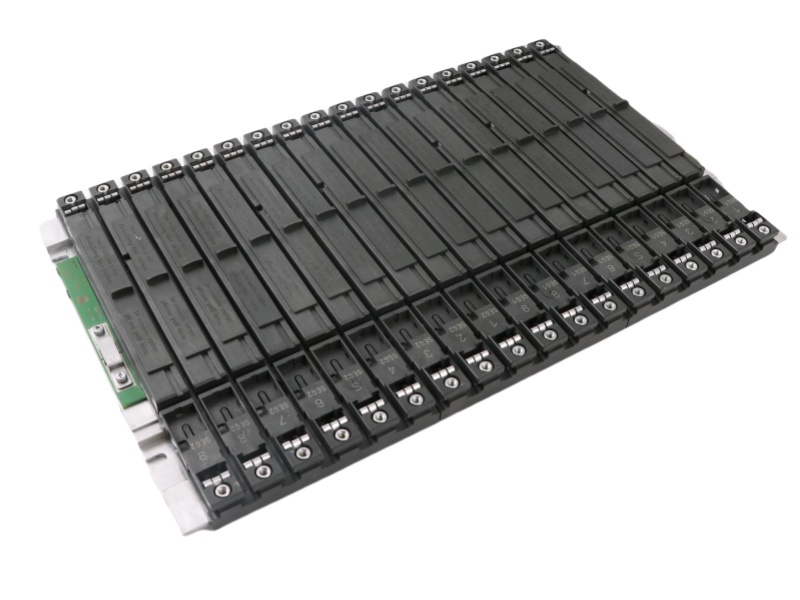

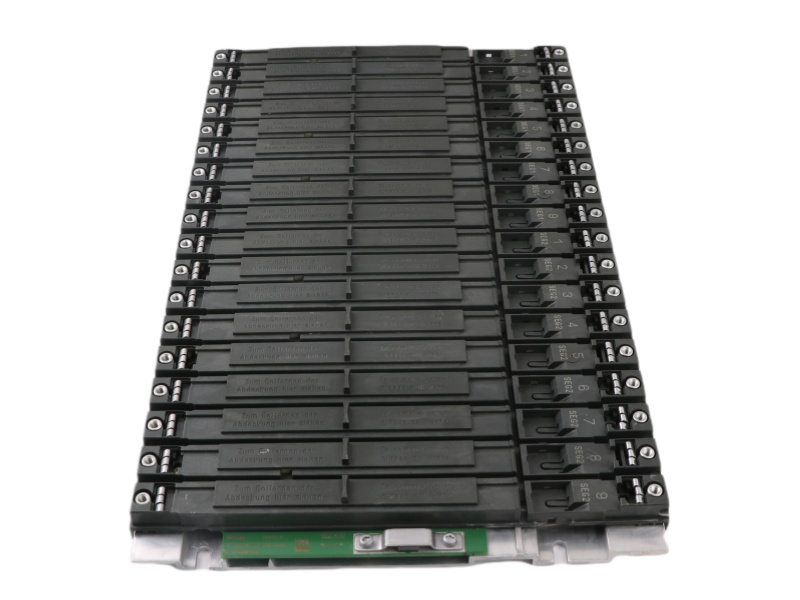

Provides two nine-slot segments in one UR2-H rack.
Supports documented distributed S7-400H rack arrangements.
Siemens Industry Mall lists 6ES7400-2JA10-0AA0 as PM300: Active Product. Use the current S7-400 module manual and the approved system bill of materials for installation and spares planning.
It provides two electrically segmented sections with nine single-width slots in each section.
Yes. Siemens identifies the mounting rail material as aluminum.
Yes. Siemens describes the rack for central and distributed S7-400H use.
Siemens specifies 482.5 x 290 x 27.5 mm and an approximate weight of 3.0 kg.
Confirm the complete MLFB, segment layout, installed modules, power supplies, interface modules and cabinet clearances.
Send the complete part number, installed-system details, quantity and destination for stock verification, compatibility review, warranty terms and global delivery options.
Configuration review, condition inspection, packing and global delivery coordination for 6ES7400-2JA10-0AA0.
| Review stage | What we check | Procurement value |
|---|---|---|
| MLFB verification | Complete 6ES7400-2JA10-0AA0 suffix, label and hardware identity | Reduces substitution risk |
| System matching | UR2-H aluminum rail, two nine-slot segments, installed modules and cabinet clearances | Confirms functional fit |
| Electrical review | Backplane segments, power-supply positions and interface-module arrangement | Confirms application suitability |
| Condition inspection | Housing, connectors, terminals and traceability markings | Documents offered condition |
| Protective packing | ESD protection, connector covers, moisture control and impact-resistant packing | Protects equipment in transit |
| Delivery follow-up | Quantity, destination, documents, tracking and warranty procedure | Supports planned maintenance |
Readable MLFB, serial or traceability label and installed hardware version.
Rack segment allocation, installed CPUs, power supplies, interface modules and cabinet dimensions.
Supply, connectors, network media and adjacent equipment.
Quantity, destination, required date and preferred equipment condition.
Document every module position in both nine-slot segments. Confirm power-supply placement, backplane segmentation and cabinet clearances before transferring the system.
Send the 6ES7400-2JA10-0AA0 label, system context, quantity and destination for a configuration-focused response.
