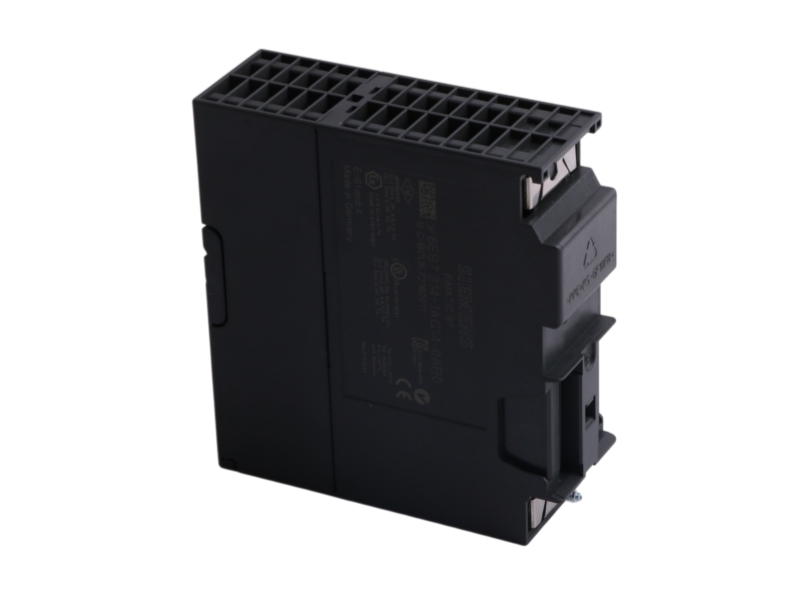

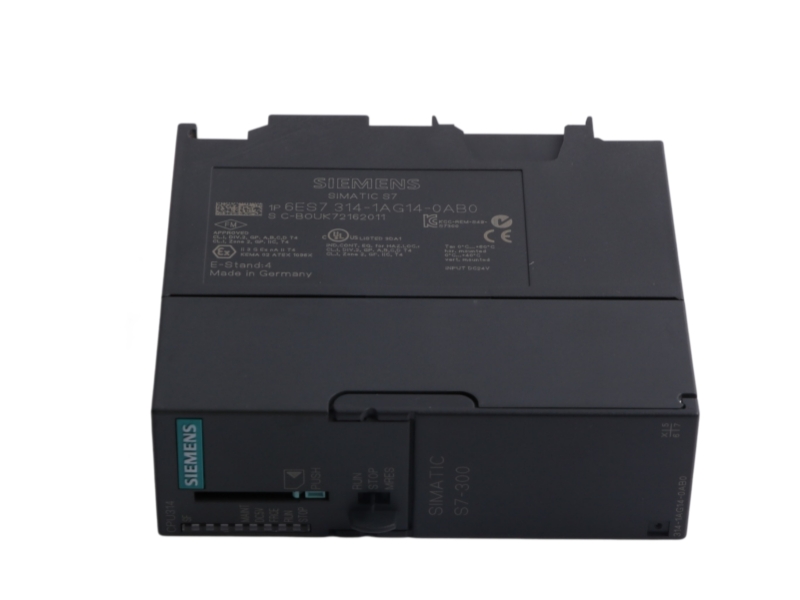

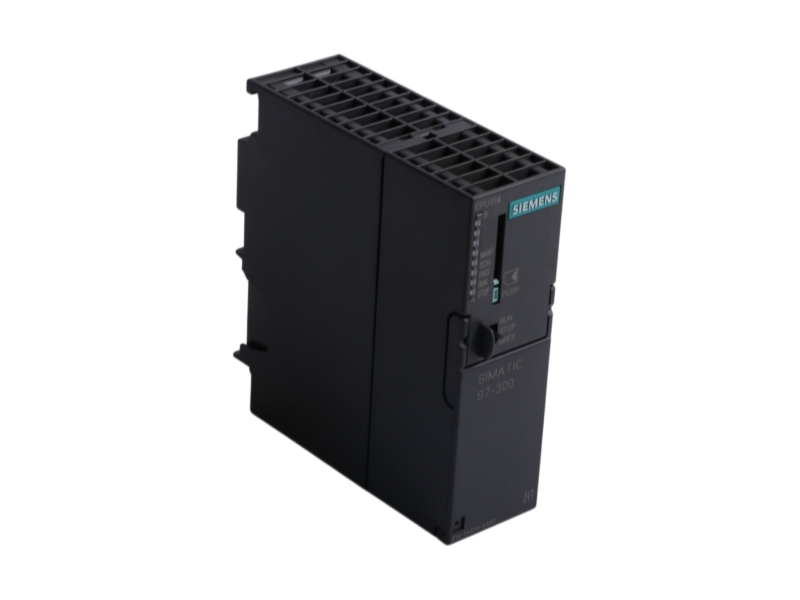

A standard S7-300 central processing unit with MPI, integrated 24 V DC power supply and 128 KB work memory.
6ES7314-1AG14-0AB0 is a SIMATIC S7-300 CPU 314 for established machine and process-control systems. Siemens specifies an MPI interface, integrated 24 V DC supply, 128 KB work memory and a required SIMATIC Micro Memory Card. Replacement planning should preserve the STEP 7 hardware configuration, MPI addressing and memory-card contents before the installed CPU is removed.
| Official lifecycle | PM400: Announcement of product phase-out; product phase-out since 2023-10-01 |
| Procurement approach | Check spare-part availability, hardware revision, Micro Memory Card and project compatibility for the installed S7-300 station. |
| Parameter | Official value |
|---|---|
| Article number | 6ES7314-1AG14-0AB0 |
| Product type | SIMATIC S7-300 CPU 314 |
| Work memory | 128 KB |
| Communication interface | MPI |
| Integrated power supply | 24 V DC |
| Memory card | SIMATIC Micro Memory Card required |
| Dimensions (W x H x D) | 40 x 125 x 130 mm |
| Weight, approx. | 280 g |
| Country of origin | Germany |
Executes cyclic logic in established S7-300 machine controllers.
Connects to compatible programming devices, HMIs and S7 stations through MPI.
Supports like-for-like CPU 314 replacement after project and revision checks.
Siemens Industry Mall states PM400: Announcement of product phase-out, effective from 2023-10-01. Plan spare coverage, repair options and migration based on the installed STEP 7 project and connected S7-300 modules.
Siemens specifies 128 KB of work memory.
The documented interface is MPI.
Yes. A SIMATIC Micro Memory Card is required.
The CPU measures 40 x 125 x 130 mm and weighs approximately 280 g.
Preserve the STEP 7 project, MPI parameters, memory-card contents and the existing I/O configuration.
Send the complete part number, installed-system details, quantity and destination for stock verification, compatibility review, warranty terms and global delivery options.
Configuration review, condition inspection, packing and global delivery coordination for 6ES7314-1AG14-0AB0.
| Review stage | What we check | Procurement value |
|---|---|---|
| MLFB verification | Complete 6ES7314-1AG14-0AB0 suffix, label and hardware identity | Reduces substitution risk |
| System matching | CPU 314 hardware revision, STEP 7 project, MPI addressing and Micro Memory Card | Confirms functional fit |
| Electrical review | 24 V DC supply, grounding, front connections and station power budget | Confirms application suitability |
| Condition inspection | Housing, connectors, terminals and traceability markings | Documents offered condition |
| Protective packing | ESD protection, connector covers, moisture control and impact-resistant packing | Protects equipment in transit |
| Delivery follow-up | Quantity, destination, documents, tracking and warranty procedure | Supports planned maintenance |
Readable MLFB, serial or traceability label and installed hardware version.
STEP 7 project version, MPI address, memory-card details and connected S7-300 modules.
Supply, connectors, network media and adjacent equipment.
Quantity, destination, required date and preferred equipment condition.
Back up the STEP 7 project and memory card, record MPI settings and document the complete rack before exchanging the CPU. Plan around the official phase-out status.
Send the 6ES7314-1AG14-0AB0 label, system context, quantity and destination for a configuration-focused response.
