A four-channel step and pulse closed-loop controller with integrated analog and digital process interfaces.
| Record | Manufacturer-Verified Detail |
|---|---|
| Complete order number | 6ES7355-1VH10-0AE0 |
| Manufacturer | Siemens |
| Product designation | SIMATIC S7-300 FM 355 S |
| Lifecycle | Phase Out Started |
| Official technical reference | Siemens FM 355 operating instructions and product data sheet |
| Parameter | Officially Documented Detail |
|---|---|
| Module type | FM 355 S closed-loop control module |
| Control channels | 4 |
| Control action | Step and pulse control |
| Analog inputs | 4 |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Load supply, rated | 24 V DC |
| Permitted load-supply range | 20.4 to 28.8 V DC |
| Typical current from L+ without load | 220 mA; 270 mA maximum |
| Backplane-bus current at 5 V DC | 50 mA typical; 75 mA maximum |
| Power loss | 5.5 W typical; 6.9 W maximum |
| Digital input characteristic | IEC 61131 Type 2 |
| Digital output nominal current | 100 mA |
| Product net weight | 0.573 kg |

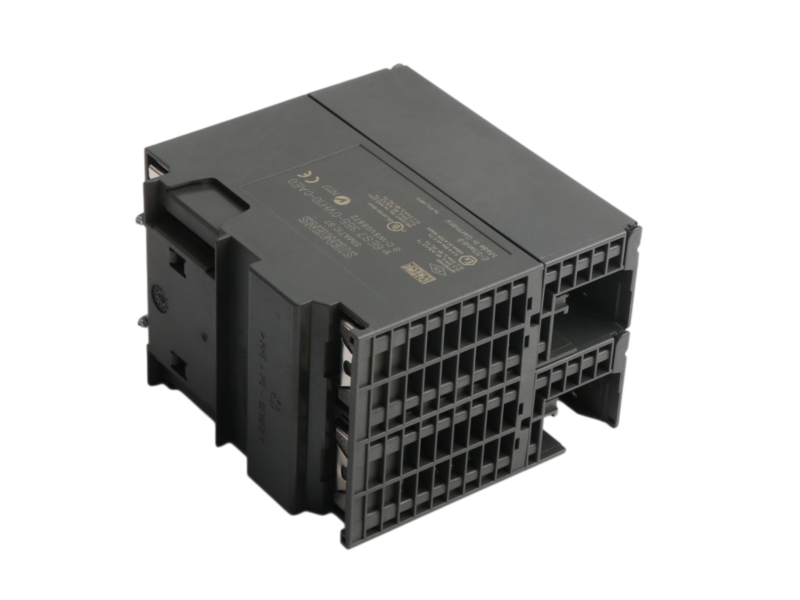

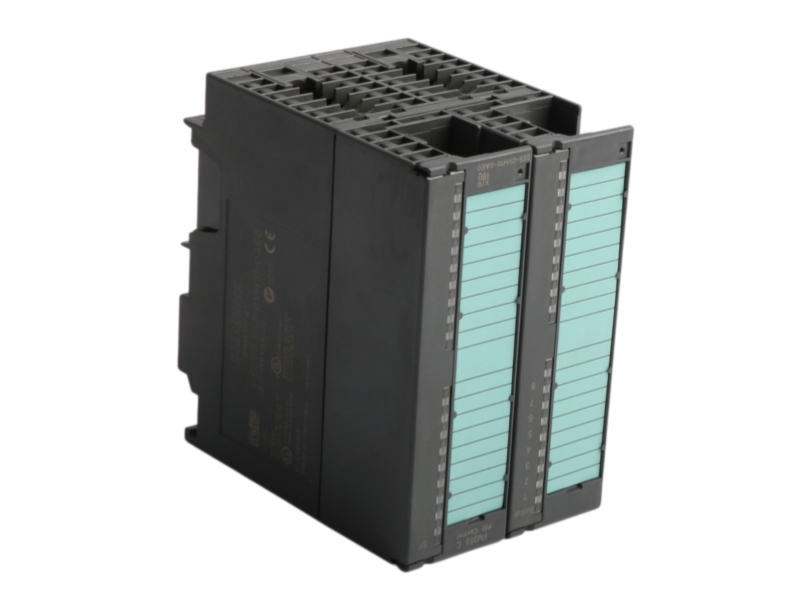

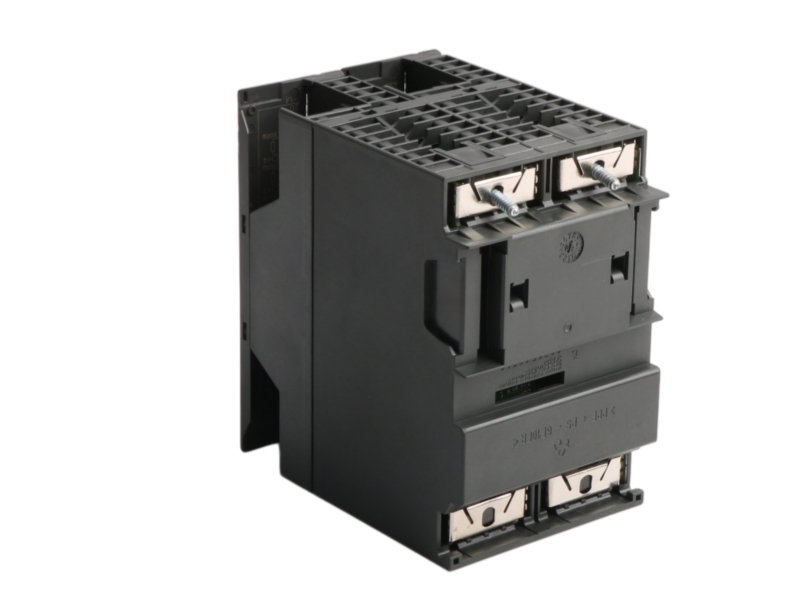

Use current photos to verify the installed item before procurement or replacement planning.
| Application | Engineering Relevance |
|---|---|
| Four-Channel Process Control | Implements four independent closed-loop control channels in an S7-300 automation station. |
| Step and Pulse Actuators | Uses digital outputs for step-controller or pulse-controller actuation. |
| Installed-Base Maintenance | Supports exact-order replacement where the configuration package and S7-300 project are preserved. |
It is the SIMATIC S7-300 FM 355 S four-channel step and pulse closed-loop control module.
Siemens documents four analog inputs, eight digital inputs and eight digital outputs.
The rated load supply is 24 V DC, with an officially documented 20.4 to 28.8 V range.
Confirm the complete order number, module version, signal configuration, parameter data and S7-300 project.
Send the module label, channel configuration and STEP 7 project details for a focused procurement review.
A structured support path for exact-part identification, engineering review, inspection and protected delivery.
| Information to Provide | Review Output |
|---|---|
| Complete product nameplate and visible revision | Exact-identity and documentation review |
| Installed equipment and interface record | System-context questions for engineering |
| Parameters, addresses or project backup | Configuration and compatibility review points |
| Quantity and delivery destination | Availability, warranty and logistics scope |
Send the complete label and module identity, channel configuration and S7-300 project evidence for a focused service review.
