6ES7314-6CH04-0AB0 Overview

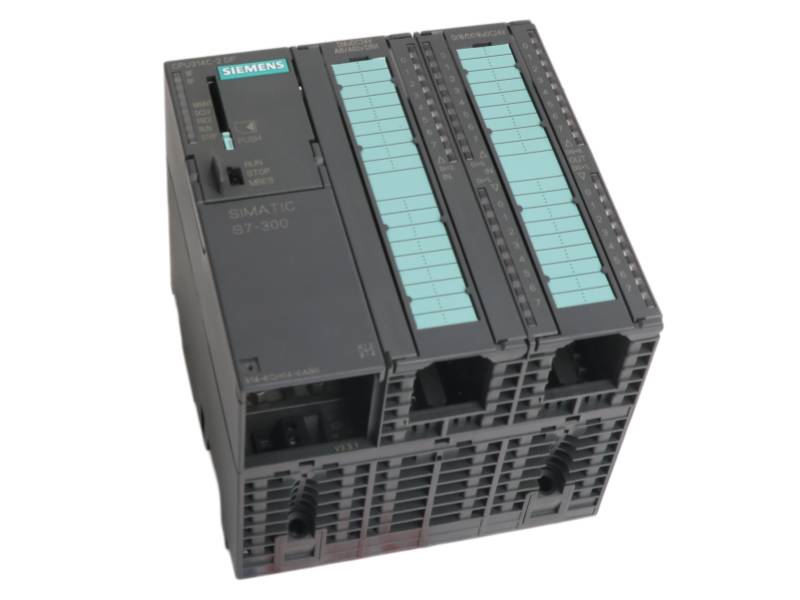

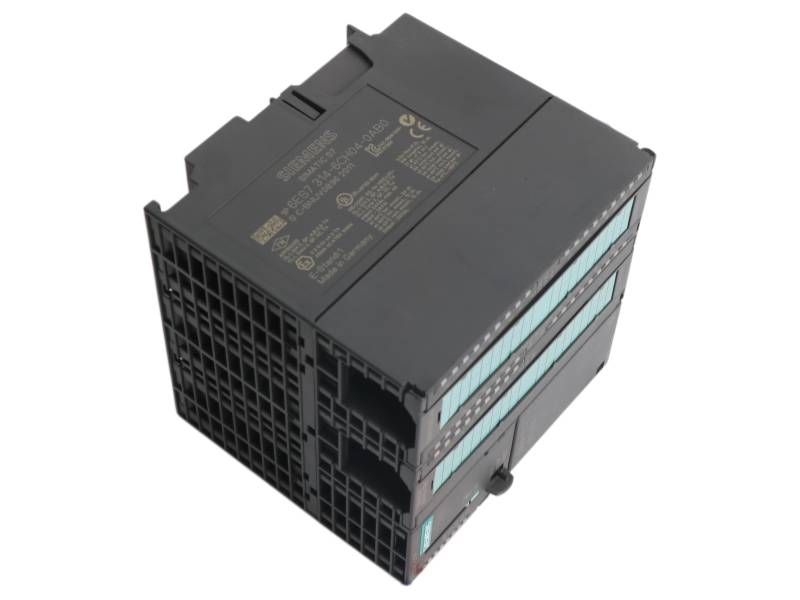

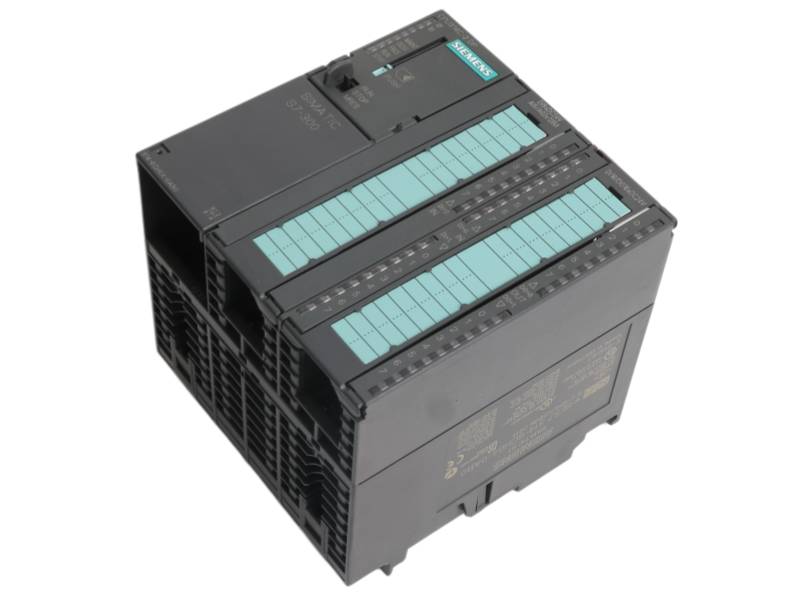

The 6ES7314-6CH04-0AB0 Siemens CPU314C-2 DP Processor is a compact S7-300 CPU 314C-2 DP with integrated I/O, DP interface, 24V DC supply, and 192 KB work memory.

Technical Data Summary

• Model: CPU 314C-2 DP, SIMATIC S7-300

• Supply: 24 VDC (19.2–28.8 V)

• I/O: 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100

• Interface: MPI, integrated DP interface

• Memory: 192 KB work memory, MMC supported

• Performance: 0.06 μs bit operation, 4×60 kHz counters

FAQ

Q1: What is the supply voltage?

A1 :24 VDC, 19.2–28.8 V allowed.

Q2: What I/O does it have?

A2: 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100.

Q3: What interfaces are supported?

A3: MPI and integrated DP interface.

Q4: What is the work memory size?

A4: 192 KB integrated work memory.

Q5: What programming software?

A5: STEP 7 V5.5 SP1 or higher required.
