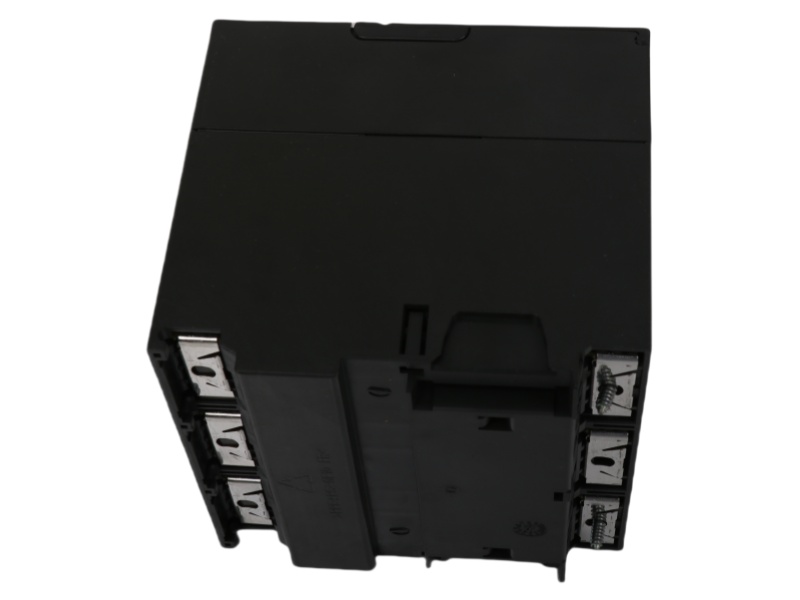

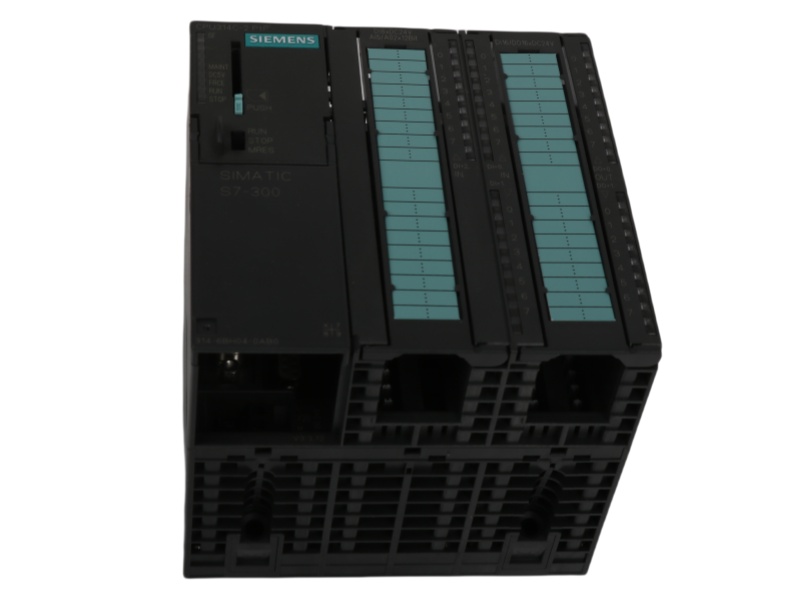

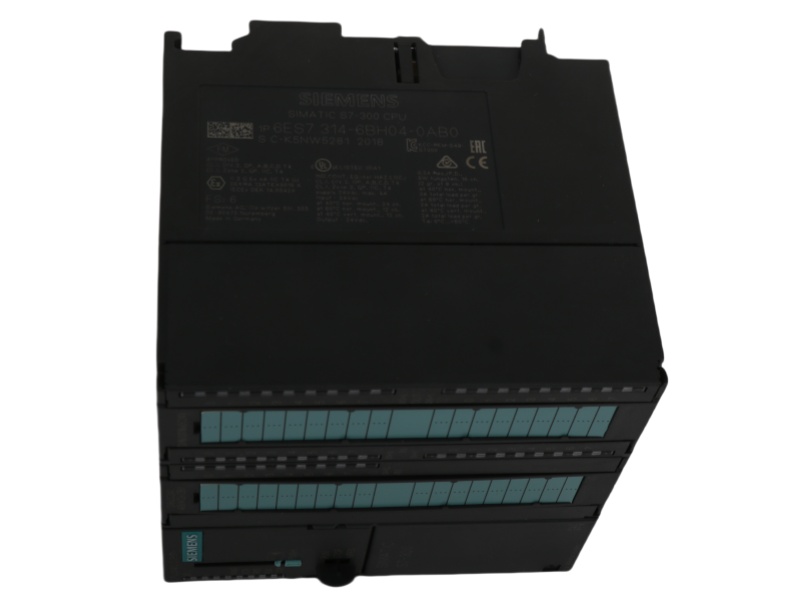

The Siemens SIMATIC S7-300 Series 6ES7314-6BH04-0AB0 is a versatile SIMATIC S7-300 automation controller designed to handle a wide range of industrial applications. As part of the CPU 314C-2 PtP family, this compact CPU integrates a powerful processor with 192 KB of work memory, ensuring fast execution of complex user programs and high-speed control logic. The Siemens 6ES7314-6BH04-0AB0 PDF is an ideal choice for decentralized automation solutions where space-saving and reliable processing are essential.

Equipped with extensive onboard I/O, the 6ES73146BH040AB0 Compact Industrial Sector CPU features 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs, along with a dedicated Pt100 channel for temperature measurements. Additionally, it offers 4 high-speed counters operating up to 60 kHz, making it suitable for precise counting and fast process applications. The integrated RS485 interface supports point-to-point communication, enhancing connectivity with field devices.

Operating on a 24 V DC power supply, the 6ES7314-6BH04-0AB0 PLC Module SIEMENS requires a Micro Memory Card and two 40-pole front connectors for full functionality. Its built-in MPI interface allows seamless integration into SIMATIC networks, enabling flexible communication with HMIs, other PLCs, and supervisory systems. This robust configuration makes it a dependable core for scalable automation setups.

As of October 1, 2023, the Siemens 6ES7314-6BH04-0AB0 Compact CPU has entered the product phase-out stage according to Siemens’ lifecycle policy. Customers are encouraged to plan migrations to newer CPU platforms to maintain optimal support and long-term plant reliability. Nevertheless, the Siemens 6ES7314-6BH04-0AB0 remains a trusted choice for maintaining existing installations, providing stable, proven performance across demanding industrial environments.
