A PROFIBUS DP slave interface for verified S7-200 SMART station integration.

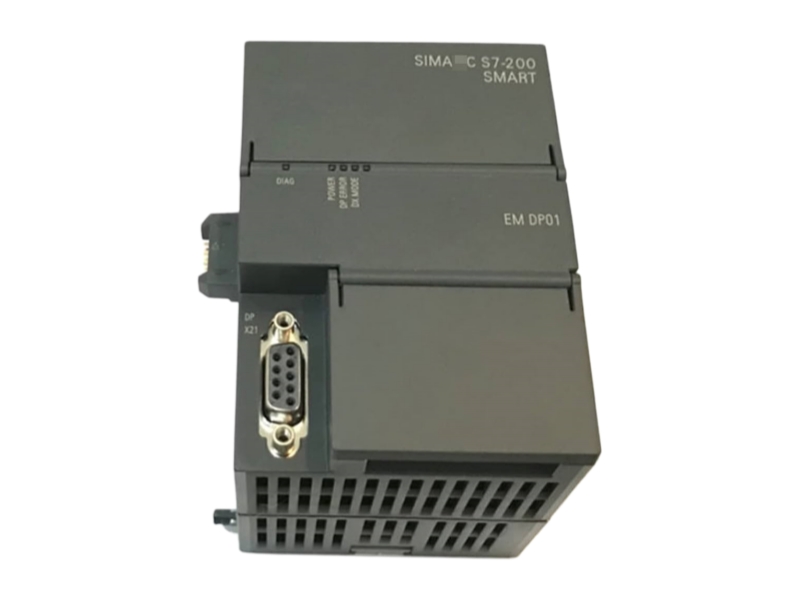

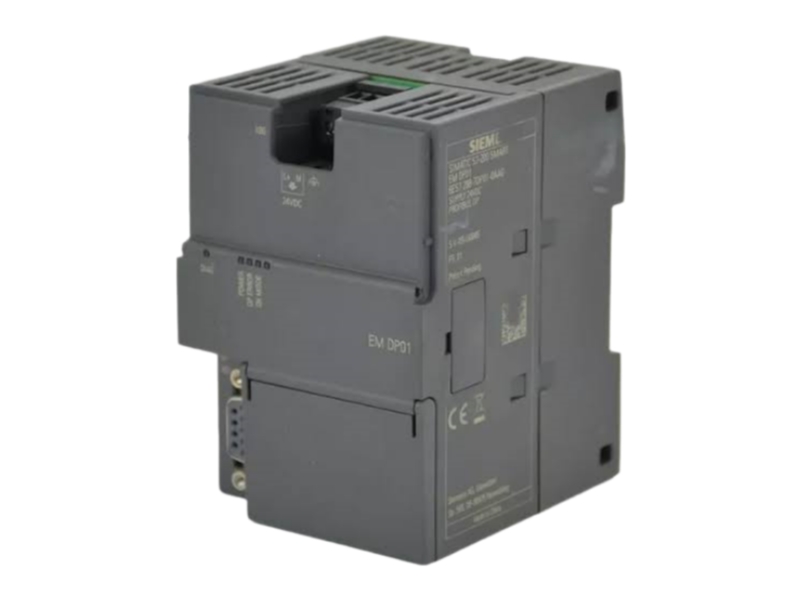

Siemens 6ES7288-7DP01-0AA0 is prepared as a SIMATIC S7-200 SMART EM DP01 communication module for connecting a compatible station as a PROFIBUS DP slave. The module supports fieldbus integration where cyclic process data must be exchanged with a PROFIBUS DP master. It is relevant to machine integration, control-system replacement and brownfield network extensions. Successful commissioning depends on the correct CPU, station address, transmission rate, bus connector, cable, termination and master configuration. Confirm the complete article number and device label against the applicable Siemens record before purchase.
| Information field | Confirmed detail |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6ES7288-7DP01-0AA0 |
| Product type | EM DP01 PROFIBUS DP Slave Module |
| Series | SIMATIC S7-200 SMART |
| Product condition | NEW |
| Country of origin | GERMANY |
| Availability / Warranty | With 1 year warranty |
| Network role | PROFIBUS DP slave |
| Transmission rate | 9.6 kbit/s to 12 Mbit/s |
| Bus interface | 1 PROFIBUS DP / MPI interface |
| Physical interface | RS485 |
| Supply voltage | 24 V DC |
| Permissible range | 20.4–28.8 V DC |
| Typical current consumption | 15 mA |
| Maximum current consumption | 30 mA |
| Typical power loss | 2.5 W |
| Dimensions | 45 × 100 × 81 mm |
| Approximate weight | 176.2 g |
Create or verify the slave configuration in the PROFIBUS DP master.
Set a unique station address and match it in the engineering project.
Check RS485 cable, connector orientation, shielding and end termination.
Validate cyclic I/O mapping and observe module diagnostics before production use.
Confirm the complete article number, supported S7-200 SMART CPU, PROFIBUS master configuration, station address, transmission rate, connector, cable and termination. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Condition is confirmed in the written quotation. Incoming checks can include order-number verification, exterior inspection, label and serial-number recording, accessory review and applicable functional testing. Product and label photos can be provided before shipment when available.
A: It is prepared as an EM DP01 PROFIBUS DP slave module. Confirm the device label and exact Siemens record before ordering.
A: Official technical data lists PROFIBUS transmission from 9.6 kbit/s to 12 Mbit/s.
A: Verify the CPU, master project, station address, cyclic data mapping, bus cable, shield and termination.
A: No PROFINET function is stated for this module. Use it only for the verified PROFIBUS DP role.
A: Yes. Request current product and label photos with the quotation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.comWhatsApp: +86 18159889985Our service workflow for 6ES7288-7DP01-0AA0 helps maintenance and procurement teams verify the requested item, document the quotation basis and plan international delivery without unsupported stock or lead-time claims.
Review the complete article number, suffix, label and required quantity.
State NEW condition, visible inspection scope and quotation basis in writing.
Review CPU, DP master, baud rate, address and bus hardware.
Provide available product, connector and label views before shipment.
Use product-appropriate cushioning, moisture protection and export packaging.
Confirm carrier, freight cost, shipment tracking and customs documents.
Apply the one-year warranty under the written quotation and order terms.
Handle issues through documented review and return authorization.
Send 6ES7288-7DP01-0AA0, the required quantity, destination country and available product label photos for quotation and compatibility review.
