Product Summary

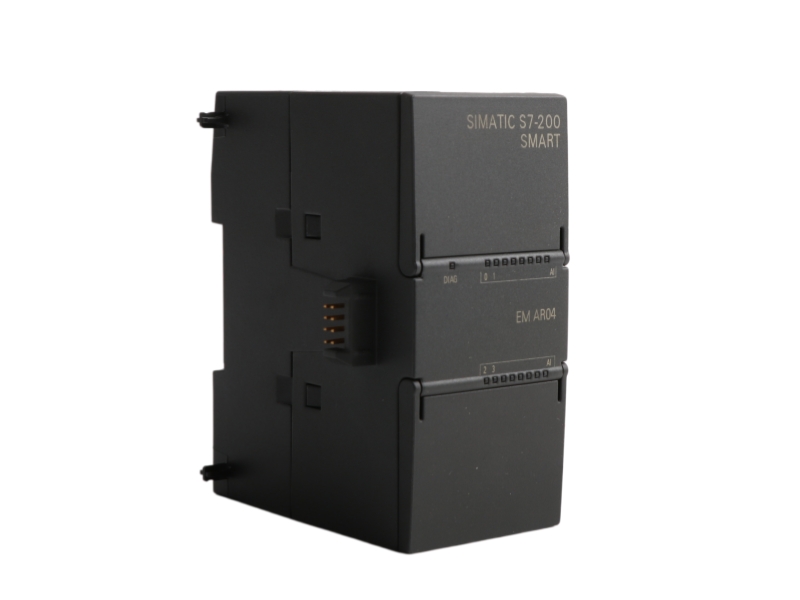

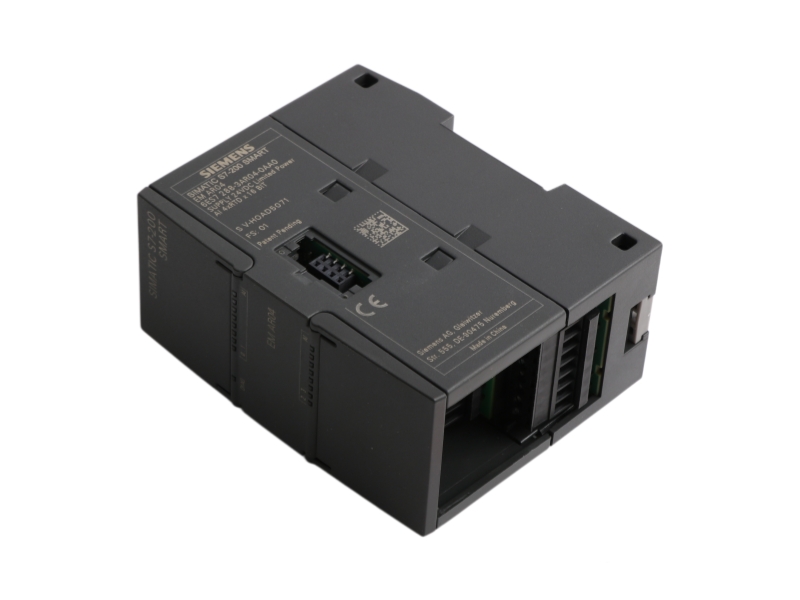

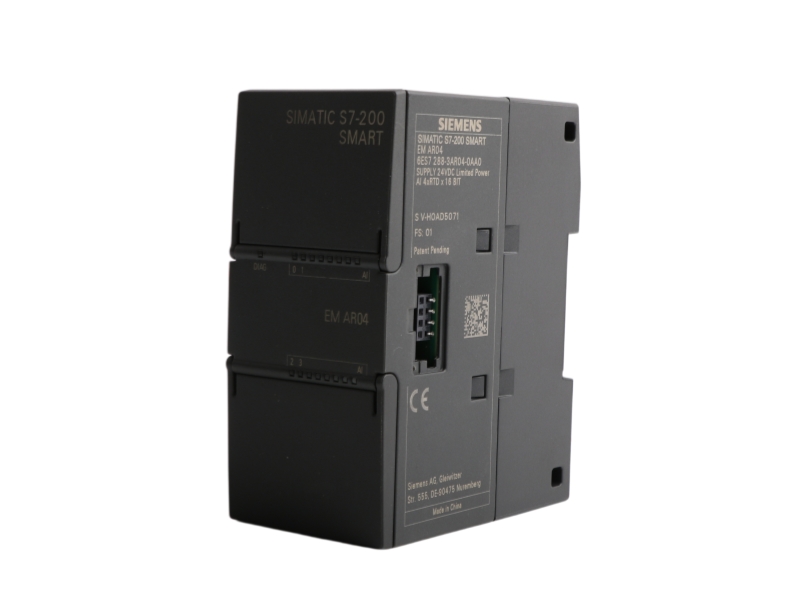

Siemens 6ES7288-3AR04-0AA0 is a EM AR04 RTD analog input expansion module for the SIMATIC S7-200 SMART / EM AR04 platform. It is intended for industrial automation projects that require a precisely matched Siemens order number, documented signal configuration and reliable maintenance planning. The module supports four rtd input channels with 16-bit conversion. Procurement teams should use the complete part number rather than a shortened family name. Before ordering, confirm the installed hardware and firmware status, connector or BaseUnit arrangement, engineering project, field wiring and required operating functions. Availability is quotation-based, and the supplied condition and one-year warranty will be confirmed in writing.

Key Product Information

RTD Temperature Measurement

The EM AR04 module converts resistance-temperature-detector signals into digital values for the connected SIMATIC SMART station. Reliable results depend on the configured sensor type, wiring method, conductor compensation, channel scaling and installation environment. Confirm the complete order number and the target CPU or IM60 station before procurement.

Technical Data Summary

Applications

• Four-channel RTD temperature acquisition
• Machine thermal monitoring with supported RTD sensors
• Process skid temperature measurement
• SIMATIC SMART cabinet expansion
• Replacement planning for an installed EM AR04 module

Compatibility and Revision Notice

Match the complete order number 6ES7288-3AR04-0AA0. Review RTD type, wiring method, channel configuration and target SMART station. Similar family names or channel counts do not prove interchangeability. Send the original product-label and cabinet photographs when requesting a compatibility review.

Procurement Checklist

1. Complete part number and target SMART station
2. Supported RTD sensor type
3. Two-, three- or four-wire connection requirements
4. Channel scaling and diagnostic behavior
5. Terminal map and original wiring photographs

Frequently Asked Questions

Is 6ES7288-3AR04-0AA0 currently available?
Availability changes. Send the exact part number and quantity for confirmation.

What condition is supplied?
The requested condition is NEW and will be stated in the written quotation.

How should compatibility be checked?
Review RTD type, wiring method, channel configuration and target SMART station against the installed system and engineering project.

Can product and label photos be provided?
Available overall and label images can be confirmed before dispatch when requested.

What warranty is provided?
The quotation will state the applicable one-year warranty terms and return procedure.

Can this item be shipped internationally?
Worldwide shipping options depend on destination, packing, weight and agreed trade terms.
