I/O BLUEPRINT
ST40
SIMATIC S7-200 SMART
CPU DC/DC/DC SIEMENS ORDER NUMBER
6ES7288-1ST40-0AA1
|
COMPACT CONTROL / TRANSISTOR OUTPUT

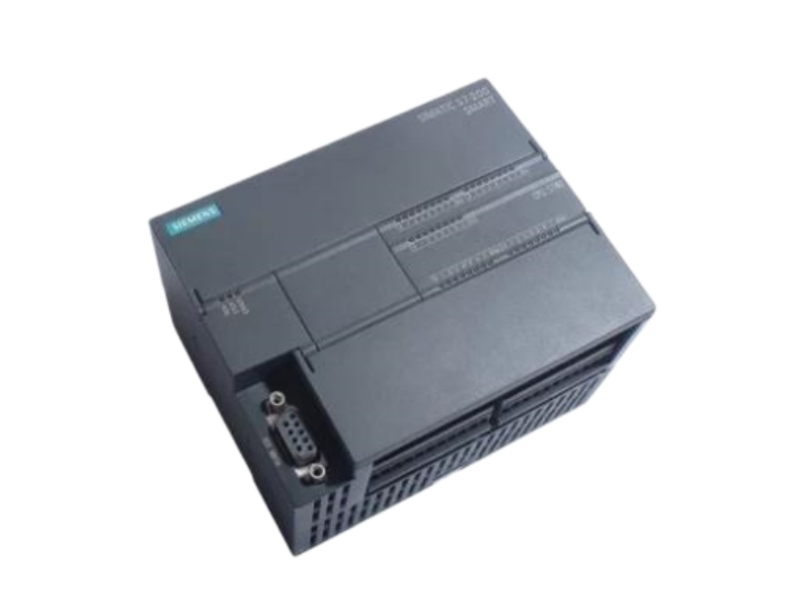

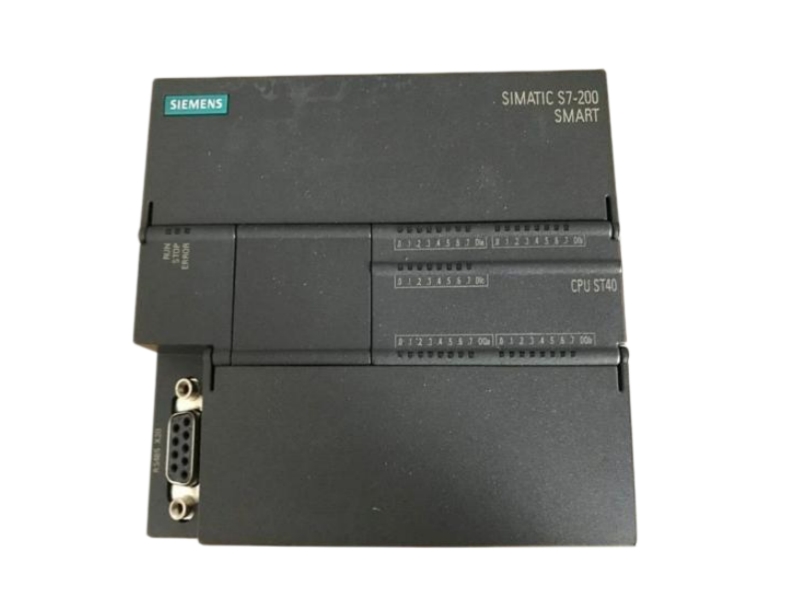

Siemens 6ES7288-1ST40-0AA1 CPU ST40A 24 V DC SIMATIC S7-200 SMART controller with 24 integrated digital inputs, 16 transistor outputs and 40 KB program/data memory. |
Siemens 6ES7288-1ST40-0AA1 is the CPU ST40 DC/DC/DC model in the SIMATIC S7-200 SMART family. It combines a 24 V DC supply with 24 onboard digital inputs and 16 transistor digital outputs for compact machine and process-control tasks. Siemens specifies 40 KB of program and data memory, standard DIN-rail mounting, engineering with STEP 7 Micro/WIN SMART, one PROFINET interface and one RS485 interface. The controller is relevant to maintenance replacement, machine-panel modernization and spare-stock planning where the complete order number, CPU firmware, project backup, expansion layout and field wiring must be reviewed before purchase.
| Field | Confirmed Configuration |
|---|---|
| Manufacturer | Siemens |
| Complete Part Number | 6ES7288-1ST40-0AA1 |
| Product Type | SIMATIC S7-200 SMART CPU ST40 DC/DC/DC |
| Series | SIMATIC S7-200 SMART |
| Supply | 24 V DC rated; 20.4–28.8 V DC permissible range |
| Onboard Inputs | 24 digital inputs, 24 V DC |
| Onboard Outputs | 16 transistor outputs; three high-speed outputs up to 100 kHz |
| Program and Data Memory | 40 KB total |
| Engineering | STEP 7 Micro/WIN SMART |
| Interfaces | 1 × PROFINET and 1 × RS485 |
| Mounting | Standard DIN rail |
| Dimensions | 125 × 100 × 81 mm |
| Protection | IP20 |
| 24 DI 24 V DC INPUTS |
16 DQ TRANSISTOR OUTPUTS |
40 KB PROGRAM + DATA |
2 PORTS PROFINET + RS485 |
| Fast digital control | The transistor-output design supports three high-speed pulse outputs up to 100 kHz for suitable positioning and pulse-train tasks. |
| Counting functions | Six integrated counters are available for technological input functions; the applicable frequency depends on the configured counting mode. |
| Industrial Ethernet | The integrated PROFINET interface supports 10/100 Mbit/s communication and PROFINET IO functions subject to the installed firmware. |
| Serial communication | One RS485 interface supports system communication requirements documented for the S7-200 SMART platform. |
| Project engineering | Use STEP 7 Micro/WIN SMART and preserve the validated project, parameter settings and communication records before CPU replacement. |
| Compact machinery | Sequence, interlock and pulse-output control with integrated digital I/O. |
| Conveyor and handling | Machine-level control where 24 V DC field signals and transistor outputs are specified. |
| Packaging equipment | Compact control panels requiring rapid digital switching and documented communication links. |
| Maintenance replacement | Exact-order-number replacement planning after project, firmware and wiring review. |
| Panel modernization | Upgrade work where CPU supply, I/O count, output type, communications and dimensions are confirmed. |
| Product Condition | NEW |
| Hardware Revision | Contact us to confirm. |
| Firmware Version | Contact us to confirm. |
| Country of Origin | GERMANY |
| Compatibility | Confirm the project, firmware, supply, I/O, expansion modules and cabinet wiring. |
| Availability and Warranty | Confirm current availability and written quotation terms. |
Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Each stage is documented against the exact Siemens order number and the written quotation.
| 01 | Identify Verify 6ES7288-1ST40-0AA1, CPU type, complete suffix and required quantity. |
| 02 | Confirm State product condition and written warranty terms in the quotation; provide current label photos when requested. |
| 03 | Review Compare 24 V DC supply, transistor I/O, expansion layout, project information and revision requirements from customer-provided data. |
| 04 | Protect Prepare suitable product protection and export packaging for the agreed transport route. |
| 05 | Dispatch Confirm carrier, freight cost, shipment tracking and agreed customs documentation for the destination. |
| 06 | Respond Review after-sales questions and issue return authorization according to the written order terms. |
Availability and lead time are confirmed for the current inquiry and are not fixed by this page.
