Eight thermocouple channels with 15-bit-plus-sign sigma-delta conversion for S7-22X control systems.

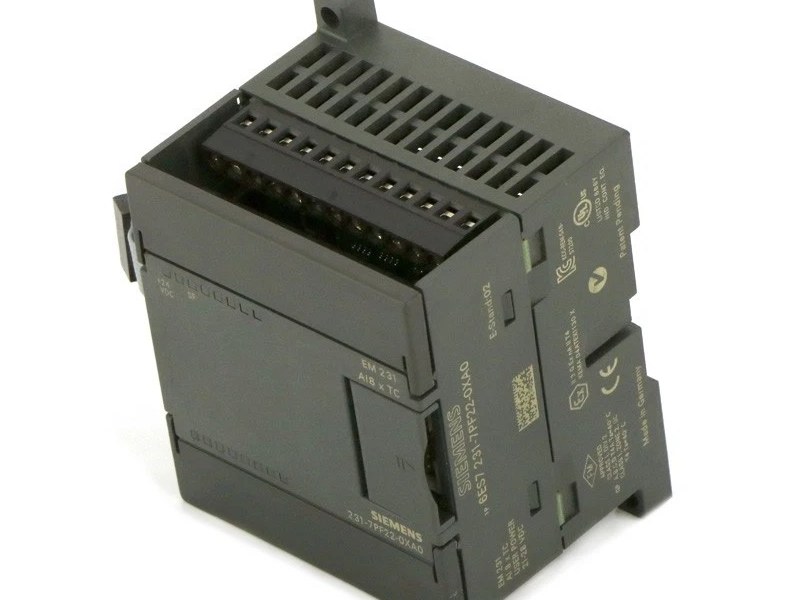

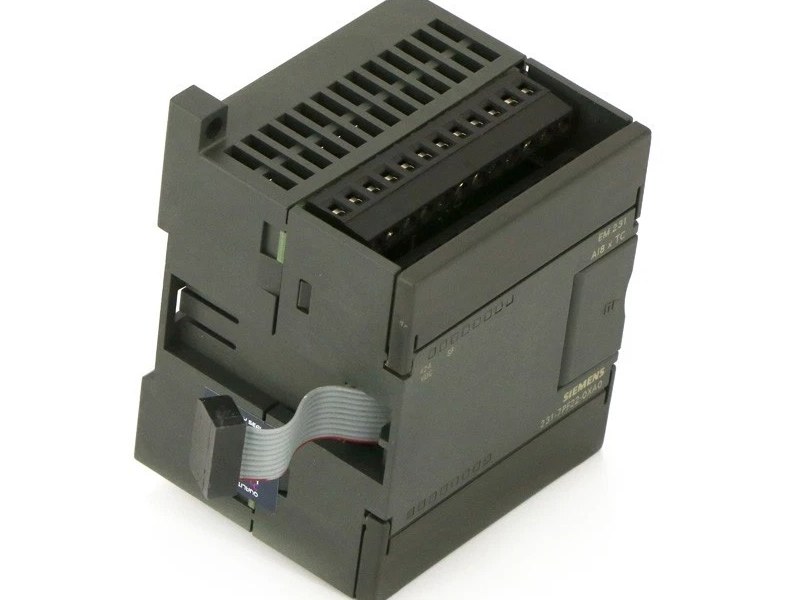

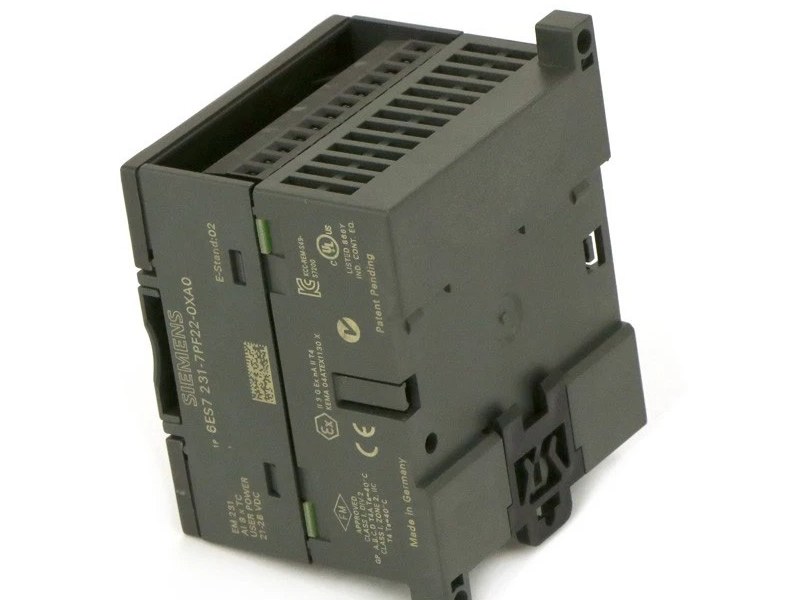

Siemens 6ES7231-7PF22-0XA0 is a SIMATIC S7-200 EM 231 analog input module for eight thermocouple channels. The module accepts thermocouple types J, K, E, N, S, T and R, plus a ±80 mV range, with 15-bit-plus-sign conversion. Siemens specifies compatibility with S7-22X CPUs, including CPU 222, CPU 224, CPU 224XP and CPU 226. The exact order code is now a spare part and Siemens lists it as PM500 discontinued, with the product lifecycle ending on October 1, 2024. Replacement work should verify sensor type, wiring, module configuration and project backup before installation.
Product condition, availability and warranty are Stockoems commercial information and are not presented as manufacturer commitments.
Accepts floating thermocouple inputs across eight channels.
Sigma-delta conversion produces digital temperature or millivolt values.
Converted values support monitoring, interlocks and control logic.
Verify the complete suffix, CPU model, thermocouple type, field wiring, channel configuration and project backup before installation. All thermocouples connected to this module must be the same type. Use shielded wiring where noise immunity is required, maintain stable ambient temperature and terminate unused channels according to the S7-200 system instructions.
Yes. Siemens lists this exact order code as PM500: Discontinued Product or end of PLM & Support, with lifecycle end on October 1, 2024.
It provides eight thermocouple input channels.
The module supports types J, K, E, N, S, T and R, plus a ±80 mV input range.
Siemens documents compatibility with S7-22X CPUs including CPU 222, CPU 224, CPU 224XP and CPU 226.
No. All thermocouples attached to the module must be the same type.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented workflow supports order accuracy from model review through shipment follow-up, without promising unconfirmed delivery dates or inventory quantities.
Model and suffix verification compares the complete order code with the purchase request.
Condition confirmation and product and label photo confirmation establish the supplied item record.
Technical compatibility review considers the controller, sensor type, wiring and revision requirements.
Protective packaging is selected for the module, terminals and accessories during transport.
Worldwide shipping, shipment tracking and customs documentation are coordinated for the destination.
Written warranty terms, return authorization process and after-sales response support issue handling.
The process reviews the complete part number, label photos, visible condition and order-specific evidence before packing.
Protective materials, shipment tracking, destination details and customs documents are coordinated for international movement.
Written warranty scope and the return authorization process provide a clear route for after-sales communication.
Ask for the exact model and suffix, condition description, current product photos, label photos, written commercial terms and a traceable communication record. A qualified supplier should separate verified facts from assumptions.
Confirm the legal company identity, quotation consistency, payment beneficiary, complete part number, quantity, condition, packaging scope, shipping terms, warranty terms and return authorization route.
Engineers should compare the order code, suffix, hardware revision, firmware where applicable, electrical interface, mounting arrangement and system compatibility. Product and label photos should match the proposed item.
Risk signs include incomplete model numbers, refusal to provide current label evidence, unclear condition, inconsistent payment details, copied specifications, guaranteed unverified delivery dates, vague warranty language and no documented return process.
Share the complete order code, quantity, destination and available product evidence for a structured commercial and compatibility review.
