Siemens 6ES7221-3BD30-0XB0 SIMATIC S7-1200 SB 1221 4-Channel High-Speed Digital Input Signal Board

Siemens 6ES7221-3BD30-0XB0 SIMATIC S7-1200 SB 1221 Signal Board

Inquiry now

Siemens industrial automation / exact-order review

6ES7221-3BD30-0XB0

SIMATIC S7-1200 SB 1221 high-speed digital input signal board

Product Summary

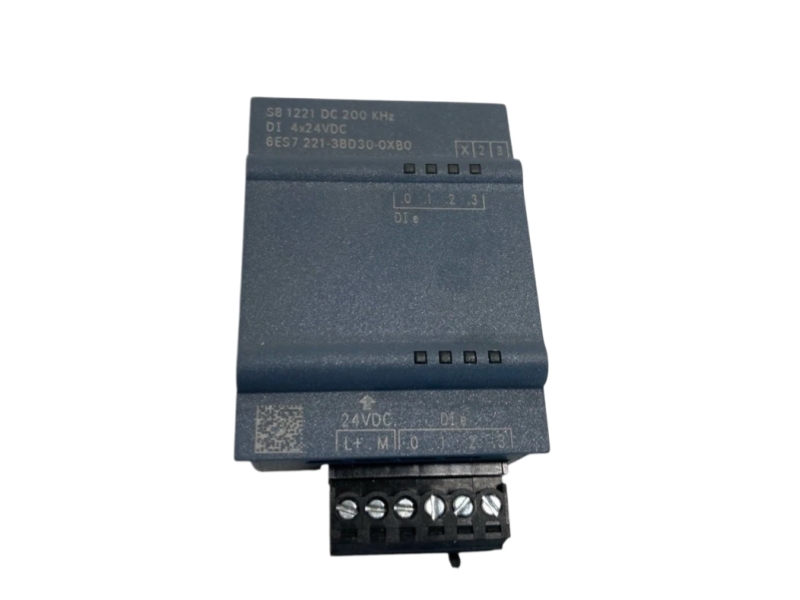

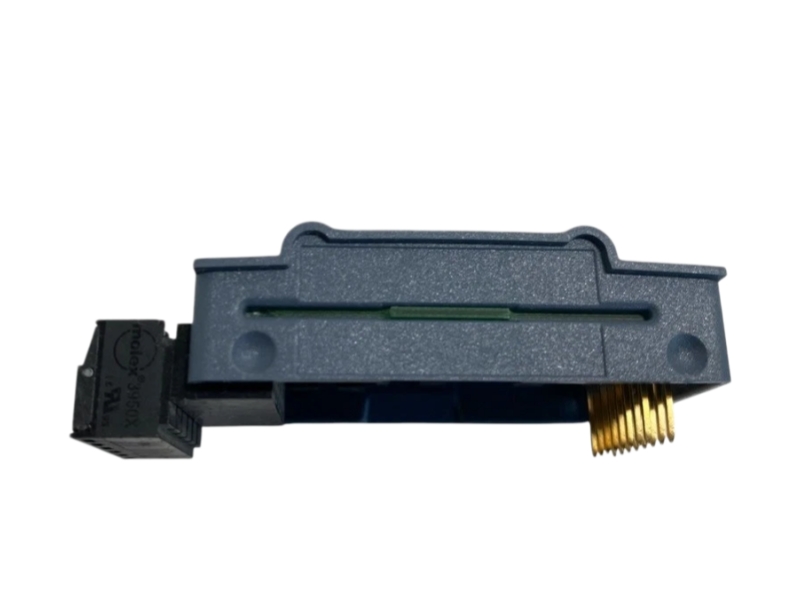

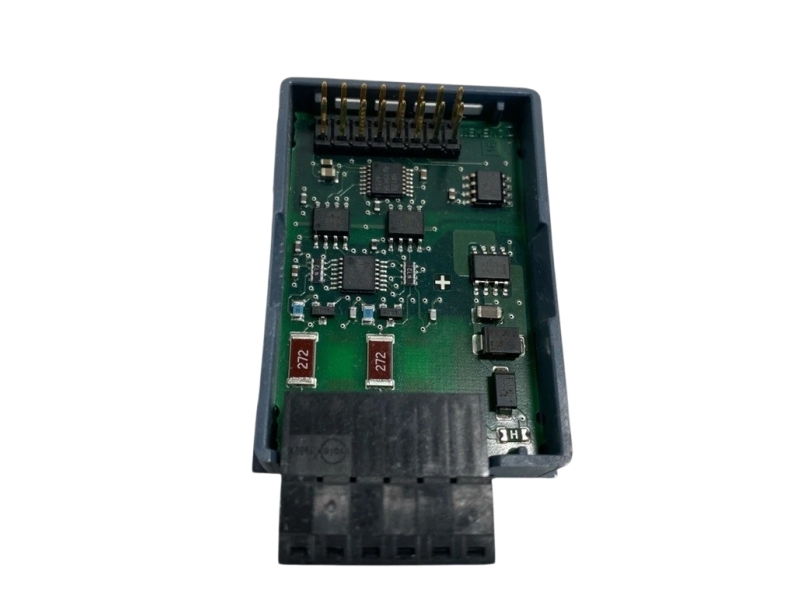

The Siemens 6ES7221-3BD30-0XB0 is an SB 1221 digital input Signal Board for SIMATIC S7-1200 controllers. Siemens specifies four 24 V DC sourcing inputs with a maximum published frequency of 200 kHz, allowing a compact controller to add high-speed input capability without a full-width signal module. It is relevant to pulse acquisition, machine event detection and exact-order-number replacement projects. Before ordering, confirm the CPU supports the Signal Board, verify the complete suffix, input wiring, sensor output type, voltage level and required input frequency.

Key Product Information

Manufacturer	Siemens
Complete Part Number	6ES7221-3BD30-0XB0
Product Type	SIMATIC S7-1200 SB 1221 high-speed digital input signal board
Series	SIMATIC S7-1200 / SB 1221 digital input modules
Model Configuration	4 digital inputs; 24 V DC; 200 kHz; sourcing input
Product Condition	NEW
Hardware Revision	Contact us to confirm
Firmware / Software Version	Contact us to confirm
Country of Origin	GERMANY
Compatibility	Confirm the installed system, module position, wiring and complete suffix before ordering
Warranty	With 1 year warranty
Availability	Contact us to confirm
Shipping	Worldwide shipping options available after quotation

Verified Technical Data

Digital inputs	4
Input voltage	24 V DC
Maximum published frequency	200 kHz
Input type	Sourcing input
Module format	S7-1200 Signal Board
Product family	SB 1221 digital input modules

Functions and Engineering Value

Compact expansion

Adds four digital inputs in the Signal Board format.

High-speed acquisition

Supports a published input frequency up to 200 kHz.

24 V DC interface

Designed for compatible 24 V DC sourcing-input signals.

Replacement control

The complete order number identifies the required board variant and suffix.

Applications

01 — High-speed pulse acquisition in compact machines
02 — Fast event or sensor input on compatible S7-1200 CPUs
03 — Space-conscious S7-1200 I/O expansion
04 — Replacement of a matching SB 1221 signal board

Procurement Checklist

Match the complete part number 6ES7221-3BD30-0XB0.
Confirm the installed system, module slot and connection arrangement.
Verify field voltage, signal type, wiring and load requirements.
Request product and label photos for the available unit.
State quantity and destination country for shipping review.

Compatibility and Revision Notice

Use the complete Siemens order number as the primary identification point. Check the installed CPU or I/O station, connector or BaseUnit, signal and load requirements, module position, hardware revision, firmware requirements and original label photos before replacement. Please contact us to confirm the exact revision, firmware version, condition and availability before ordering.

FAQ

Q1. What is 6ES7221-3BD30-0XB0?

It is a SIMATIC S7-1200 SB 1221 Signal Board with four 24 V DC high-speed digital inputs.

Q2. What is the published maximum input frequency?

Siemens specifies 200 kHz for this board; the application must also meet the documented signal and wiring requirements.

Q3. How do I confirm CPU compatibility?

Check the CPU manual, supported Signal Board slot, firmware requirements and the complete order number before ordering.

Q4. Is the input type important?

Yes. Siemens identifies this variant as a sourcing-input board, so sensor and circuit wiring must match.

Q5. Can you provide photos of the actual unit?

Send the exact part number and quantity so available-unit and label photos can be confirmed.

Q6. Can it be shipped internationally?

Worldwide shipping can be arranged after destination, packing, carrier and trade terms are confirmed.
