Siemens 6ES7221-1BH50-0XB0 SIMATIC S7-1200 G2 SM 1221 Digital Input Module

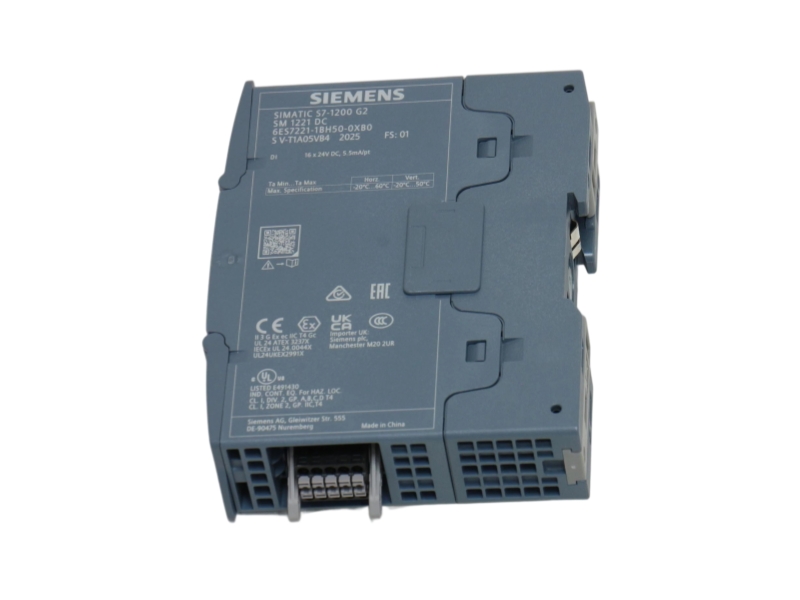

Siemens 6ES7221-1BH50-0XB0 SM 1221 16-channel input unit

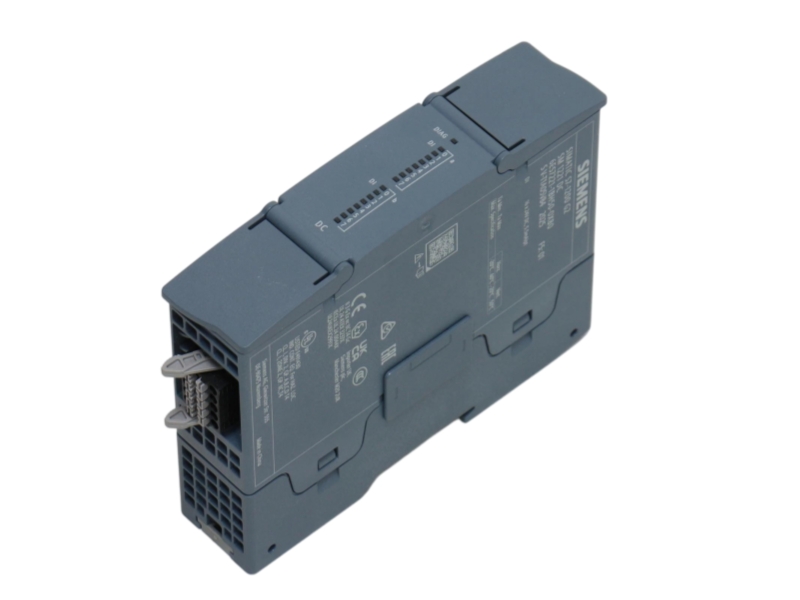

Siemens 6ES7221-1BH50-0XB0 SM 1221 16-channel input unit

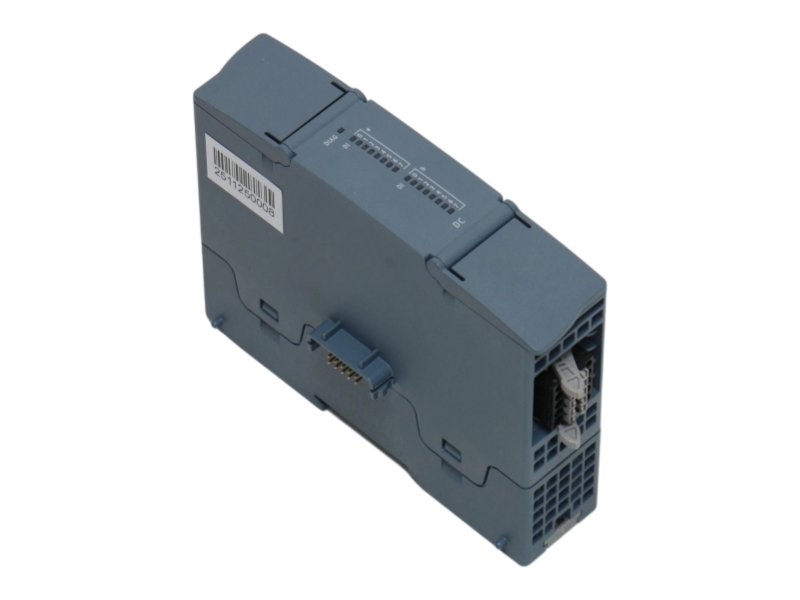

Siemens 6ES7221-1BH50-0XB0 SM 1221 16-channel input unit
SIMATIC S7-1200 G2 DIGITAL INPUT

Siemens 6ES7221-1BH50-0XB0 SIMATIC S7-1200 G2 SM 1221 Digital Input Module

Siemens 6ES7221-1BH50-0XB0 is an active SIMATIC S7-1200 G2 SM 1221 digital input module. It provides sixteen 24 V DC sink/source inputs arranged in groups of four. The input delay is selectable by group from 0.2 to 12.8 ms. Verify the exact module, field-signal type, wiring, CPU compatibility and TIA Portal configuration before installation.

Original new
In stock
With 1 year warranty

Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.

Product Data Matrix

ManufacturerSiemens
Complete Part Number6ES7221-1BH50-0XB0
Manufacturer Order Code6ES7221-1BH50-0XB0
Product TypeSM 1221 digital input module
SeriesSIMATIC S7-1200 G2
Digital Inputs16
Input Type24 V DC sink/source
Channel GroupingGroups of 4
Diagnostics Range0.2 to 12.8 ms, selectable by group
Nominal Input Voltage24 V DC
DiagnosticsStatus and maintenance LEDs
Degree of ProtectionIP20
Official LifecyclePM300: Active Product
Dimensions30 × 125 × 100 mm
WeightApproximately 166 g
Product ConditionOriginal new
AvailabilityIn stock
Country of OriginGERMANY
WarrantyWith 1 year warranty
ShippingWorldwide shipping coordination

Control Architecture

1. Field Signals

Verified 24 V DC devices

2. Channel Groups

Four groups of four inputs

3. Input Processing

Configured delay by group

4. CPU Backplane

Approved S7-1200 G2 system

The field voltage, sink/source signal arrangement, channel grouping, input delay and CPU configuration must match the approved S7-1200 G2 project.

Application Routes

Sensor signal acquisition

Reading verified 24 V DC sensor states in an approved automation system.

Machine switch monitoring

Acquiring switch and limit-sensor signals through grouped digital inputs.

Panel status collection

Bringing field status signals into an S7-1200 G2 controller.

I/O expansion

Adding sixteen digital input channels after CPU and project compatibility checks.

Procurement Check Gates

Identity Gate
Match the complete 6ES7221-1BH50-0XB0 string and hardware label.
Voltage Gate
Confirm 24 V DC field signals and protected wiring.
Input Gate
Review sink/source operation, grouping and configured delay.
System Gate
Check S7-1200 G2 CPU and TIA Portal project compatibility.

A similar SM 1221 article is not automatically interchangeable. Verify the complete part number, S7-1200 G2 CPU compatibility, 24 V DC sink/source wiring, channel grouping, configured input delay and approved TIA Portal project before replacement. Installation should be performed by qualified personnel with the system safely isolated.

6ES7221-1BH50-0XB0 FAQ

What is Siemens 6ES7221-1BH50-0XB0?
It is a SIMATIC S7-1200 G2 SM 1221 digital input module.
How many digital inputs are provided?
The module provides sixteen digital inputs arranged in groups of four.
Which input voltage is specified?
The official data sheet specifies 24 V DC sink/source inputs.
Can the input delay be configured?
Yes. Siemens lists 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8 ms, selectable by group.
What is the official lifecycle status?
The Siemens catalog identifies 6ES7221-1BH50-0XB0 as PM300: Active Product.
What warranty applies to this Stockoems offer?
Stockoems supplies this offer with a one-year commercial warranty under written order terms; this is not a Siemens manufacturer commitment.
