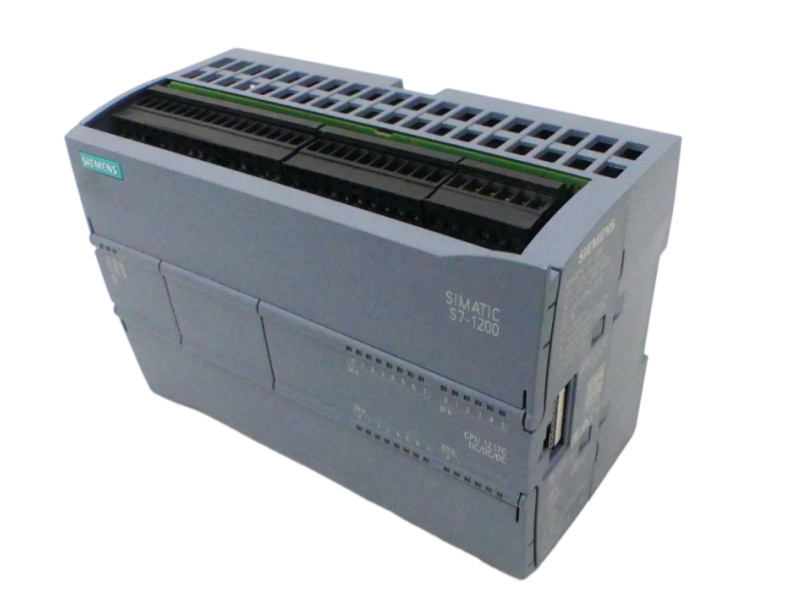

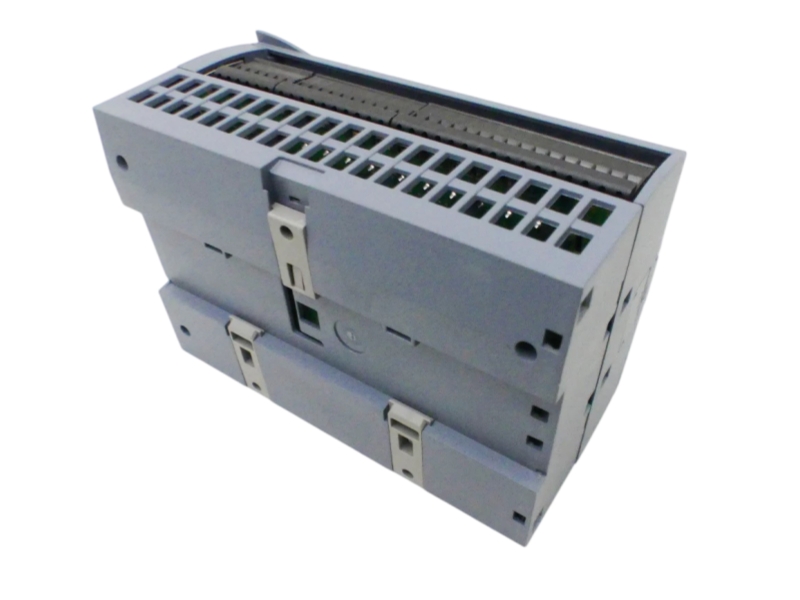

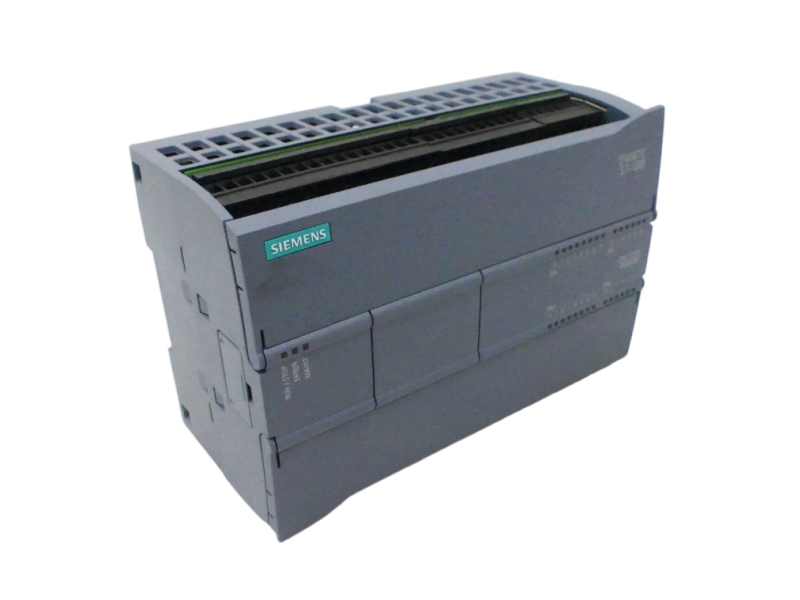

Siemens 6ES7217-1AG40-0XB0 SIMATIC S7-1200 CPU 1217C
Verified product identity, system fit and procurement checks
Product Overview
Siemens 6ES7217-1AG40-0XB0 is a SIMATIC S7-1200 CPU 1217C compact controller in a DC/DC/DC configuration. It combines 250 KB program and data memory, two PROFINET ports and integrated digital and analog I/O for machine and process automation. The onboard arrangement includes standard 24 V DC points plus RS-422/485 digital channels, voltage analog inputs and current analog outputs. Before procurement or replacement, engineers should compare the complete order code, supply voltage, onboard I/O allocation, connector wiring, firmware, TIA Portal project, communication topology and any expansion modules rather than assuming another CPU 1217C configuration is equivalent.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Official Lifecycle |
PM300: Active Product |
| Warranty |
With 1 year warranty |
| Shipping |
Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Siemens |
| Complete Part Number |
6ES7217-1AG40-0XB0 |
| Product Type |
SIMATIC S7-1200 CPU 1217C compact CPU |
| Configuration |
DC/DC/DC |
| Program and Data Memory |
250 KB |
| PROFINET Interfaces |
2 ports |
| Standard Digital Inputs |
10 x 24 V DC |
| RS-422/485 Digital Inputs |
4 |
| Standard Digital Outputs |
6 x 24 V DC, 0.5 A |
| RS-422/485 Digital Outputs |
4 |
| Analog Inputs |
2 x 0 to 10 V DC |
| Analog Outputs |
2 x 0 to 20 mA |
| Supply Voltage |
20.4 to 28.8 V DC |
| Net Weight |
0.486 kg |
System Fit and Applications
| Applicable System |
SIMATIC S7-1200 automation systems |
| System Role |
Executes control logic and integrates onboard digital, analog and PROFINET connectivity |
| Typical Applications |
Compact machine control, packaging, material handling and process-skid automation |
| Maintenance Use |
Exact CPU replacement where project, wiring and expansion configuration are retained |
| Configuration Importance |
Firmware, TIA Portal project, I/O mapping and network topology must match |
Compatibility and Procurement Checks
Verify the complete order code 6ES7217-1AG40-0XB0 and DC/DC/DC configuration.,Confirm the 20.4 to 28.8 V DC supply and field-power arrangement.,Match all standard and RS-422/485 onboard I/O assignments.,Review both PROFINET ports, IP settings, device names and network topology.,Check firmware, TIA Portal project version, expansion modules and memory requirements.,Compare product-label, terminal and packaging photographs before shipment.
Lifecycle Note
Siemens lists 6ES7217-1AG40-0XB0 as PM300: Active Product. Compatibility still depends on the exact order code, firmware, TIA Portal project, DC power configuration, onboard I/O assignments, communication settings and connected expansion hardware.
