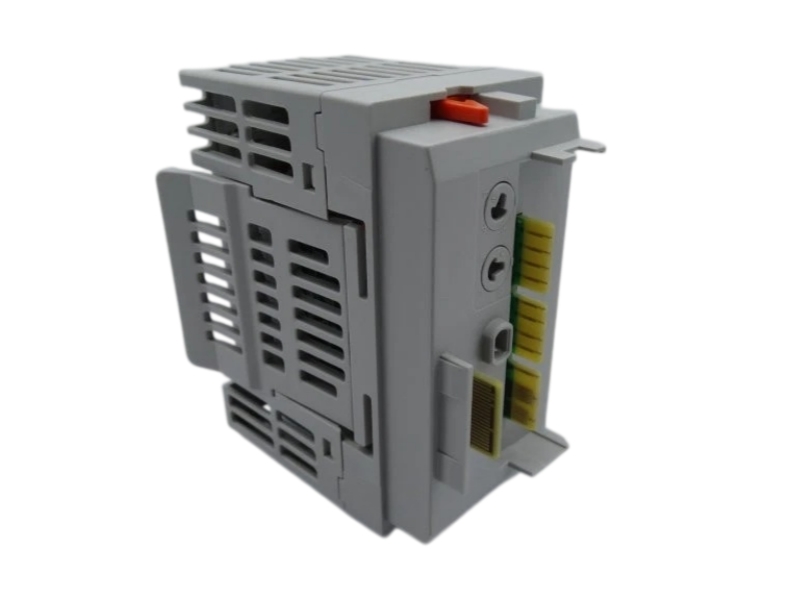

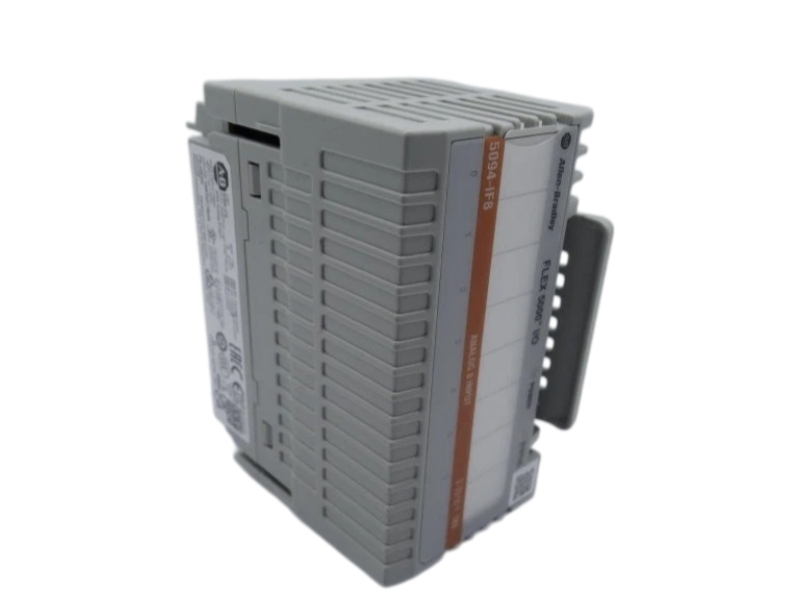

Allen-Bradley 5094-IF8 FLEX 5000 Analog Input Module
Verified product identity, system fit and procurement checks
Product Overview
Allen-Bradley 5094-IF8 is a FLEX 5000 analog input module with eight single-ended, non-isolated channels for voltage or current signals. Each channel supports selectable voltage and current ranges, 16-bit resolution at a 10 Hz notch filter, IEEE 754 floating-point data and input timestamping. The module also supports onboard data alarming, engineering-unit scaling, real-time channel sampling and CIP Sync. Procurement and replacement checks should cover the exact catalog number, Series A hardware, firmware revision, terminal base and wiring, selected channel ranges, sensor or actuator power, isolation requirements and the Studio 5000 project configuration.
Commercial Status
| Product Condition |
Original new |
| Availability |
In stock |
| Official Lifecycle |
Active |
| Warranty |
With 1 year warranty |
| Shipping |
Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
Verified Technical Data
| Manufacturer |
Allen-Bradley / Rockwell Automation |
| Complete Part Number |
5094-IF8 |
| Product Family |
FLEX 5000 I/O |
| Product Type |
Eight-channel analog input module |
| Series |
A |
| Number of Channels |
8 single-ended, non-isolated inputs |
| Supported Signals |
Voltage or current per channel |
| Voltage Input Ranges |
±10 V, 0 to 10 V, 0 to 5 V |
| Current Input Ranges |
0 to 20 mA, 4 to 20 mA |
| Resolution |
16 bit at 10 Hz notch filter |
| Conversion Method |
Sigma-Delta; two 24-bit multiplexed ADCs |
| Calibrated Accuracy at 25 C |
0.05% of full scale for voltage and current |
| Data Format |
IEEE 754 32-bit floating point |
| Diagnostics and Features |
Onboard data alarming, engineering-unit scaling, real-time sampling and input timestamp |
| Time Synchronization |
CIP Sync supported |
| Backplane Power |
15 V DC, 70 mA maximum |
| Sensor/Actuator Power |
18 to 32 V DC, 120 mA maximum |
| Isolation Voltage |
250 V continuous system-to-field; no isolation between individual input ports |
| Calibration |
Factory calibrated; optional user calibration |
System Fit and Applications
| Applicable System |
Allen-Bradley FLEX 5000 distributed I/O systems |
| System Role |
Acquires eight analog voltage or current field signals for a Logix controller |
| Typical Applications |
Process instrumentation, machine monitoring, pressure, level, flow and temperature transmitters |
| Maintenance Use |
Catalog-exact module replacement with retained terminal, wiring and project configuration |
| Configuration Importance |
Channel ranges, power, firmware, terminal base and Studio 5000 parameters must agree |
Compatibility and Procurement Checks
Verify catalog number 5094-IF8 and Series A hardware.,Check module firmware and the applicable Studio 5000 Logix Designer project profile.,Match each channel voltage or current range to its field transmitter.,Confirm the FLEX 5000 terminal base, keyed position and terminal wiring.,Review 15 V backplane and 18 to 32 V sensor/actuator power requirements.,Evaluate system-to-field isolation and the absence of channel-to-channel isolation.,Request clear catalog-label, terminal and packaging photographs before shipment.
Lifecycle Note
Rockwell Automation lists 5094-IF8 with the lifecycle status Active. This status does not guarantee drop-in compatibility; verify Series A hardware, firmware, terminal base, field power, channel ranges, wiring and the Studio 5000 project before replacement.
